3.5mm Female 4-Hole Flange Mount RF Connector – Field Replaceable, 6.35mm Hole Spacing, 0.46mm Pin Diameter

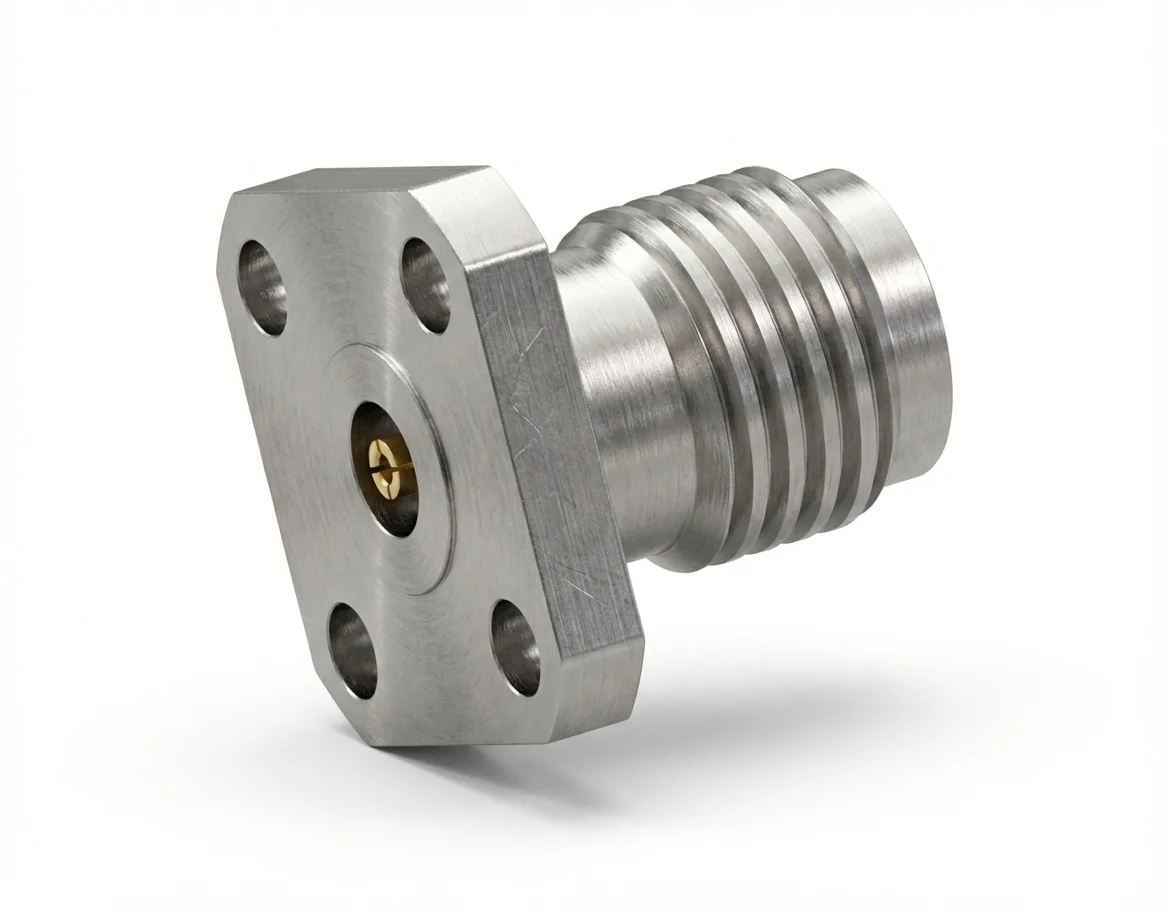

3.5mm Female 4-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-KFD10

The 3.5 mm female 4-hole flange mount RF connector with a 0.46 mm pin and 6.35 mm hole spacing is designed for accurate alignment and low-loss transmission across broadband systems. Its field-replaceable construction provides flexibility for recalibration and maintenance in high-precision environments.

Electrical Efficiency and Bandwidth

Providing 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm female flange connector ensures superior return loss and signal integrity up to 26.5 GHz.

Material and Quality Assurance

Crafted from stainless steel with gold-plated beryllium copper contacts, the connector offers lasting durability and is REACH and RoHS certified for environmentally safe performance.

Applications and Compatibility

Recommended for 4-hole flange mount systems, precision test modules, and broadband instruments where repeatable connection quality is essential.

Mirror Male Connector

Pair with the 3.5 mm male 4-hole flange mount RF connector – Model 3.5-JFD10. Discover related models in our 3.5 mm connector catalog under RF Connectors.
