3.5mm Female 4-Hole Flange Mount RF Connector – Field Replaceable, 5.64mm Hole Spacing, 0.51mm Pin Diameter
| Quantity | Price |
| 1 - 99 | 23,00 $ |
| 100 - 199 | 22,54 $ |
| 200 - 499 | 22,31 $ |
* All Prices are in US Dollars and do not include duties
Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

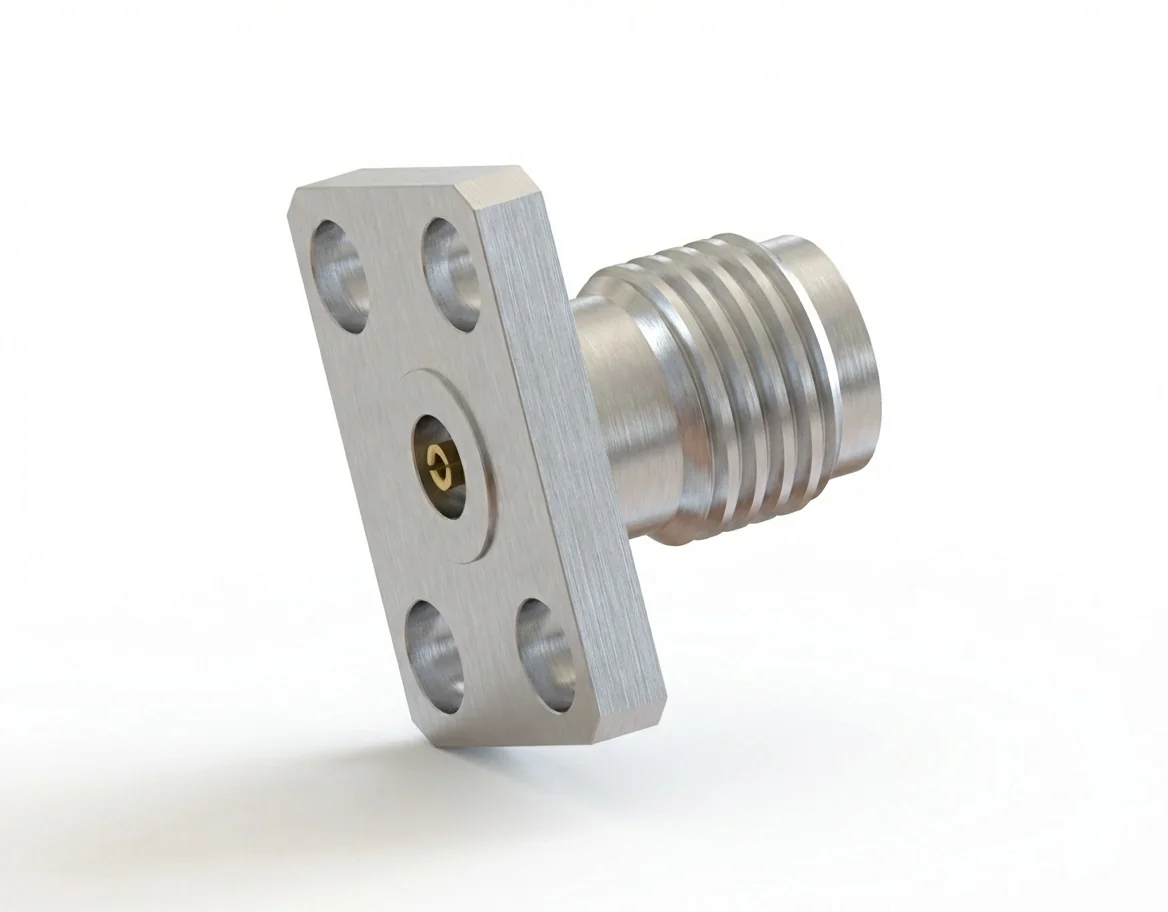

3.5mm Female 4-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-KFD17
The 3.5 mm female 4-hole flange mount RF connector with a 0.51 mm pin and 5.64 mm hole spacing ensures dependable broadband performance and mechanical precision. As a field-replaceable connector, it provides effortless reinstallation and long-term stability in measurement setups.
Electrical Performance and Signal Integrity
Operating at 50 Ω impedance with VSWR ≤ 1.1 and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm female flange connector supports low-loss, high-accuracy signal transmission to 26.5 GHz.
Material Quality and Environmental Safety
Made from stainless steel and gold-plated beryllium copper, it offers exceptional wear resistance and full REACH and RoHS compliance.
Compact Integration for Testing Systems
Suited for 4-hole flange mount laboratory analyzers, calibration networks, and precision measurement devices.
Mirror Male Connector
Use with the 3.5 mm male 4-hole flange mount RF connector – Model 3.5-JFD17. See the 3.5 mm connector range in the RF Connector Catalog.
