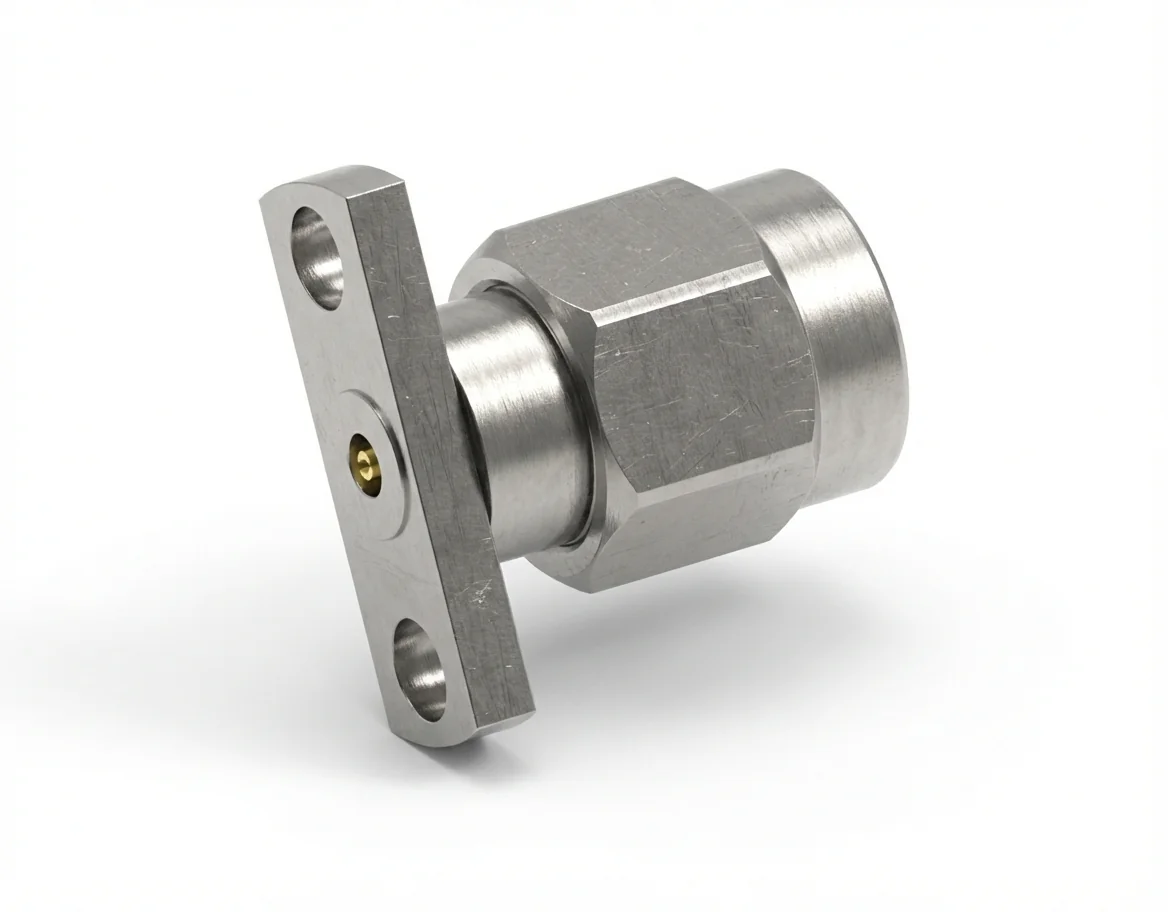

3.5mm Male 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.23mm Pin Diameter

3.5mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-JFD25

The 3.5 mm male 2-hole flange mount RF connector with a 0.23 mm pin and 10.2 mm hole spacing is a compact high-frequency interface for miniaturized analyzers, test systems, and RF enclosures where space efficiency and reliability are vital. Its field-replaceable assembly facilitates effortless maintenance and phase repeatability.

Electrical Characteristics and Measurement Accuracy

Delivering 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5-JFD25 connector ensures low reflection and accurate signal propagation up to 26.5 GHz. It is ideal for portable analyzers and precision microwave setups. See the full 3.5 mm connector category.

Build Integrity and International Compliance

Built with corrosion-resistant stainless steel and gold-plated beryllium copper contacts, this connector offers both strength and electrical stability. Fully REACH and RoHS compliant, it is suitable for use in global testing environments. Discover more in our flange-mount connector portfolio.

Compact Integration and Mounting Reliability

The 2-hole flange mount layout with 10.2 mm spacing enables stable mounting in tight spaces, providing high mechanical integrity even under vibration. Visit the RF connector catalog for similar low-profile, field-replaceable connector designs.

Corresponding Female Connector

Combine the 3.5-JFD25 with its mirror counterpart 3.5 mm female 2-hole flange mount RF connector – Model 3.5-KFD25 to form a high-precision, phase-stable interface between test modules and calibration ports.
