| Quantity | Price |
| 1 - 99 | 22,00 $ |
| 100 - 199 | 21,56 $ |
| 200 - 499 | 21,34 $ |
* All Prices are in US Dollars and do not include duties
Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

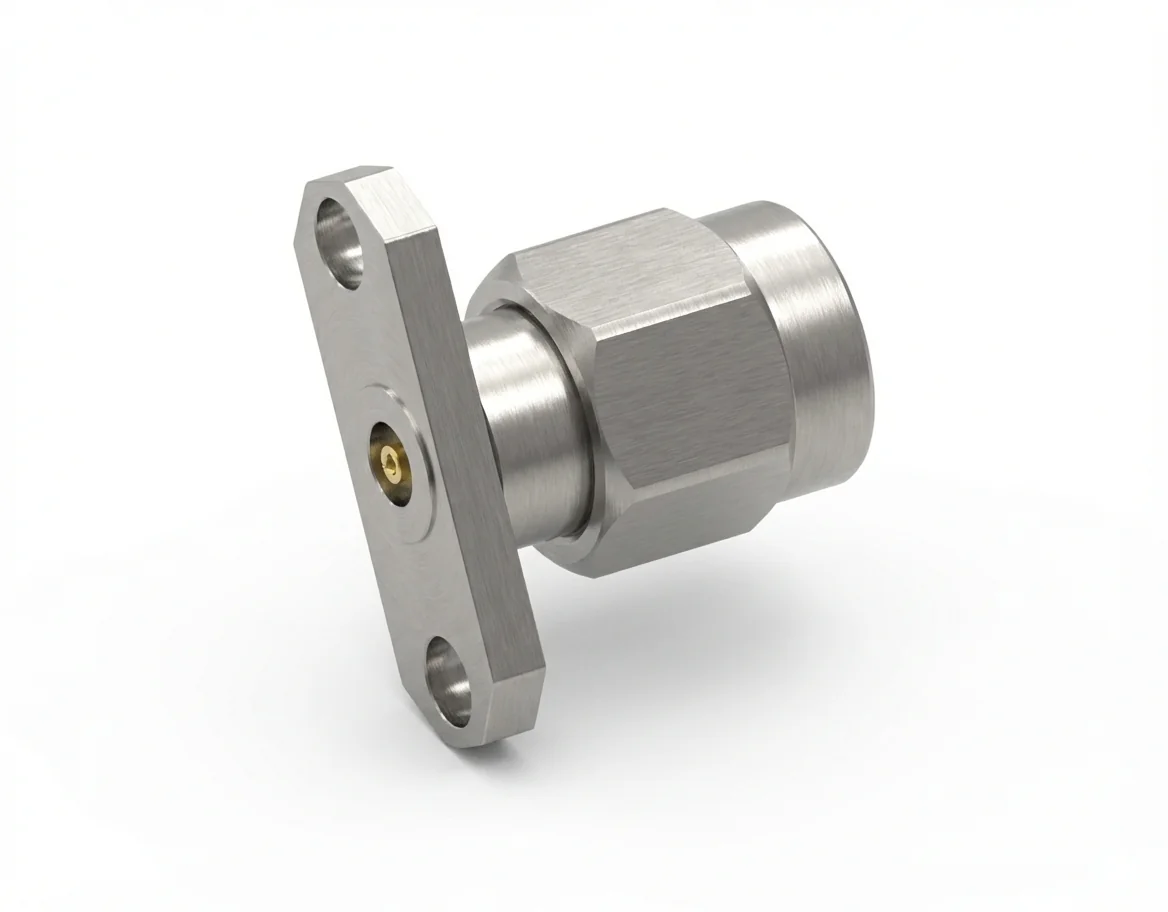

The 3.5 mm male 2-hole flange mount RF connector with a 0.46 mm pin and 12.22 mm hole spacing provides high repeatability for test modules, analyzers, and frequency converters requiring precision field servicing. Its field-replaceable interface enables simple installation and replacement without performance degradation.
Operating with 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5-JFD22 connector delivers excellent return loss and phase control across DC–26.5 GHz. It’s ideal for broadband analyzers and calibration fixtures. Browse similar interfaces within the 3.5 mm connector family.
The connector body is machined from stainless steel and fitted with gold-plated beryllium copper contacts for optimal conductivity and wear resistance. Every model is REACH and RoHS compliant, ensuring international manufacturing compliance. Find additional compatible flange-mount connector types.
The 2-hole flange mount design with 12.22 mm spacing provides a compact, robust attachment method for precision instruments. The connector’s rigid geometry supports repeated calibration cycles. See the RF connector catalog for related compact connectors.
Pair the 3.5-JFD22 with its corresponding 3.5 mm female 2-hole flange mount RF connector – Model 3.5-KFD22 to achieve perfectly matched impedance interfaces in modular testing environments.
