3.5mm Male 2-Hole Flange Mount RF Connector – Field Replaceable, 12.22mm Hole Spacing, 0.51mm Pin Diameter

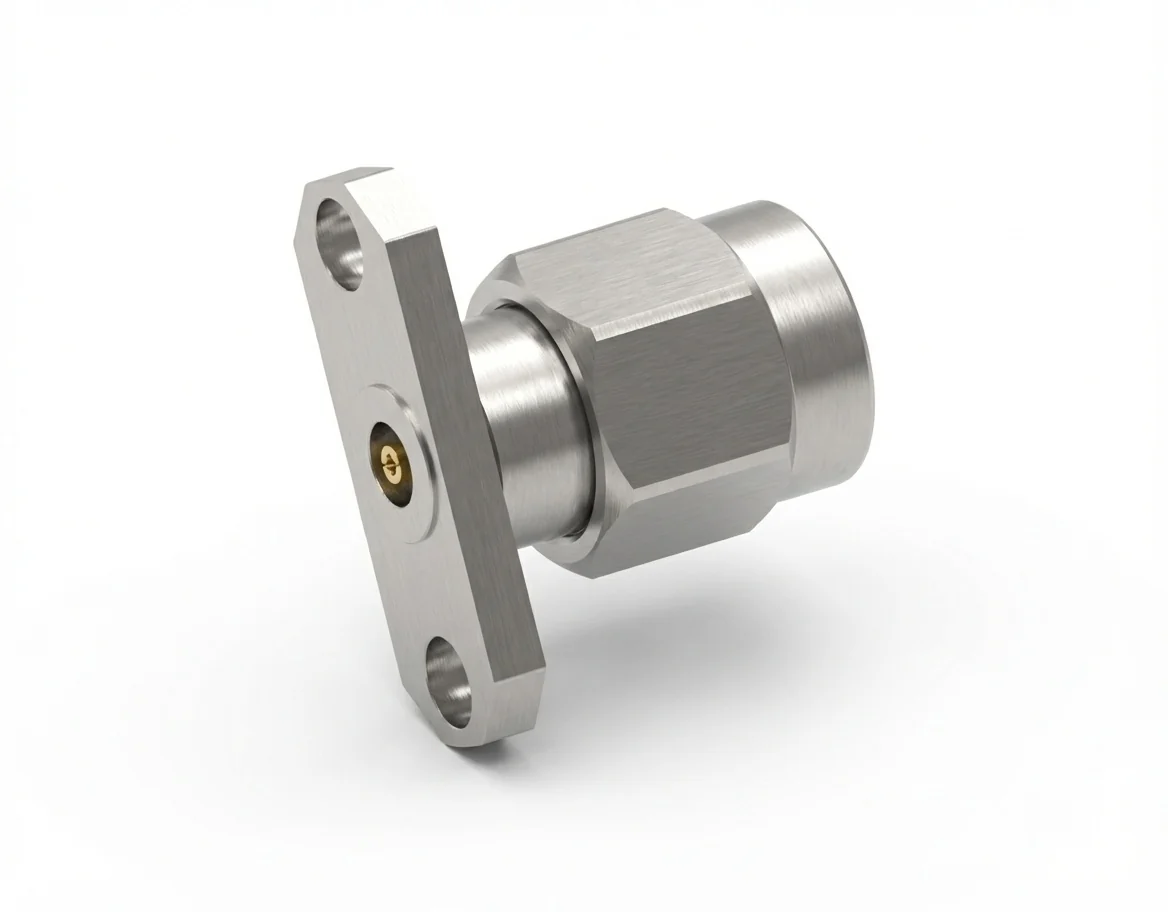

3.5mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-JFD23

The 3.5 mm male 2-hole flange mount RF connector with a 0.51 mm pin and 12.22 mm hole spacing is built for high-frequency measurement modules and precision calibration ports that demand consistent mechanical repeatability. Its field-replaceable mechanism allows fast maintenance and connector swaps with minimal disruption.

Microwave Performance and Impedance Control

Providing 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5-JFD23 connector supports broadband operation up to 26.5 GHz with low return loss. The precision interface ensures signal consistency in metrology and analyzer systems. Explore related models in the 3.5 mm connector collection.

Materials, Finish, and Regulatory Certification

Machined from high-quality stainless steel and equipped with gold-plated beryllium copper contacts, the connector offers durability and stable electrical properties. It meets full REACH and RoHS regulatory standards. Additional product variants can be found among our flange-mount connectors.

Panel Compatibility and Integration

The 2-hole flange mount footprint (12.22 mm spacing) ensures a reliable, vibration-resistant fit within compact enclosures and analyzer panels. The secure mounting guarantees repeatable mechanical positioning. Explore the complete RF connector catalog for similar precision components.

Complementary Female Interface

Pair the 3.5-JFD23 with the 3.5 mm female 2-hole flange mount RF connector – Model 3.5-KFD23 for stable, low-loss coupling in laboratory and production-grade testing systems.
