3.5mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 6.35mm Hole Spacing, 0.23mm Pin Diameter

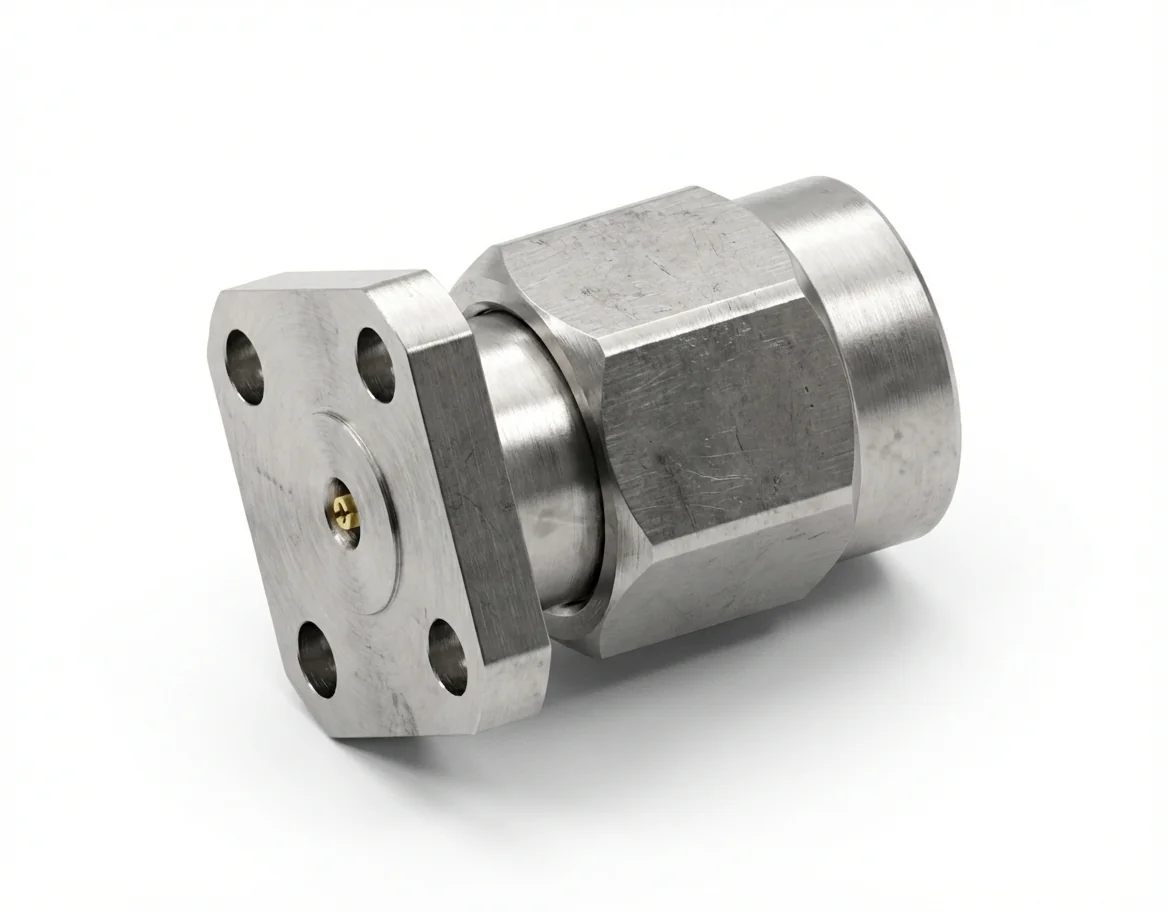

3.5mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-JFD7

The 3.5 mm male 4-hole flange mount RF connector with a 0.23 mm pin and 6.35 mm hole spacing is designed for laboratory and production environments where stability and repeatability are critical. The field-replaceable mechanism enables efficient component swapping without degrading signal integrity up to 26.5 GHz.

Broadband Electrical Performance

Rated at 50 Ω impedance, with VSWR ≤ 1.1 and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm male connector delivers excellent return loss and low attenuation across the microwave spectrum.

Mechanical Integrity and Materials

Constructed from stainless steel and gold-plated beryllium copper, it provides superior durability and is fully REACH and RoHS compliant.

Optimized Mounting and Applications

Best for 4-hole flange mount configurations in analyzers and instrumentation requiring robust field-replaceable connections.

Mirror Female Connector

Pair with the 3.5 mm female 4-hole flange mount RF connector – Model 3.5-KFD7. See the complete 3.5 mm connector family in the RF Connector Catalog.
