3.5mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 8.64mm Hole Spacing, 0.38mm Pin Diameter

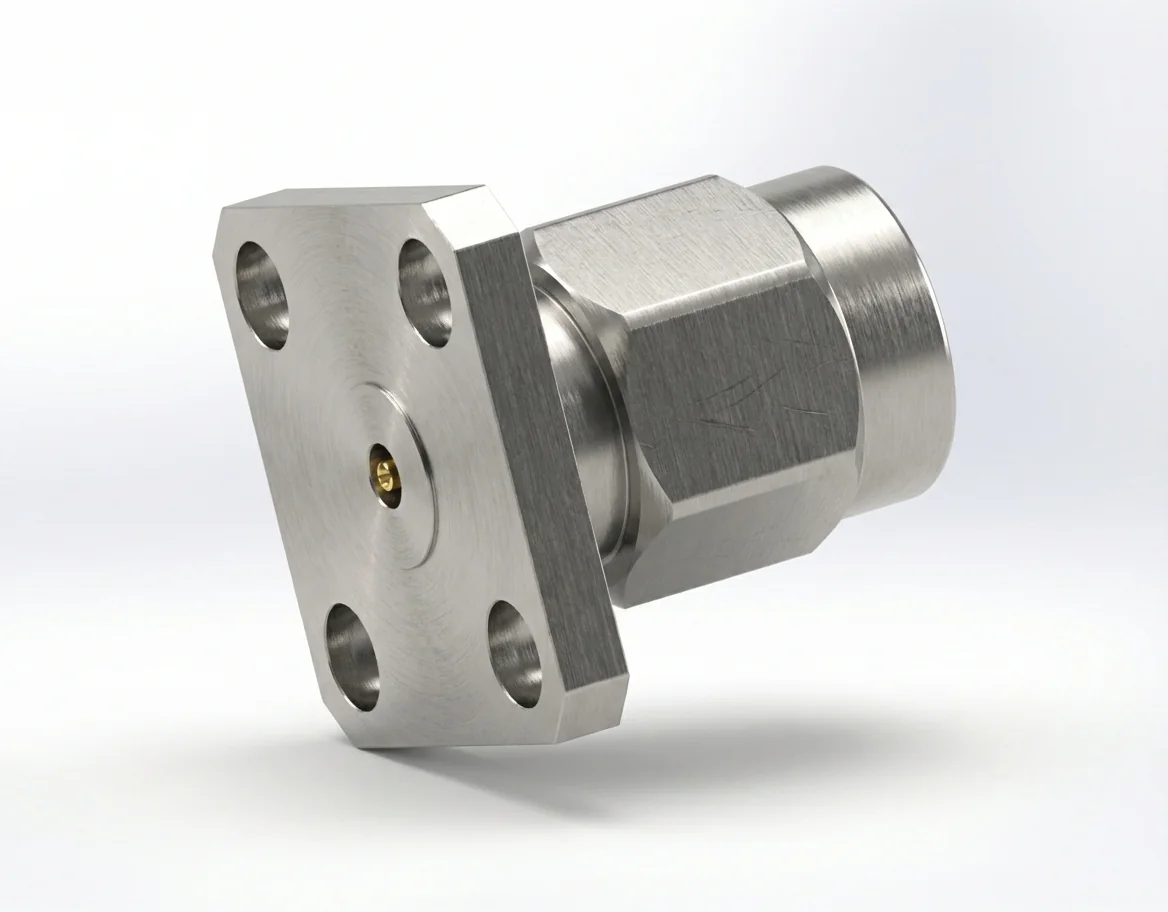

3.5mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-JFD3

The 3.5 mm male 4-hole flange mount RF connector with a 0.38 mm pin and 8.64 mm spacing delivers precise electrical performance for high-density RF modules. This field-replaceable design provides easy replacement without sacrificing mechanical accuracy or broadband stability through 26.5 GHz.

Electrical Specifications and Accuracy

Rated at 50 Ω impedance, with VSWR ≤ 1.1 and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm male connector minimizes reflection and ensures low-loss operation.

Build Quality and Compliance

Made from stainless steel and gold-plated beryllium copper contacts for maximum durability and compliance with REACH and RoHS directives.

Integration and Applications

Perfect for 4-hole flange mount RF test assemblies and precision measurement setups that demand repeatable interface performance.

Mirror Female Connector

Compatible with the 3.5 mm female 4-hole flange mount RF connector – Model 3.5-KFD3. Browse our 3.5 mm RF connector collection inside the RF Connector Catalog.
