3.5mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 5.64mm Hole Spacing, 0.3mm Pin Diameter

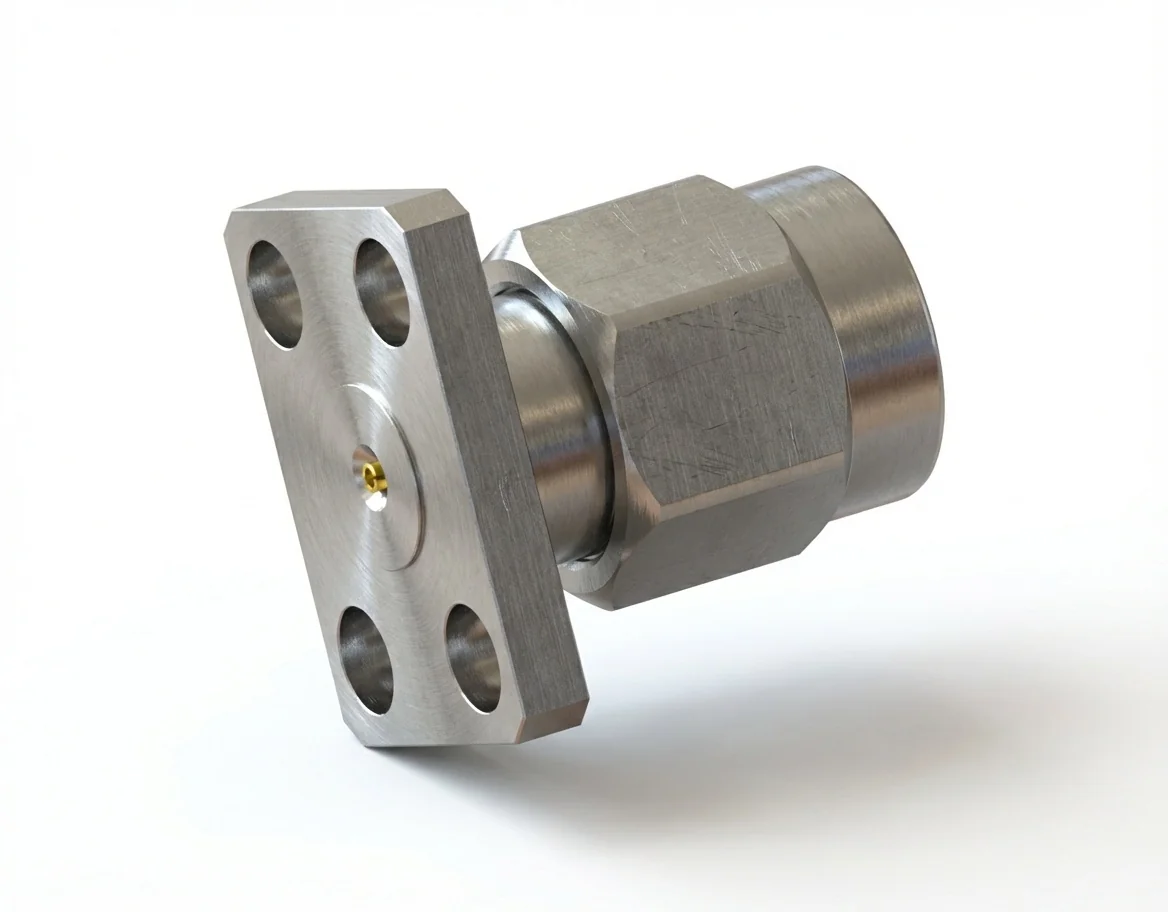

3.5mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-JFD14

The 3.5 mm male 4-hole flange mount RF connector with a 0.3 mm pin and 5.64 mm hole spacing delivers robust electrical stability for broadband analyzers and calibration instruments. Its field-replaceable design enhances serviceability and ensures low-loss operation across repeated test cycles.

Frequency Response and Electrical Precision

Providing 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5-JFD14 connector ensures minimal reflection and dependable broadband accuracy up to 26.5 GHz. See other precision options within our 3.5 mm connector series.

Corrosion Resistance and Certification

Built from passivated stainless steel and gold-plated beryllium copper, this connector offers durability and corrosion protection. Every component is REACH and RoHS compliant. Browse the flange-mount connector collection for related designs.

Mechanical Engineering and Mounting Stability

The 5.64 mm 4-hole flange mount geometry supports precise alignment and secure fastening in analyzer panels and RF assemblies. The stable design minimizes torque and maintains consistent contact. Discover more on our RF connector catalog.

Matching Female Version

Use together with the 3.5 mm female 4-hole flange mount RF connector – Model 3.5-KFD14 for accurate impedance matching and mechanical compatibility.
