3.5mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 8.64mm Hole Spacing, 0.3mm Pin Diameter

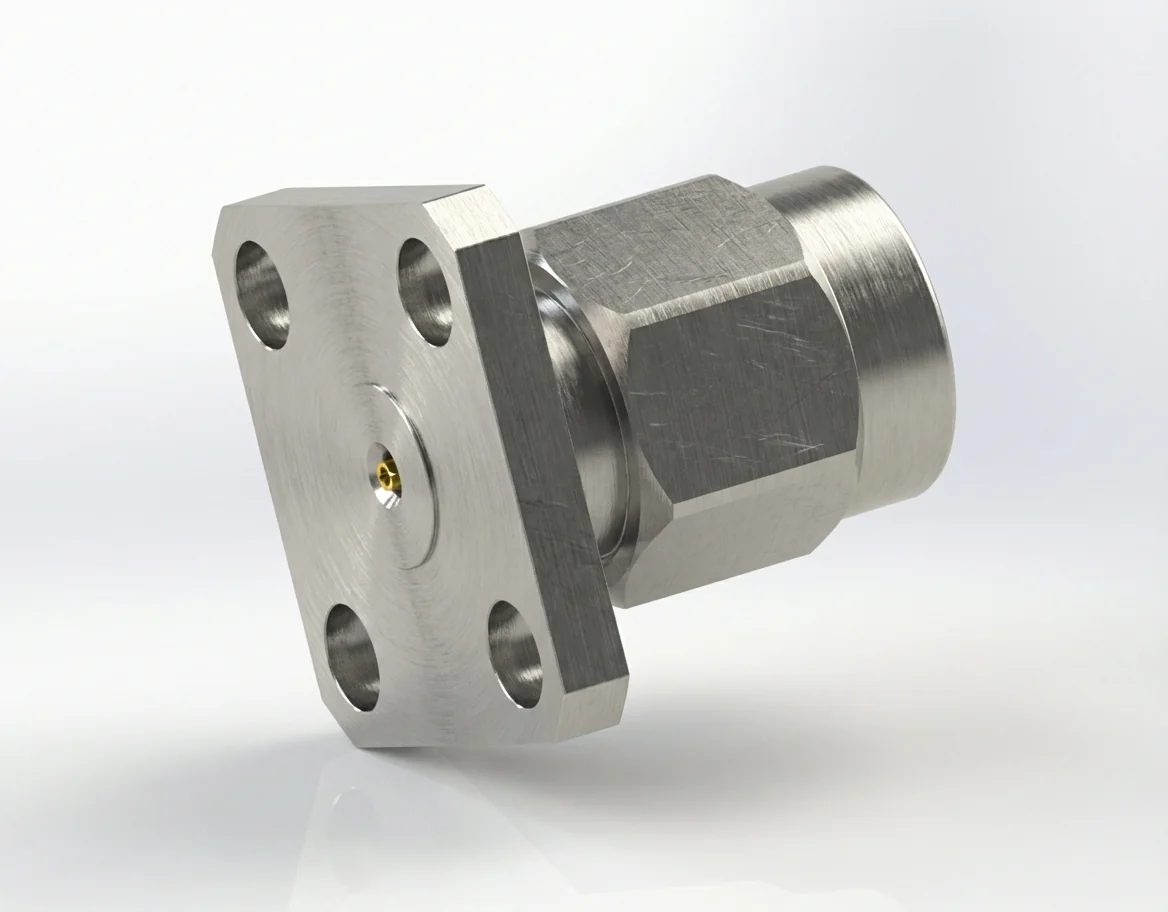

3.5mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-JFD2

The 3.5 mm male 4-hole flange mount RF connector with a 0.30 mm pin and 8.64 mm hole spacing is precision-machined to ensure consistent signal stability for broadband measurement environments up to 26.5 GHz. The field-replaceable interface simplifies testing and maintenance in high-frequency modules.

Electrical Consistency and Low Loss

With 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, this 3.5 mm male connector delivers superior signal return and phase stability.

Mechanical and Environmental Strength

Constructed from stainless steel and gold-plated beryllium copper contacts, it is highly durable and complies with REACH and RoHS standards.

Optimized for Compact Assemblies

Ideal for 4-hole flange mount installations that require precise mechanical alignment and repeatable electrical contact during testing and verification.

Matching Female Connector

Use alongside the 3.5 mm female 4-hole flange mount RF connector – Model 3.5-KF
