3.5mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 6.35mm Hole Spacing, 0.46mm Pin Diameter

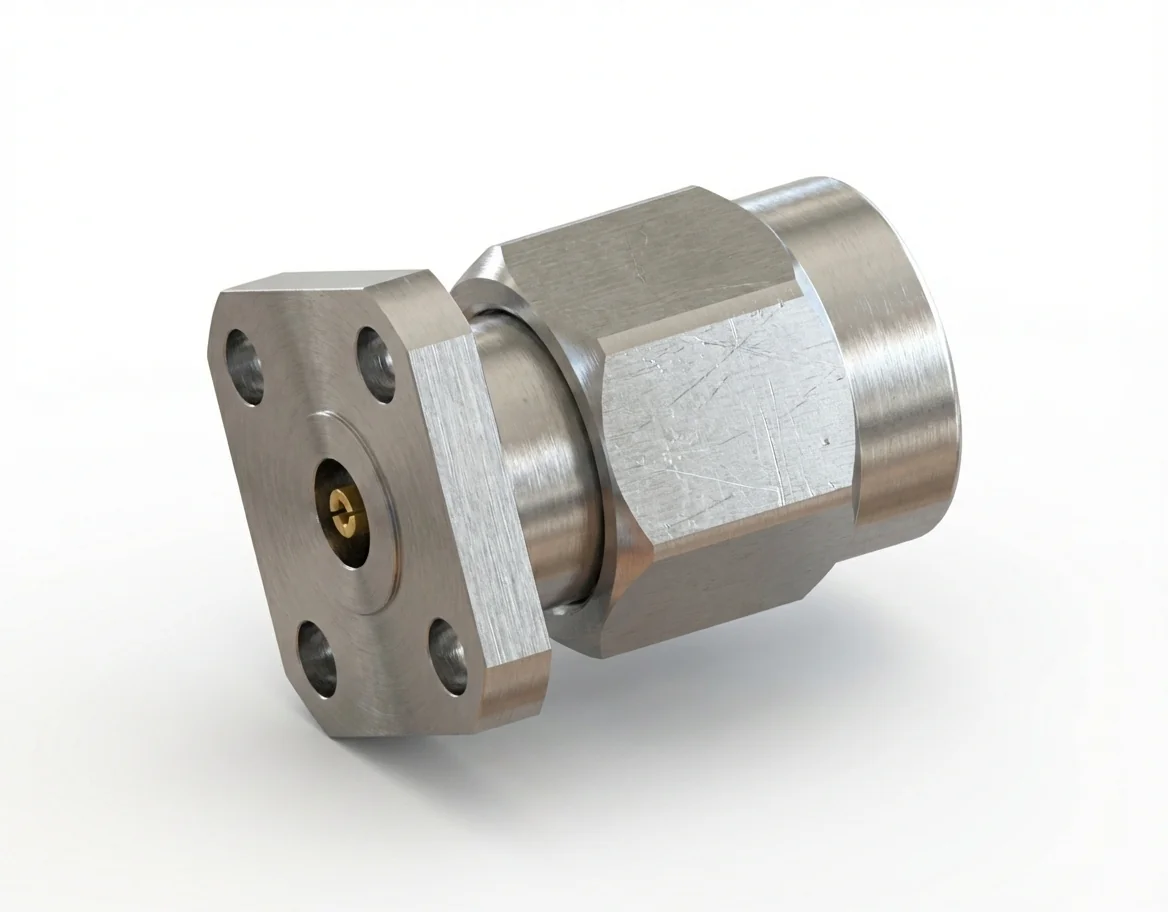

3.5mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-JFD10

The 3.5 mm male 4-hole flange mount RF connector with a 0.46 mm pin and 6.35 mm hole spacing is engineered for precision RF testing and modular instrumentation. Its field-replaceable architecture simplifies re-calibration and reduces downtime while maintaining excellent RF stability to 26.5 GHz.

Electrical Specification

With 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm male connector provides consistent signal quality and low reflection in microwave applications.

Mechanical Design and Compliance

Machined from stainless steel and fitted with gold-plated beryllium copper contacts, it is mechanically robust and fully REACH and RoHS certified.

Assembly Integration

Perfect for 4-hole flange mount assemblies in test modules and network analyzers requiring repeatable and accurate electrical contact.

Complementary Female Connector

Use with the 3.5 mm female 4-hole flange mount RF connector – Model 3.5-KFD10. Find the entire 3.5 mm connector selection in our RF Connector Catalog.
