3.5mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 8.64mm Hole Spacing, 0.46mm Pin Diameter

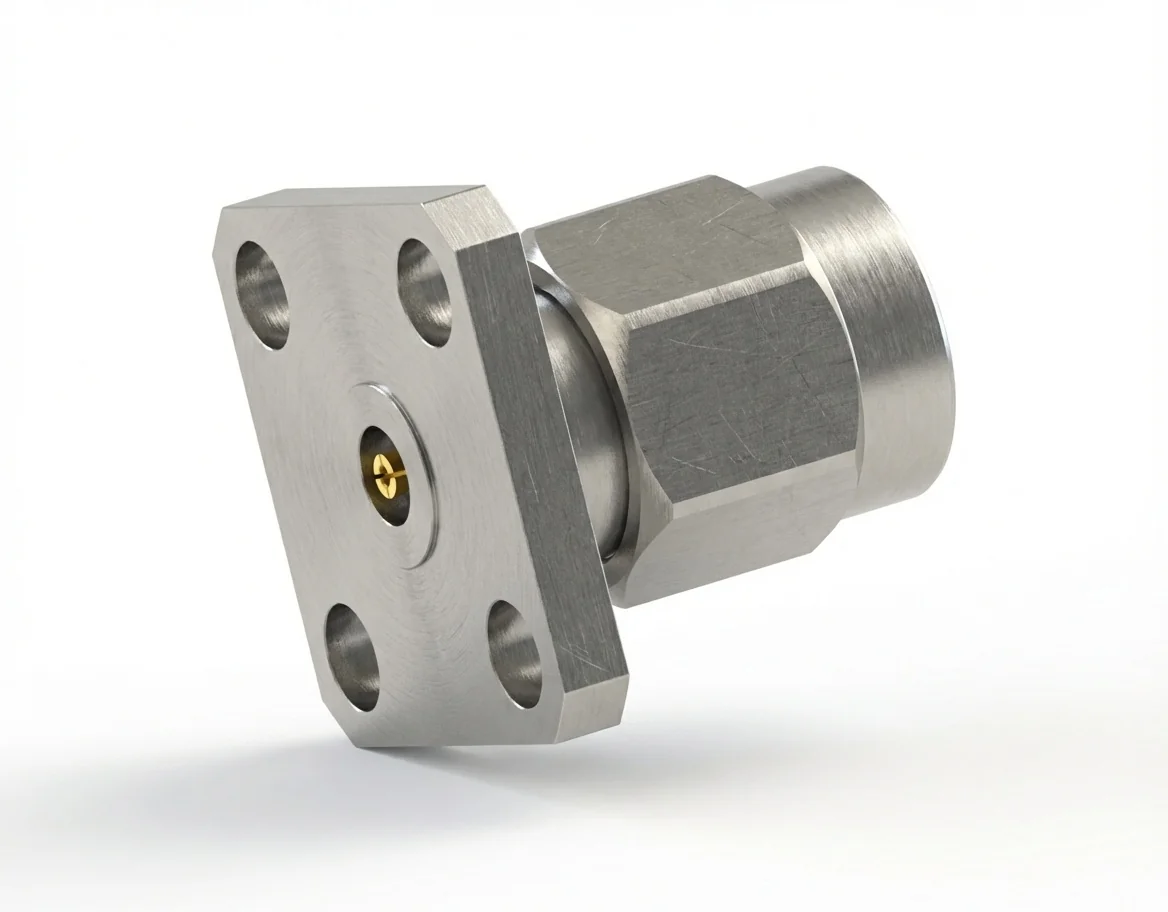

3.5mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-JFD4

The 3.5 mm male 4-hole flange mount RF connector with a 0.46 mm pin and 8.64 mm hole spacing is engineered for broadband applications requiring reliable field replacement and high precision up to 26.5 GHz. Its field-replaceable mechanism offers fast maintenance and tight electrical repeatability.

Superior Electrical Control

With 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm male connector ensures low signal reflection and high return-loss consistency for RF testing.

Material Composition and Compliance

Built from stainless steel and gold-plated beryllium copper, it provides long-term durability and complies with REACH and RoHS environmental standards.

Mechanical Integration

Optimized for 4-hole flange mount installations in calibration tools and test analyzers requiring repeatable connections under mechanical stress.

Complementary Female Connector

Use with the 3.5 mm female 4-hole flange mount RF connector – Model 3.5-KFD4. See more in our 3.5 mm RF connector range within the RF Connector Catalog.
