3.5mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 8.64mm Hole Spacing, 0.51mm Pin Diameter

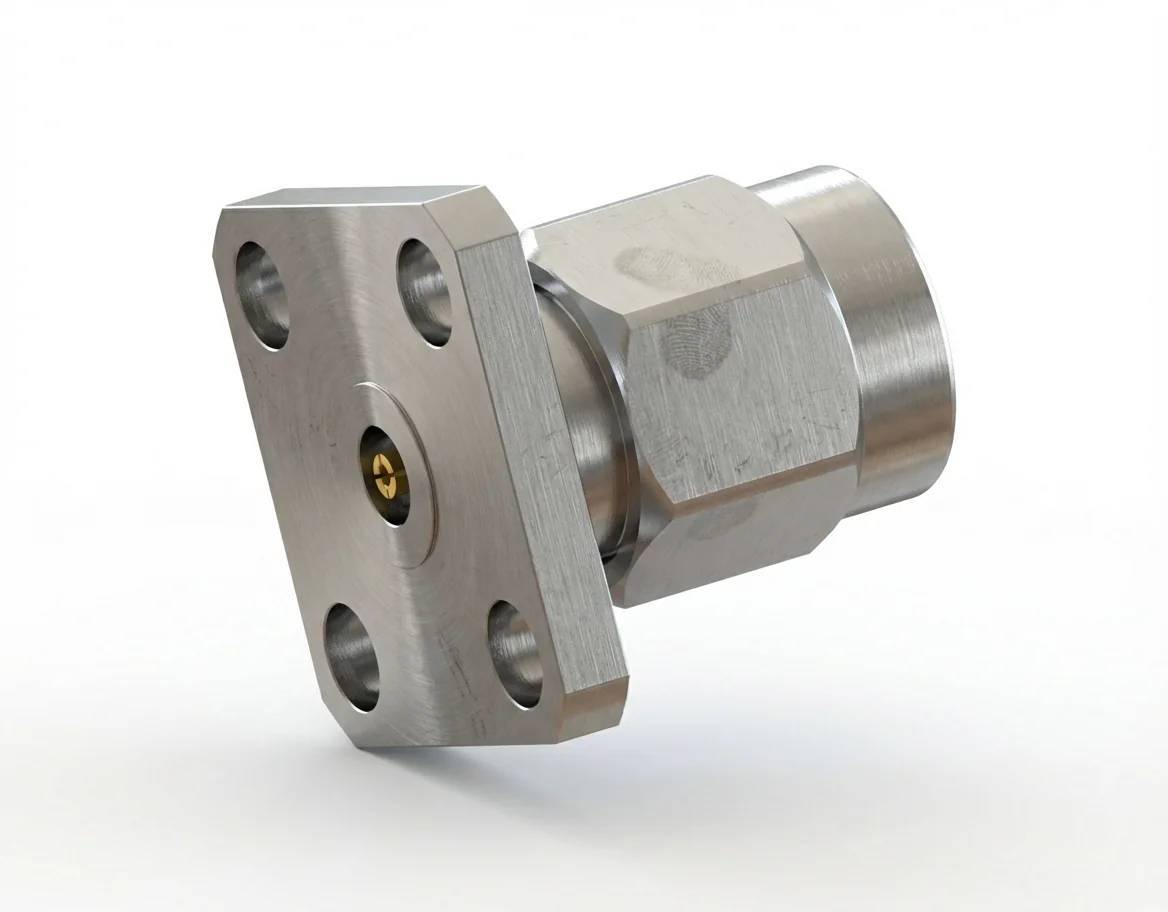

3.5mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-JFD5

The 3.5 mm male 4-hole flange mount RF connector with a 0.51 mm pin and 8.64 mm hole spacing is precision-designed for broadband systems and laboratory test modules. This field-replaceable configuration offers excellent mechanical stability and serviceability for microwave applications up to 26.5 GHz.

Electrical Specifications

Featuring 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm male connector guarantees accurate signal transfer and low insertion loss throughout the broadband range.

Build Quality and Compliance

Manufactured from stainless steel with gold-plated beryllium copper contacts, it meets stringent REACH and RoHS requirements and delivers long-term mechanical resilience.

Applications and Integration

Ideal for 4-hole flange mount analyzers and testing assemblies demanding precise re-mating capability and broadband consistency.

Mirror Female Connector

Use alongside the 3.5 mm female 4-hole flange mount RF connector – Model 3.5-KFD5. Explore more options in the 3.5 mm RF connector range inside our RF Connector Catal
