3.5mm Male 4-Hole Flange Mount RF Connector – Field Replaceable, 8.64mm Hole Spacing, 0.9mm Pin Diameter

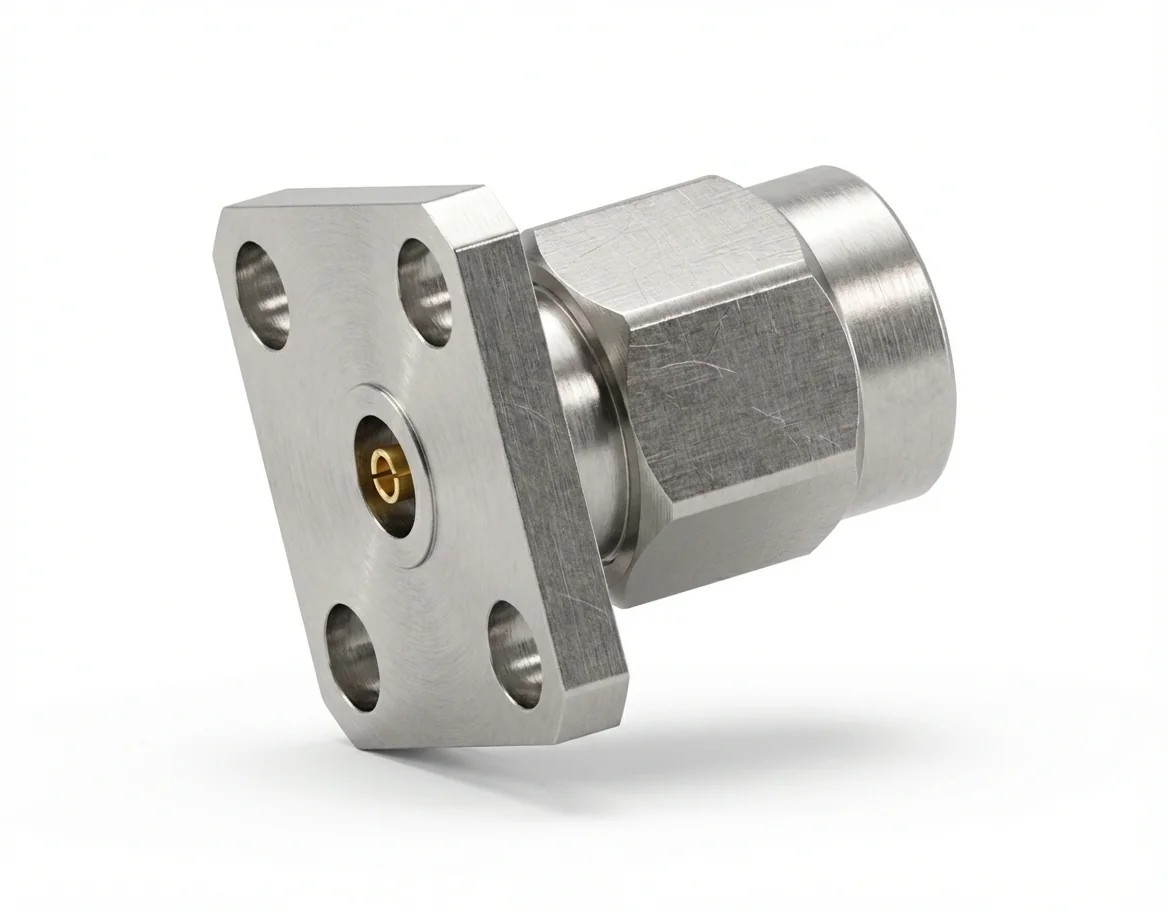

3.5mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-JFD6

The 3.5 mm male 4-hole flange mount RF connector with a 0.9 mm pin and 8.64 mm hole spacing delivers broadband precision and excellent mechanical reliability. Designed as a field-replaceable connector, it ensures consistent performance up to 26.5 GHz with minimal downtime during maintenance or testing.

Electrical Characteristics

Operating at 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm male connector ensures low signal reflection and stable transmission for high-frequency applications.

Mechanical Strength and Compliance

Fabricated from stainless steel with gold-plated beryllium copper contacts, it offers excellent durability and full REACH and RoHS compliance.

Mounting Precision and Usage

Suited for 4-hole flange mount assemblies used in microwave modules and testing platforms that require high-density connectivity and precise alignment.

Matching Female Connector

Compatible with the 3.5 mm female 4-hole flange mount RF connector – Model 3.5-KFD6. Explore the full 3.5 mm RF connector range in the RF Connector Catalog.
