BMA Male 2-Hole Flange Mount RF Connector – Solder Attachment, 9.4mm Hole Spacing, 0.3mm Pin Diameter, Stub Terminal

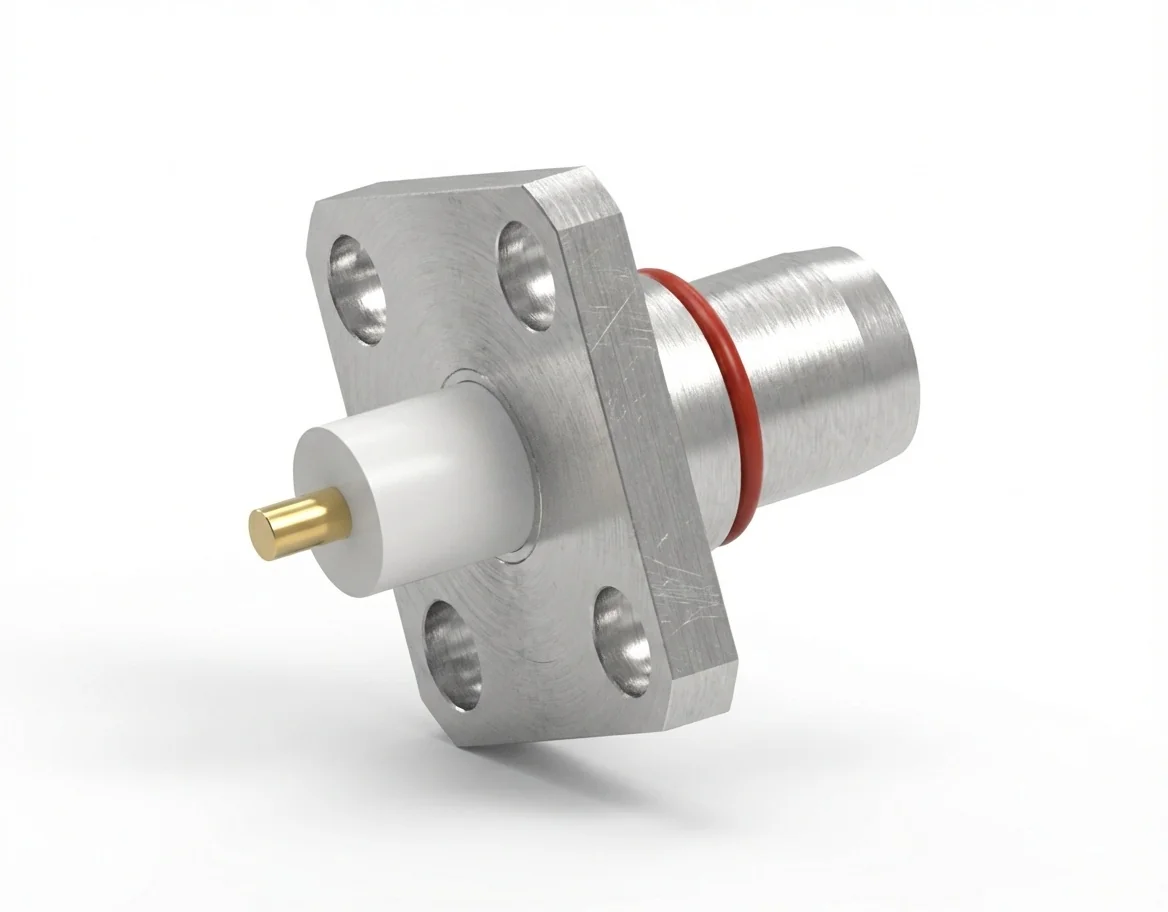

BMA Male 2-Hole Flange Mount RF Connector – Solder Attachment, Model BMA-JFD1

The BMA male 2-hole flange mount RF connector with a 0.3 mm pin and 9.4 mm hole spacing is a precision-engineered solution for solder attachment in compact, high-frequency systems. Operating from DC to 18 GHz at 50 Ω impedance, this connector ensures stable electrical contact and superior repeatability for modular RF assemblies.

Reliable Electrical Characteristics

With VSWR ≤ 1.1 and insertion loss ≤ 0.06 √F(GHz) dB, the BMA male solder flange connector provides excellent impedance control and minimal return loss. The 0.3 mm pin diameter ensures precise alignment and consistent performance during high-frequency operation.

Mechanical Design and Compliance

Machined from stainless steel with gold-plated beryllium copper inner contacts, the BMA male connector combines corrosion resistance, mechanical strength, and electrical reliability. Fully REACH and RoHS compliant, it guarantees environmental safety and long-term durability under demanding RF conditions.

Mounting and Integration Applications

The 9.4 mm 2-hole flange structure allows secure panel or module mounting in 2-hole flange mount RF systems used in satellite communications, radar modules, and high-speed signal analyzers. Its solder attachment ensures a robust and low-resistance electrical joint.

Explore BMA Connector Solutions

Mechanc’s BMA RF connector line features solder, field-replaceable, and PCB mount options tailored for high-frequency precision use. Browse our full RF Connector Catalog to discover compatible models and assemblies.
