N Female 4-Hole Flange Mount RF Connector – Field Replaceable, 12.7mm Hole Spacing, 0.38mm Pin Diameter

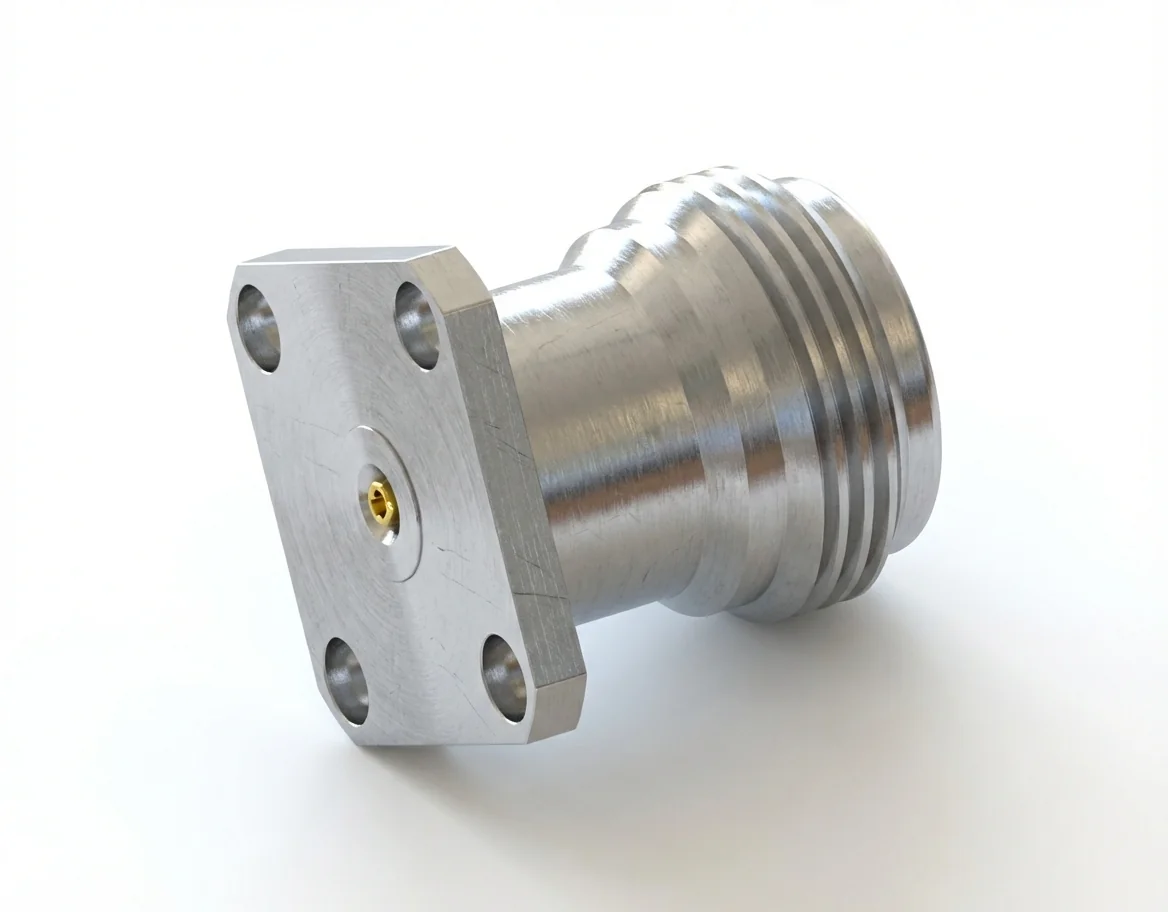

N Female 4-Hole Flange Mount Field-Replaceable RF Connector – Model N-KFD5

The N female 4-hole flange mount RF connector with a 0.38 mm pin and 12.7 mm hole spacing is optimized for compact, precision assemblies. Supporting 50 Ω impedance and DC–18 GHz operation, this field-replaceable connector combines miniature dimensions with reliable broadband performance.

Accurate, Low-Loss Performance

With VSWR ≤ 1.08 and insertion loss < 0.06 √F(GHz) dB, the N female connector ensures consistent return-loss control and stable impedance across wideband measurement environments.

Material Quality and Compliance

Manufactured from stainless steel and gold-plated beryllium copper, the N female flange connector offers corrosion resistance, long-term durability, and thermal stability. Fully REACH and RoHS compliant, it performs reliably between −55 °C and +165 °C.

Compact Mounting Applications

The reduced 12.7 mm flange pattern supports integration in 4-hole flange mount connectors used in portable analyzers, signal conditioning modules, and high-density test panels.

Precision Engineering and Customization

Mechanc produces specialized N-type RF connectors with customizable flange spacing and pin geometry to meet diverse system requirements. Visit our RF Connector Catalog to explore the complete range.
