N Female 4-Hole Flange Mount RF Connector – Field Replaceable, 8.64mm Hole Spacing, 0.38mm Pin Diameter

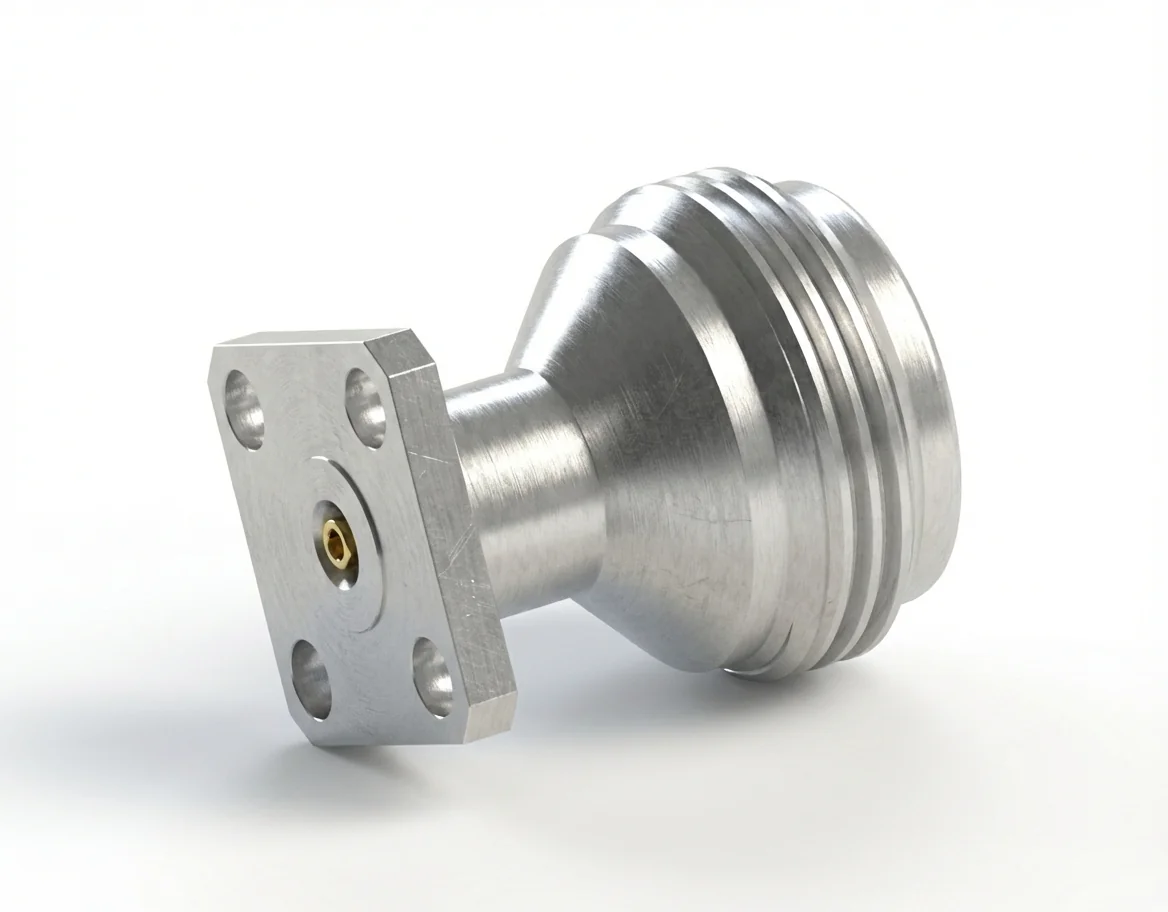

N Female 4-Hole Flange Mount Field-Replaceable RF Connector – Model N-KFD9

The N female 4-hole flange mount RF connector with a 0.38 mm pin and 8.64 mm hole spacing combines compact dimensions with high electrical precision. Rated for 50 Ω impedance and DC–18 GHz operation, this field-replaceable connector provides stable, low-loss performance for compact measurement assemblies.

Low Reflection and High Accuracy

Offering VSWR ≤ 1.08 and insertion loss < 0.06 √F(GHz) dB, the N female connector ensures superior broadband signal fidelity and reliable impedance control.

Material Durability and Compliance

Crafted from stainless steel with gold-plated beryllium copper contacts, the N female flange connector maintains structural strength and conductivity over time. It is REACH and RoHS compliant and performs reliably between −55 °C and +165 °C.

Applications in Compact RF Systems

The 8.64 mm flange configuration allows easy integration with 4-hole flange mount connectors used in precision analyzers and high-density test modules.

Precision RF Customization

Mechanc’s line of N-type RF connectors includes fine-tolerance options for laboratory and industrial use. Explore our RF Connector Catalog for more designs.
