N Female 4-Hole Flange Mount RF Connector – Field Replaceable, 8.64mm Hole Spacing, 0.46mm Pin Diameter

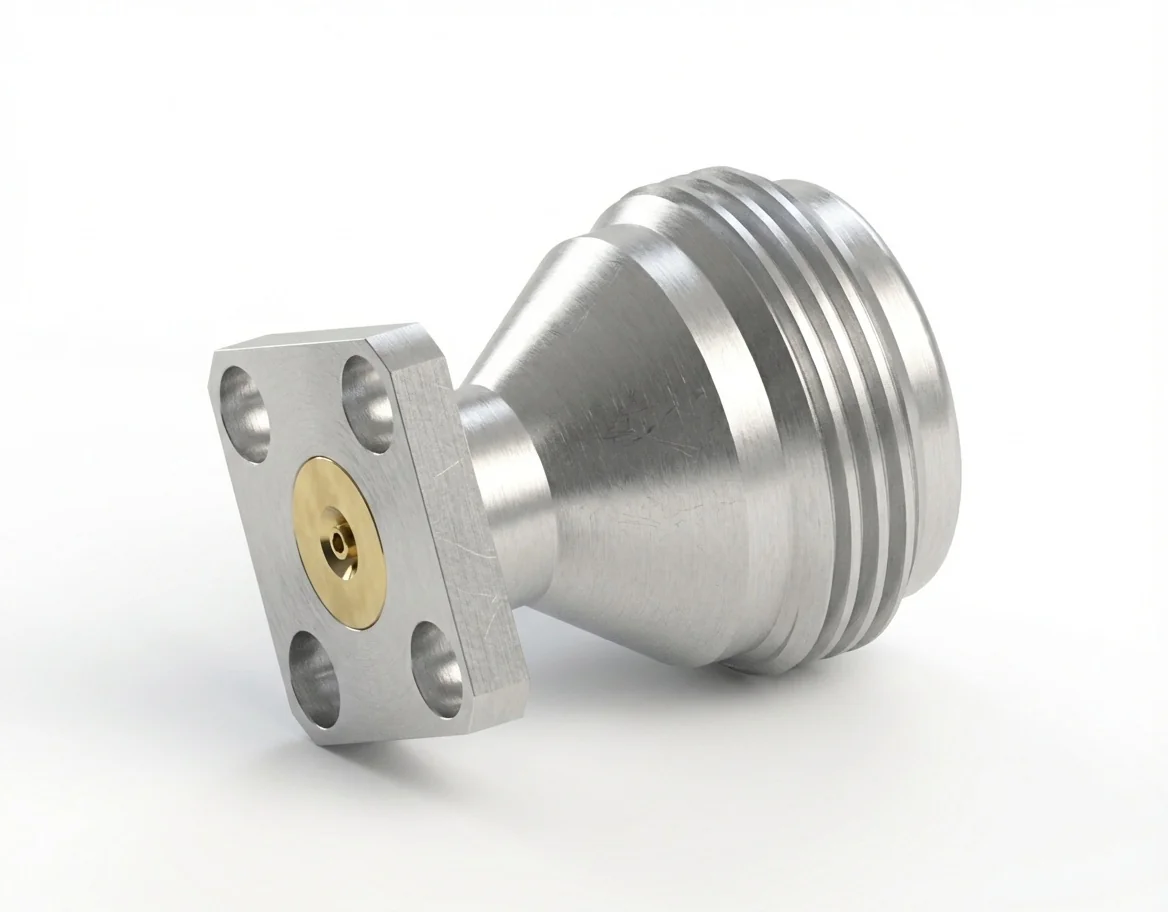

N Female 4-Hole Flange Mount Field-Replaceable RF Connector – Model N-KFD10

The N female 4-hole flange mount RF connector with a 0.46 mm pin and 8.64 mm hole spacing delivers robust performance in confined, high-precision RF environments. Designed for 50 Ω impedance and operation up to 18 GHz, this field-replaceable connector ensures excellent electrical stability and repeatable performance.

Optimized Electrical Performance

With VSWR ≤ 1.08 and insertion loss < 0.06 √F(GHz) dB, the N female connector guarantees minimal return loss and consistent impedance matching for broadband applications.

Reliable Construction and Compliance

Manufactured from stainless steel with gold-plated beryllium copper contacts, the N female flange connector offers corrosion resistance and superior conductivity. Fully REACH and RoHS compliant, it maintains stable operation between −55 °C and +165 °C.

Compact Integration Applications

The 8.64 mm flange layout supports secure installation in 4-hole flange mount RF connectors used in test analyzers, signal calibration modules, and precision instrumentation setups.

Tailored RF Engineering

Mechanc provides advanced N-type RF connectors with customizable pin diameters, flange sizes, and materials. Visit our RF Connector Catalog to find compatible high-frequency solutions.
