N Female 4-Hole Flange Mount RF Connector – Field Replaceable, 12.7mm Hole Spacing, 0.46mm Pin Diameter

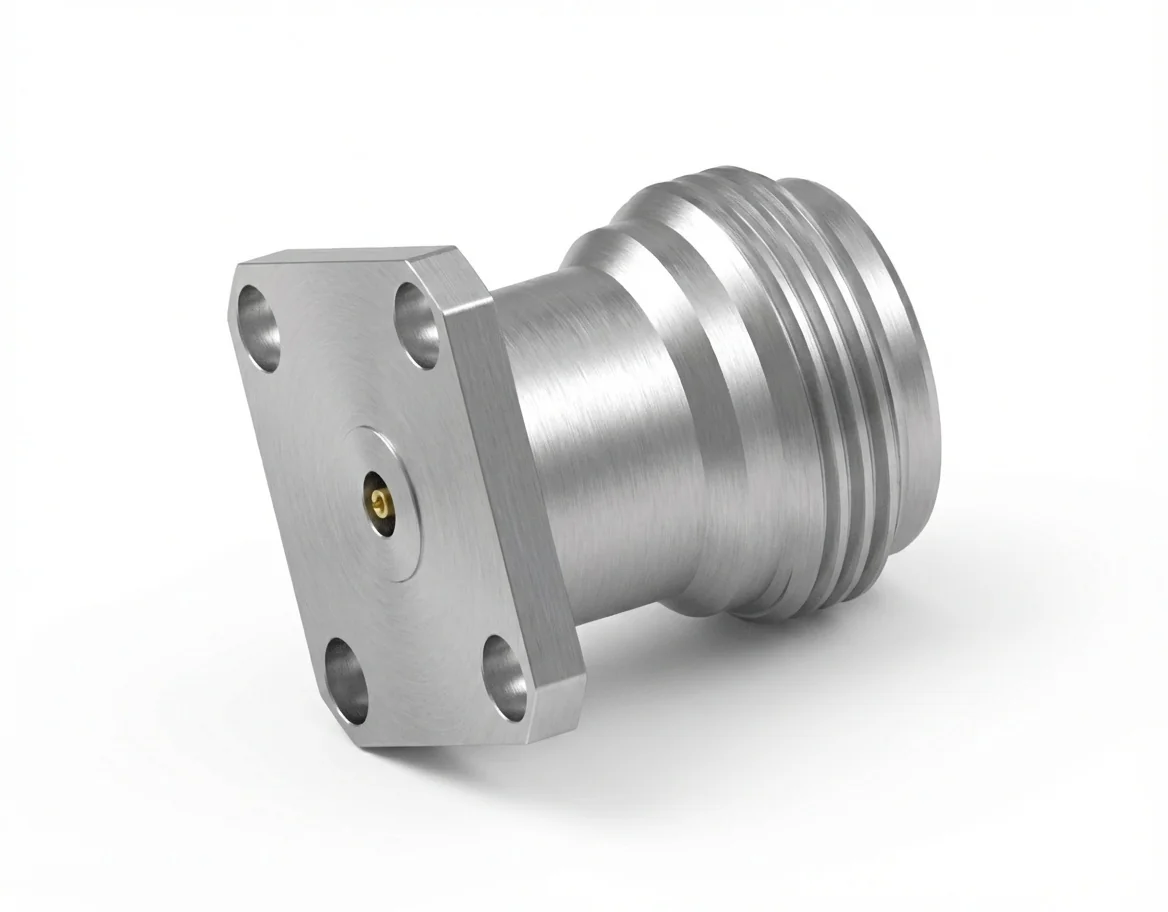

N Female 4-Hole Flange Mount Field-Replaceable RF Connector – Model N-KFD6

The N female 4-hole flange mount RF connector with a 0.46 mm pin and 12.7 mm hole spacing is designed for compact high-performance test environments requiring both power stability and precision. Supporting 50 Ω impedance and DC–18 GHz operation, this field-replaceable connector ensures dependable broadband signal transmission.

Reliable Electrical Stability

Delivering VSWR ≤ 1.08 and insertion loss < 0.06 √F(GHz) dB, the N female connector provides consistent impedance matching, maintaining low reflection across the full frequency range.

Durable Build and Compliance

Manufactured from stainless steel with gold-plated beryllium copper contacts, the N female flange connector guarantees long-term conductivity and corrosion resistance. Fully REACH and RoHS compliant, it performs reliably in operating temperatures from −55 °C to +165 °C.

Applications in Compact RF Systems

The 12.7 mm flange spacing allows integration within 4-hole flange mount assemblies used in analyzers, radar devices, and signal conditioning modules.

Customized Engineering Solutions

Mechanc’s N-type RF connectors include custom configurations for flange spacing, pin geometry, and finish. Discover the full range in our RF Connector Catalog.
