N Female 4-Hole Flange Mount RF Connector – Field Replaceable, 8.64mm Hole Spacing, 0.51mm Pin Diameter

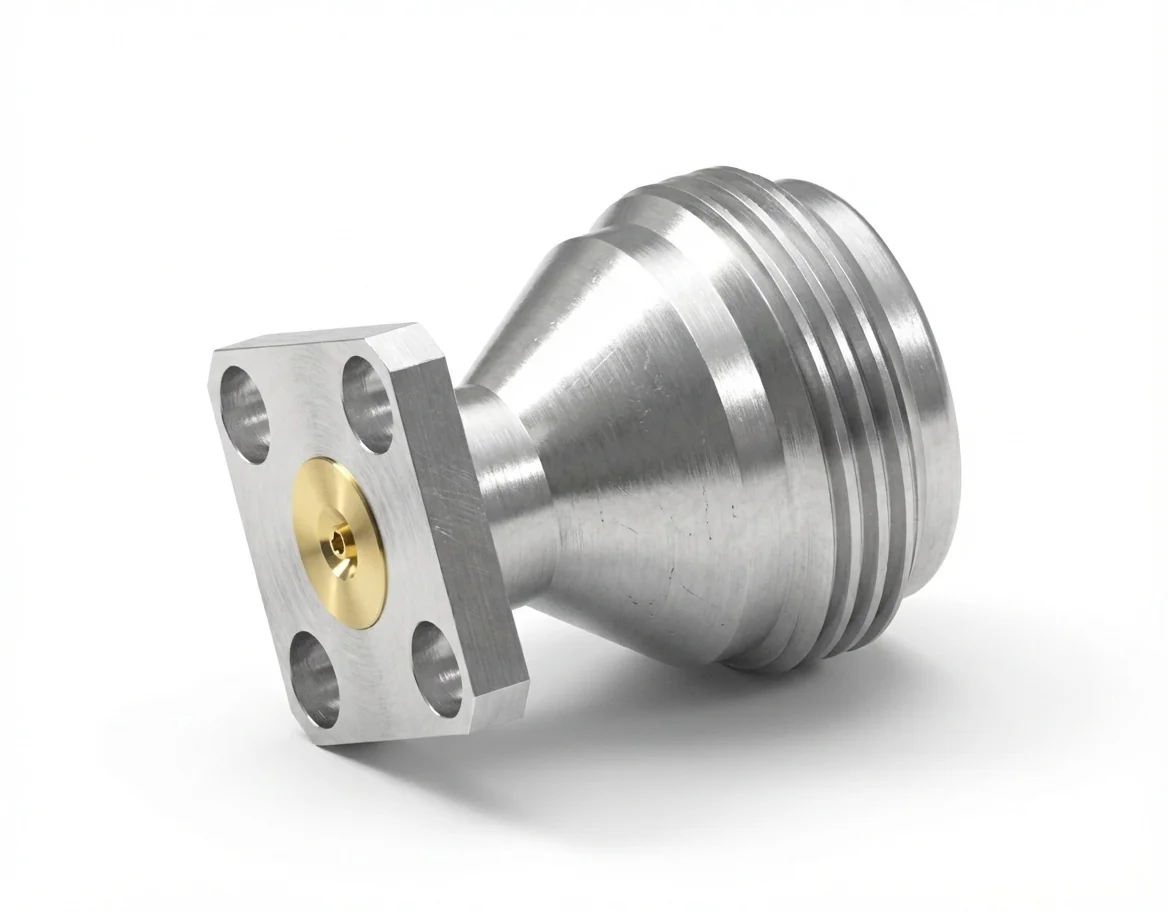

N Female 4-Hole Flange Mount Field-Replaceable RF Connector – Model N-KFD11

The N female 4-hole flange mount RF connector with a 0.51 mm pin and 8.64 mm hole spacing provides precise electrical alignment and robust mechanical performance in compact RF assemblies. Operating from DC to 18 GHz with a 50 Ω impedance, this field-replaceable connector ensures consistent, low-loss connectivity across broadband test and communication systems.

Stable Electrical Characteristics

Delivering VSWR ≤ 1.08 and insertion loss < 0.06 √F(GHz) dB, the N female connector minimizes reflection while maintaining precise impedance matching for repeatable high-frequency measurements.

Durable Material Design and Compliance

Crafted from stainless steel with gold-plated beryllium copper contacts, the N female flange connector offers excellent corrosion protection and sustained conductivity. Fully REACH and RoHS compliant, it performs reliably within −55 °C to +165 °C for extended operational life.

Compact Integration Applications

The 8.64 mm flange pattern allows integration with 4-hole flange mount RF connectors used in calibration instruments, RF analyzers, and signal distribution modules.

Customized Connector Solutions

Mechanc designs precision N-type RF connectors to meet specific layout and frequency requirements. Explore our RF Connector Catalog for compatible components and design variants.
