N Female 4-Hole Flange Mount RF Connector – Field Replaceable, 12.7mm Hole Spacing, 0.51mm Pin Diameter

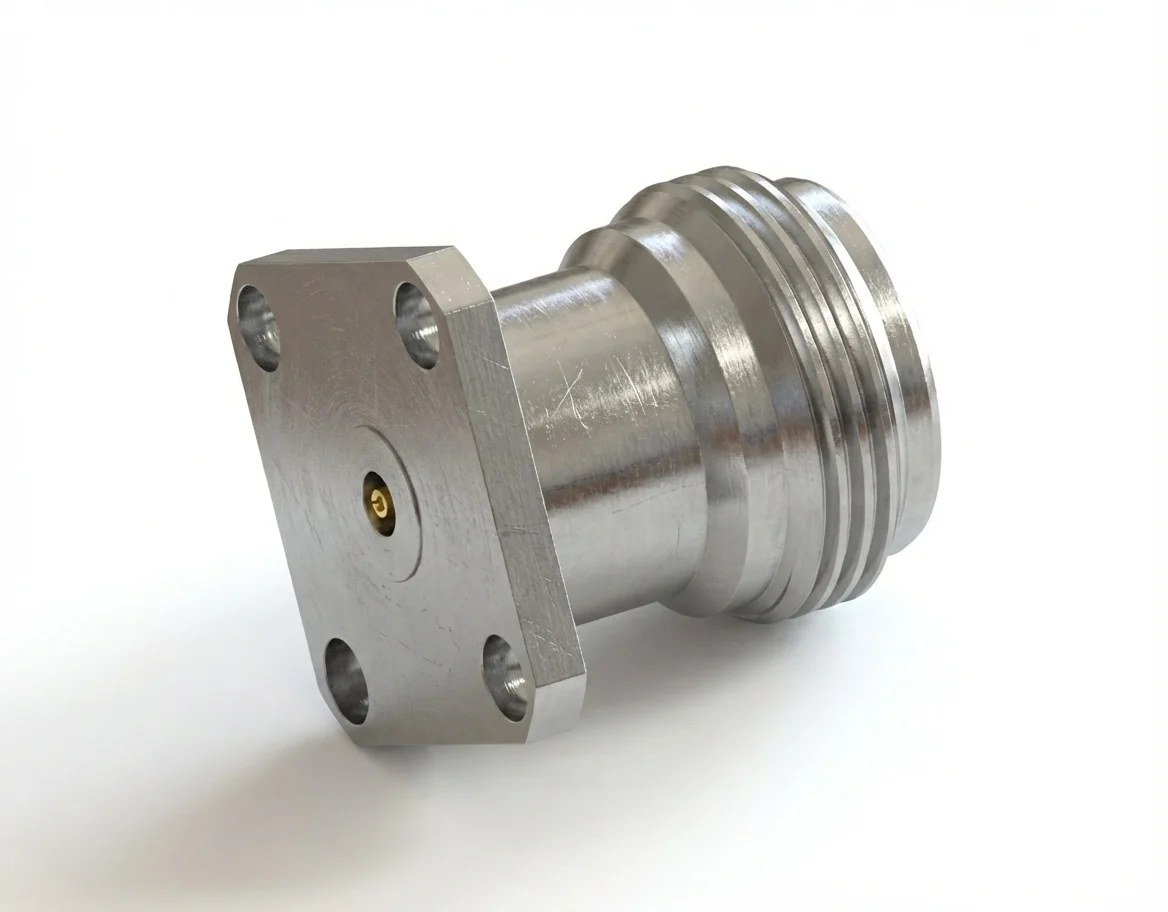

N Female 4-Hole Flange Mount Field-Replaceable RF Connector – Model N-KFD7

The N female 4-hole flange mount RF connector with a 0.51 mm pin and 12.7 mm hole spacing offers mechanical resilience and electrical precision for broadband applications. Designed for 50 Ω impedance and operation up to 18 GHz, this field-replaceable connector provides low-loss transmission in demanding test and communication environments.

High-Performance Electrical Characteristics

The N female connector maintains VSWR ≤ 1.08 and insertion loss < 0.06 √F(GHz) dB, ensuring excellent impedance consistency and minimal reflection across high-frequency measurements.

Material Integrity and Compliance

Built from stainless steel with gold-plated beryllium copper contacts, the N female flange connector combines conductivity, mechanical durability, and environmental resistance. It is fully REACH and RoHS compliant and withstands operation from −55 °C to +165 °C.

Integration for Compact Systems

The 12.7 mm flange format enables easy installation in 4-hole flange mount connectors used in RF analyzers, instrumentation housings, and signal distribution systems.

Precision Customization

Mechanc offers adaptable N-type RF connectors optimized for size, pin tolerance, and mounting structure. Explore compatible models in our RF Connector Catalog.
