| Quantity | Price |
| 1 - 99 | 22,00 $ |
| 100 - 199 | 21,56 $ |
| 200 - 499 | 21,34 $ |
* All Prices are in US Dollars and do not include duties
Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

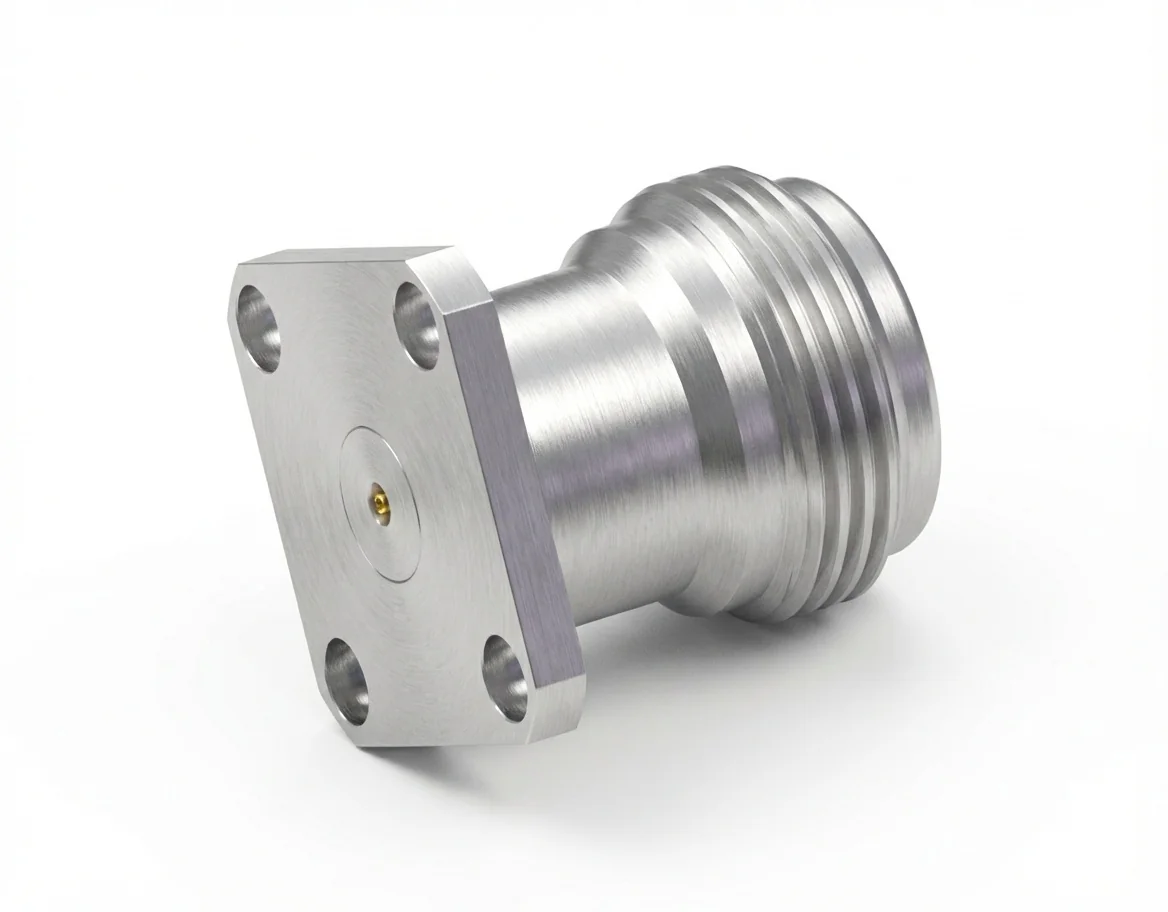

The N female 4-hole flange mount RF connector with a 0.9 mm pin and 12.7 mm hole spacing is engineered for high-load power systems and precision test modules. Operating from DC to 18 GHz with 50 Ω impedance, this field-replaceable connector delivers exceptional stability in heavy-duty measurement setups.
Featuring VSWR ≤ 1.08 and insertion loss < 0.06 √F(GHz) dB, the N female connector minimizes return loss and provides precise impedance alignment even under continuous load.
The N female flange connector is made from stainless steel with gold-plated beryllium copper contacts for superior conductivity and wear resistance. Fully REACH and RoHS compliant, it offers reliable performance between −55 °C and +165 °C.
The 12.7 mm flange spacing supports 4-hole flange mount RF connectors used in power analyzers, amplifier systems, and calibration setups.
Mechanc develops N-type RF connectors with flexible configurations for various power and test environments. See our RF Connector Catalog for additional high-frequency solutions.
