| Quantity | Price |
| 1 - 99 | 23,00 $ |
| 100 - 199 | 22,54 $ |
| 200 - 499 | 22,31 $ |
* All Prices are in US Dollars and do not include duties
Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

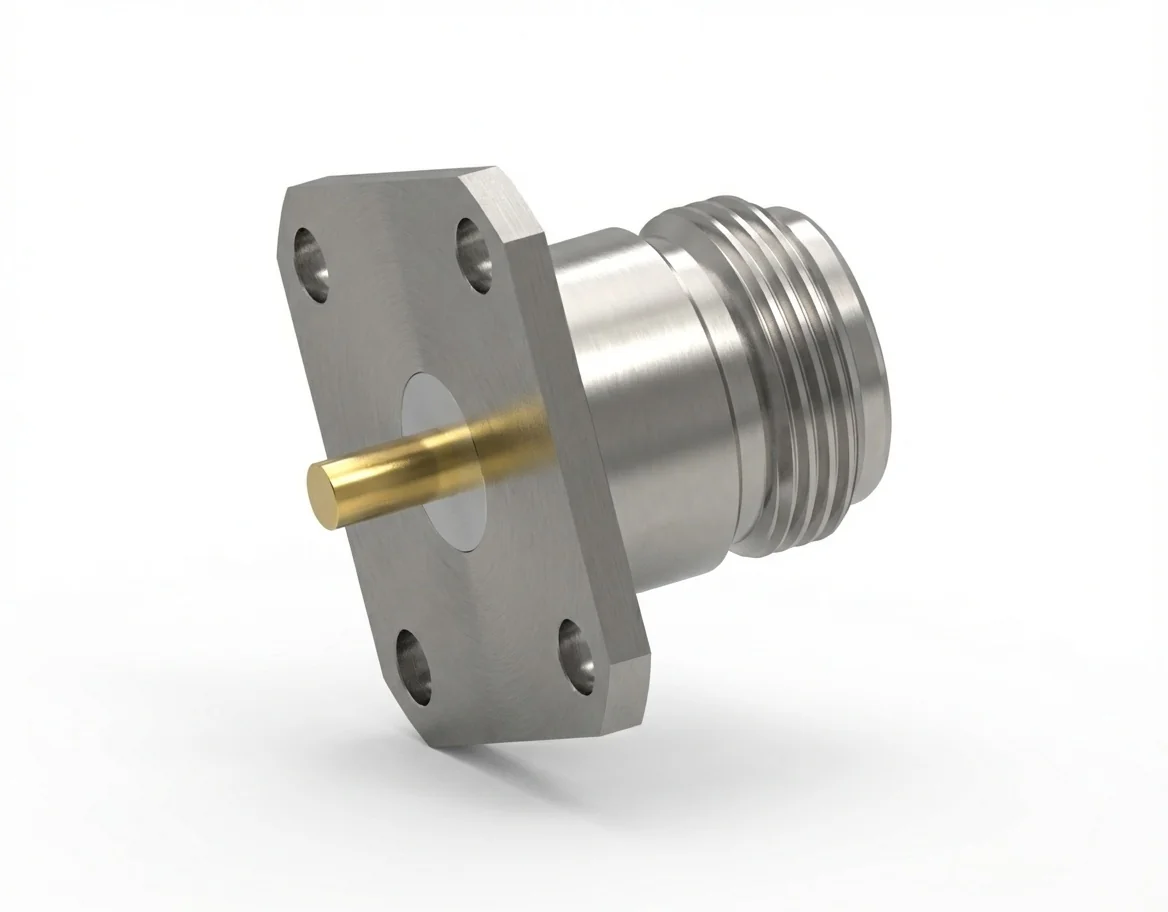

The N female 4-hole flange mount RF connector with a 3.04 mm pin and 18.25 mm hole spacing is engineered for solder attachment in high-stability RF and microwave applications. Operating with 50 Ω impedance and a frequency range up to 18 GHz, this connector ensures excellent mechanical reliability and low insertion loss for test and communication systems.
Delivering VSWR ≤ 1.08 and insertion loss ≤ 0.06 √F(GHz) dB, the N female solder flange connector provides exceptional return-loss performance and consistent impedance matching. Its large 3.04 mm pin diameter ensures secure electrical contact and high current capacity under continuous operation.
Precision machined from stainless steel with gold-plated beryllium copper contacts, the N female flange connector guarantees superior corrosion resistance and reliable signal continuity. Fully REACH and RoHS compliant, it upholds the highest material safety and environmental standards for professional RF use.
The 18.25 mm 4-hole flange structure enables secure integration with 4-hole flange mount connectors in transmitters, analyzers, and communication base stations. Its solder-type pin terminal ensures a low-resistance connection ideal for long-term installations.
Explore Mechanc’s full line of N-type RF connectors, including solder, crimp, and field-replaceable designs optimized for industrial and metrology environments. Find the ideal solution in our RF Connector Catalog.
