N Female Solder Attachment Bulkhead RF Connector – PCB Through-Hole Termination, 1.5mm Pin Diameter

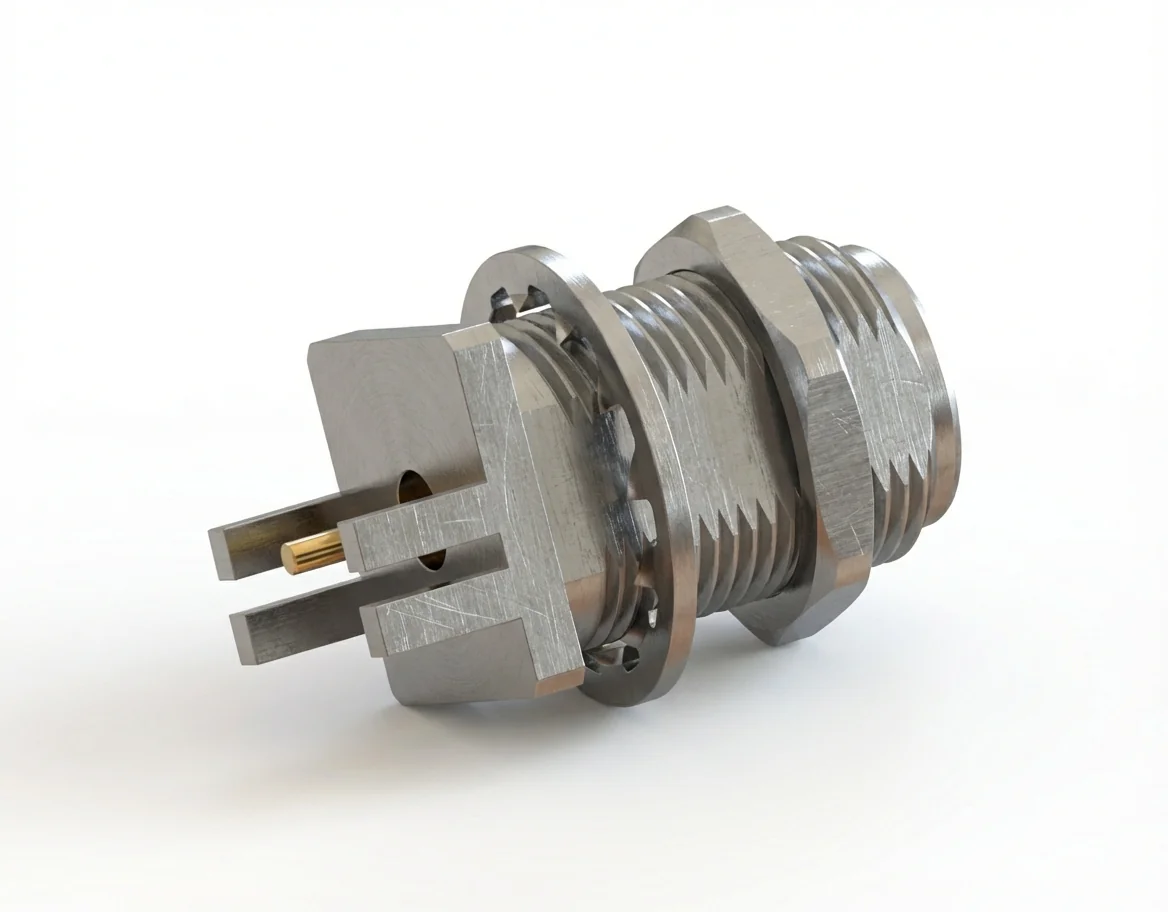

N Female Solder Attachment Bulkhead RF Connector – Model N-KSS1

The N female bulkhead RF connector with a 1.5 mm pin diameter is specifically engineered for PCB through-hole solder termination, providing a secure and low-loss connection for RF and microwave applications. Designed for 50 Ω impedance and operating from DC to 18 GHz, this connector ensures consistent signal integrity and rugged mechanical performance in both laboratory and industrial setups.

Reliable Electrical and Mechanical Design

With VSWR ≤ 1.08 and insertion loss ≤ 0.06 √F(GHz) dB, the N female solder attachment bulkhead connector delivers superior impedance control and minimal signal reflection. The robust bulkhead structure allows easy panel mounting, while the through-hole termination ensures a solid and vibration-resistant PCB connection.

Material Strength and Environmental Compliance

Constructed from stainless steel with gold-plated beryllium copper inner contacts, the N female bulkhead connector offers outstanding corrosion resistance and long-term electrical reliability. Fully REACH and RoHS compliant, it adheres to global material and environmental standards for professional-grade RF systems.

Applications and Mounting Flexibility

This connector’s bulkhead design allows it to be directly mounted on panels and test enclosures while providing a clean PCB solder interface. Ideal for use in flange mount assemblies, analyzers, test stations, and communication modules, it ensures a secure electrical connection with excellent mechanical retention.

Extended N-Type Product Range

Mechanc’s N-type RF connectors cover flange, bulkhead, and cable-mount variants optimized for stability and performance. Browse our full RF Connector Catalog to find compatible solutions for broadband and precision measurement systems.
