N Female 4-Hole Flange Mount RF Connector – Solder Attachment, 13.5mm Hole Spacing, 1.5mm Pin Diameter, Pin Terminal

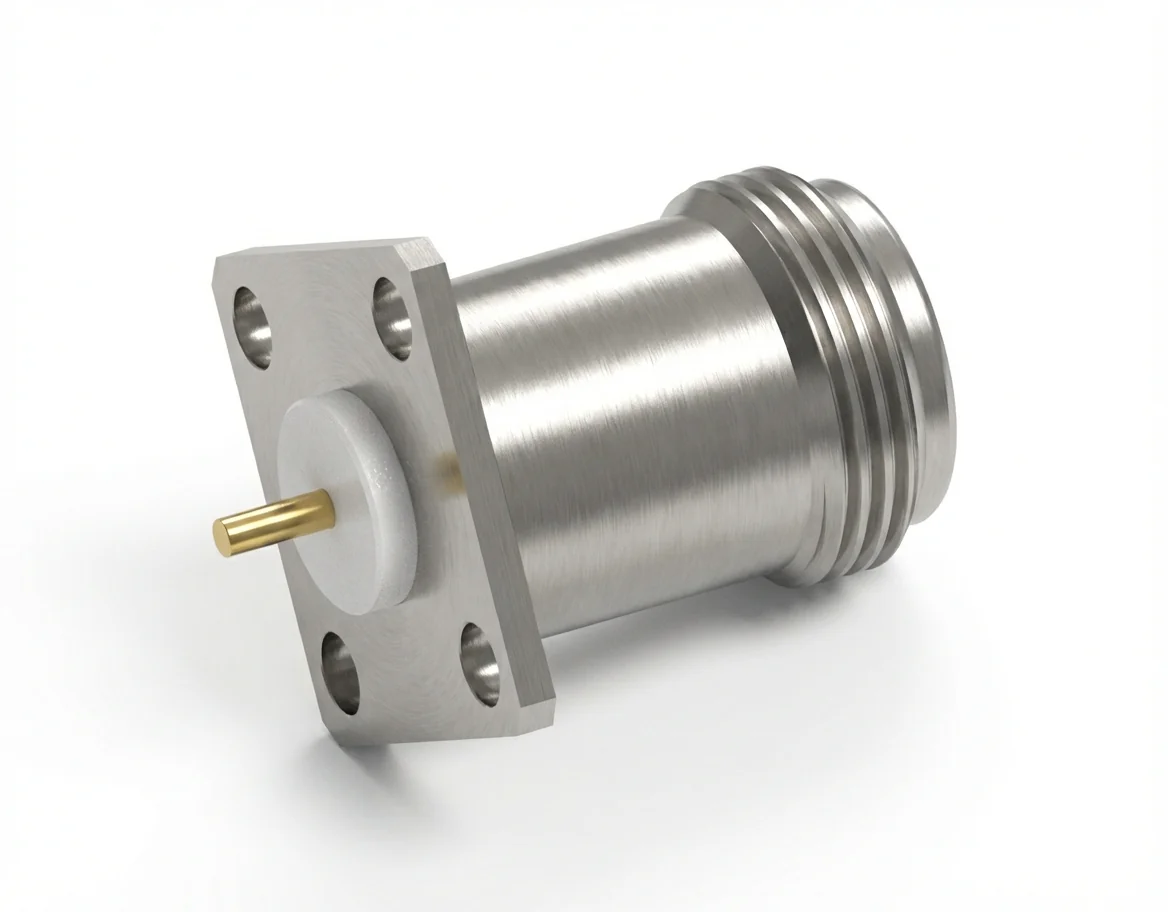

N Female 4-Hole Flange Mount RF Connector – Solder Attachment, Model N-KFD15

The N female 4-hole flange mount RF connector with a 1.5 mm pin and 13.5 mm hole spacing provides reliable solder-attachment performance for compact RF and microwave systems. Rated for 50 Ω impedance and frequencies up to 18 GHz, this connector ensures consistent power handling and precise signal control in critical test and communication setups.

Reliable RF Signal Transmission

Featuring VSWR ≤ 1.08 and insertion loss ≤ 0.06 √F(GHz) dB, the N female solder flange connector maintains low reflection and stable transmission across broadband frequencies. Its 1.5 mm pin diameter offers optimized balance between electrical performance and mechanical fit.

Material Durability and Compliance

Built from corrosion-resistant stainless steel with gold-plated beryllium copper contacts, the N female flange connector ensures superior conductivity and long service life. Fully REACH and RoHS compliant, it aligns with global standards for environmental and product safety.

Integration and Use Cases

The 13.5 mm 4-hole flange design allows straightforward installation with 4-hole flange mount connectors in laboratory instruments, network analyzers, and amplifier systems. The solder pin terminal offers a permanent and low-resistance connection ideal for fixed assembly environments.

Extended N-Type Connector Range

Mechanc’s N-type RF connector series includes solder, field-replaceable, and cable-mount versions suitable for demanding professional applications. Explore the complete range in our RF Connector Catalog.
