SMA Female 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.3mm Pin Diameter

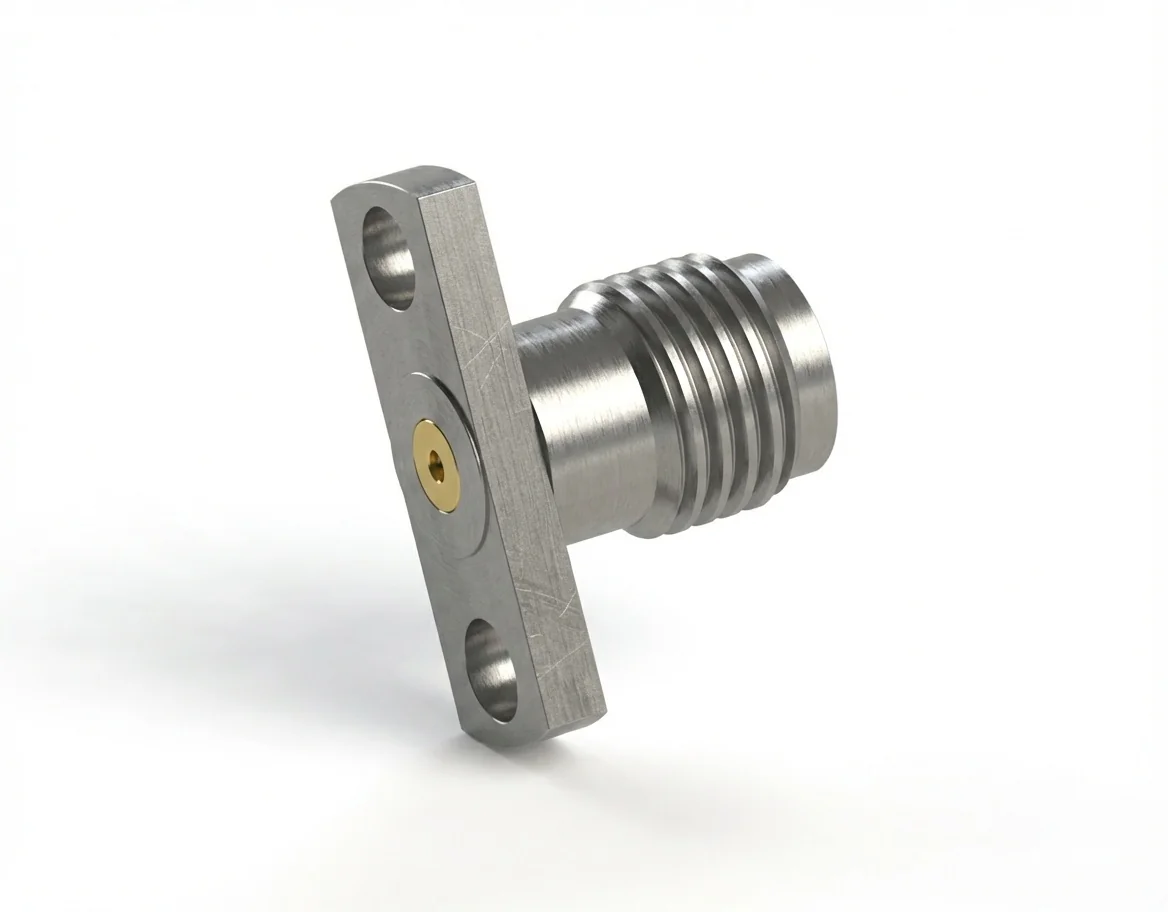

SMA Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model SMA-KFD26

The SMA female 2-hole flange mount RF connector with a 0.3 mm pin and 10.2 mm hole spacing is engineered for compact RF assemblies, broadband calibration modules, and precision measurement systems. Its field-replaceable structure ensures fast maintenance and consistent electrical alignment during repeated use.

Electrical Specifications and Broadband Range

Delivering 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-KFD26 connector provides excellent electrical stability up to 18 GHz. It minimizes reflection and ensures phase integrity in high-frequency testing. Explore related options in the SMA connector catalog.

Material Durability and Compliance

Constructed from passivated stainless steel with gold-plated beryllium copper contacts, this connector offers exceptional mechanical strength and reliable electrical performance. All parts are REACH and RoHS compliant, meeting global manufacturing standards. See similar designs under flange-mount connectors.

Mechanical Design and Integration

The 2-hole flange mount (10.2 mm spacing) allows easy installation and firm alignment in compact RF instruments. Its low-profile design suits dense system layouts while maintaining long-term stability. Visit our RF connector catalog for matching products.

Matching Male Connector

Combine the SMA-KFD26 with the SMA male 2-hole flange mount RF connector – Model SMA-JFD26 for stable broadband performance and precision calibration use.
