SMA Female 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.46mm Pin Diameter

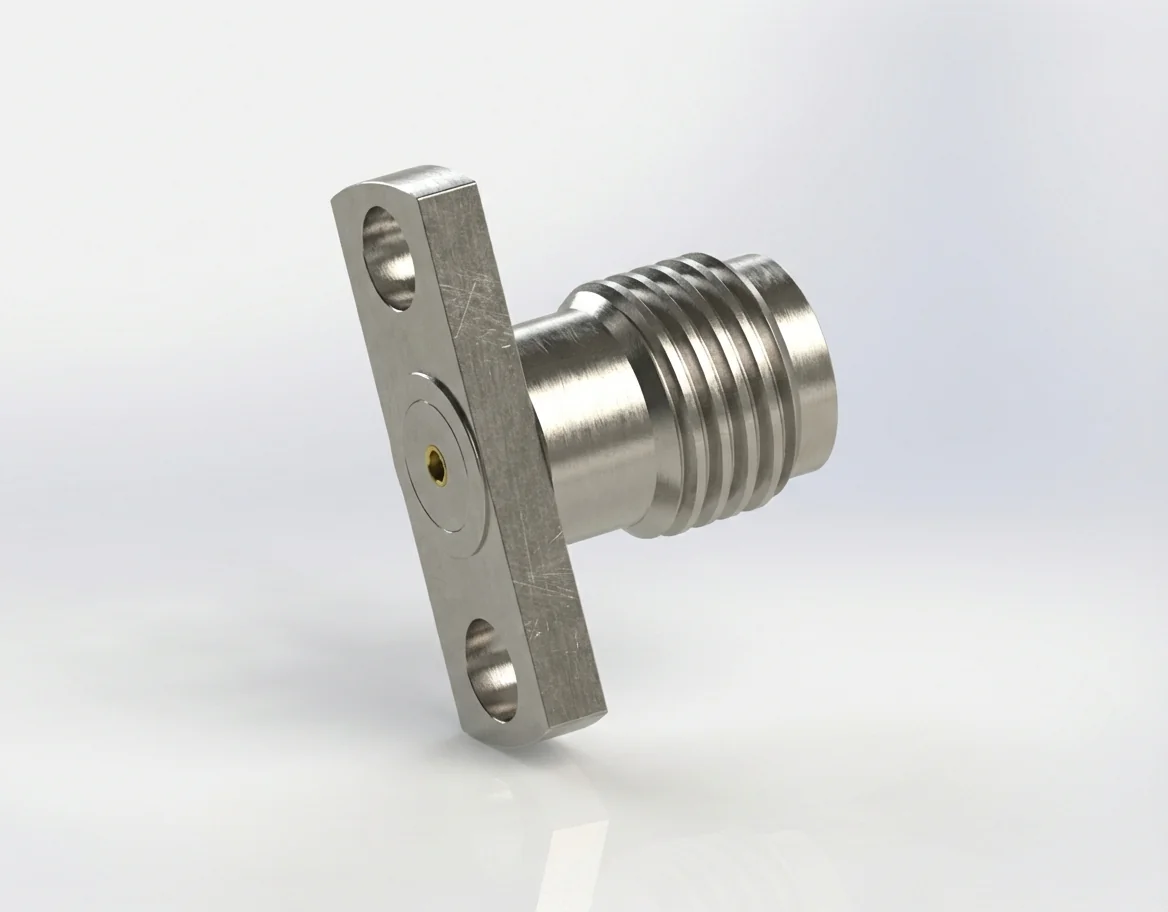

SMA Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model SMA-KFD28

The SMA female 2-hole flange mount RF connector with a 0.46 mm pin and 10.2 mm hole spacing provides durable and repeatable broadband connections for calibration assemblies, network analyzers, and RF measurement systems. Its field-replaceable construction allows rapid reconfiguration and long-lasting performance.

Electrical Specifications and Impedance Control

Offering 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-KFD28 connector ensures excellent broadband stability and low return loss up to 18 GHz. It provides high-accuracy signal transmission for test-grade applications. Discover additional options in our SMA connector catalog.

Material Quality and Compliance Certification

Manufactured from stainless steel with gold-plated beryllium copper contacts, this connector guarantees outstanding durability and electrical continuity. It meets all REACH and RoHS environmental standards. Explore related models within our flange-mount connector selection.

Mechanical Design and Application Fit

The 2-hole flange mount layout (10.2 mm spacing) provides accurate alignment and reliable stability in modular RF assemblies and compact analyzers. Its rigid design supports frequent re-mating. See the RF connector catalog for compatible SMA series connectors.

Matching Male Connector

Combine with the SMA male 2-hole flange mount RF connector – Model SMA-JFD28 to ensure broadband consistency and precise impedance matching across multiple reuses.
