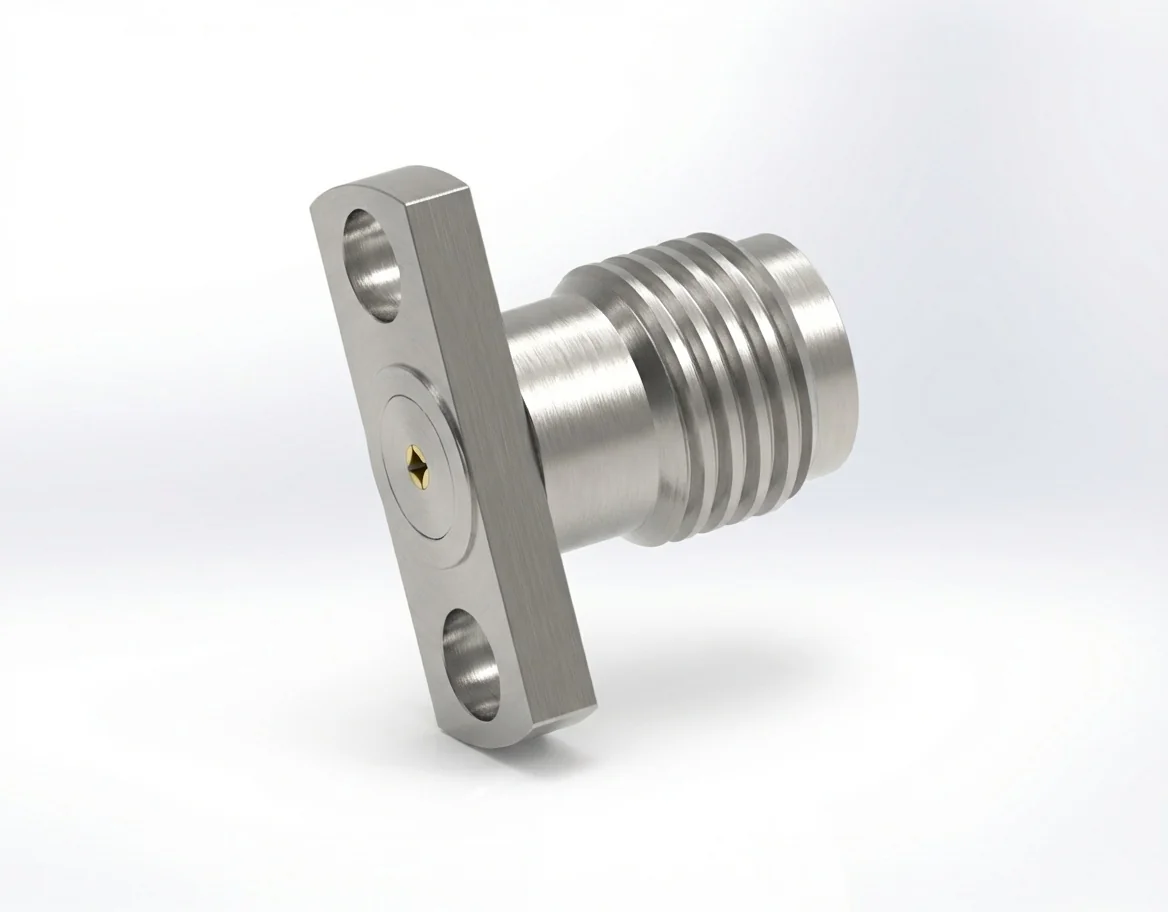

SMA Female 2-Hole Flange Mount RF Connector – Field Replaceable, 12.7mm Hole Spacing, 0.46mm Pin Diameter

SMA Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model SMA-KFD34

The SMA female 2-hole flange mount RF connector with a 0.46 mm pin and 12.7 mm hole spacing is precision-machined for repeatable high-frequency connections in calibration systems and broadband instruments. Its field-replaceable mechanism ensures minimal downtime and dependable performance.

Electrical Response and Signal Control

Operating at 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-KFD34 connector maintains high signal integrity and low reflection up to 18 GHz. It provides consistent broadband accuracy for test and measurement applications. Visit the SMA connector range for related designs.

Material Engineering and Regulatory Compliance

Constructed from stainless steel with gold-plated beryllium copper contacts, this connector offers outstanding conductivity, corrosion protection, and durability. It is REACH and RoHS compliant, guaranteeing environmentally responsible performance. Explore more models under flange-mount connectors.

Mechanical Profile and Mounting Arrangement

The 2-hole flange mount configuration (12.7 mm spacing) provides precise positioning, stable fixation, and high mechanical resilience under repeated use. Browse our RF connector catalog for additional SMA connector solutions.

Matching Male Connector

Use with the SMA male 2-hole flange mount RF connector – Model SMA-JFD34 to ensure reliable broadband coupling and accurate return-loss performance.
