SMA Female 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.51mm Pin Diameter

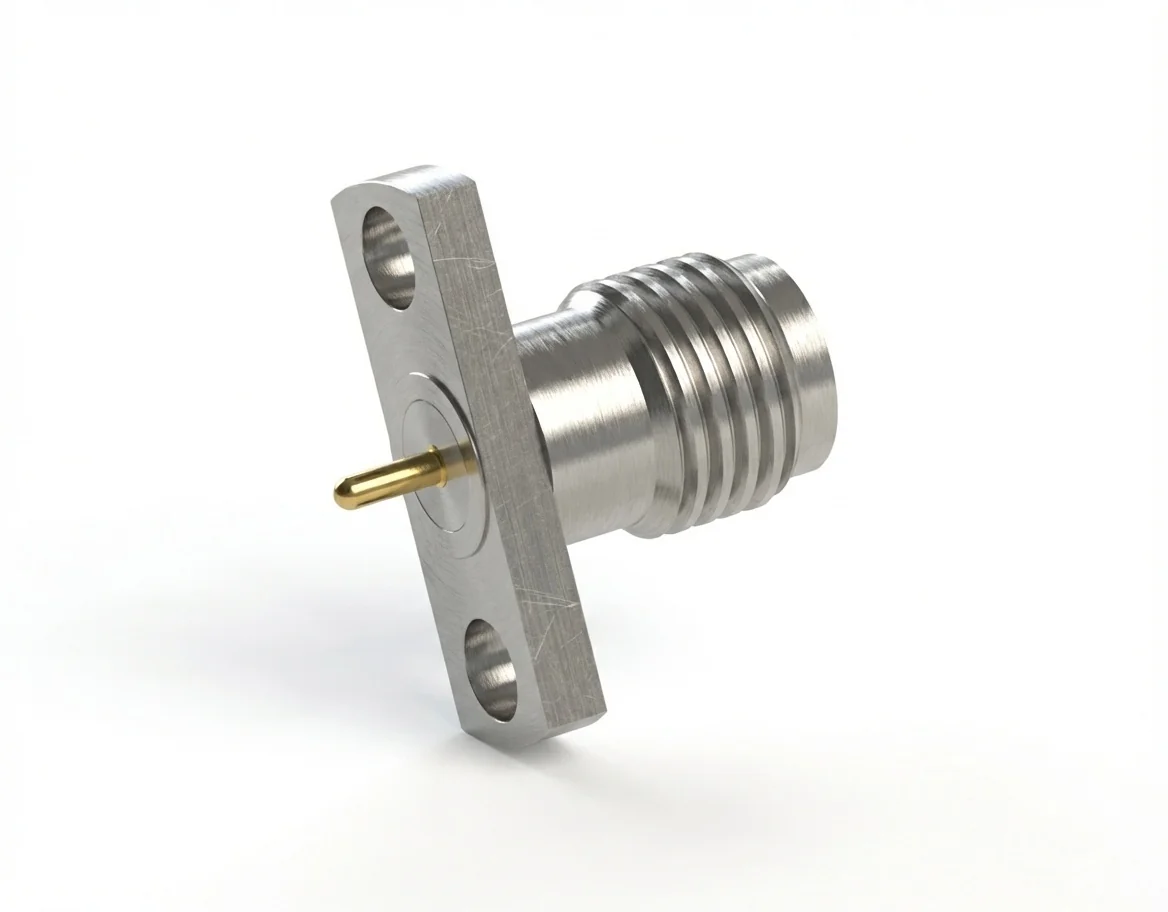

SMA Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model SMA-KFD29

The SMA female 2-hole flange mount RF connector with a 0.51 mm pin and 10.2 mm hole spacing is engineered for broadband test equipment, calibration fixtures, and precision RF measurement platforms. The field-replaceable mechanism guarantees repeatable performance and simplifies connector servicing.

Electrical Performance and Signal Fidelity

Delivering 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-KFD29 connector provides reliable transmission up to 18 GHz. It ensures stable return loss and high signal integrity in demanding test environments. Browse the SMA connector series for related interfaces.

Material Design and Global Compliance

Constructed from stainless steel and gold-plated beryllium copper, this connector delivers high mechanical durability and low contact resistance. All parts are REACH and RoHS compliant, ensuring environmental and production safety. Explore similar designs under flange-mount connectors.

Mechanical Stability and Integration

The 2-hole flange mount system (10.2 mm spacing) supports secure and precise alignment within test ports and compact analyzer housings. Its compact footprint allows use in high-density layouts. Review our RF connector catalog for additional SMA-compatible products.

Complementary Male Connector

Use alongside the SMA male 2-hole flange mount RF connector – Model SMA-JFD29 to achieve superior impedance consistency and broadband performance.
