SMA Female 2-Hole Flange Mount RF Connector – Field Replaceable, 12.22mm Hole Spacing, 0.9mm Pin Diameter

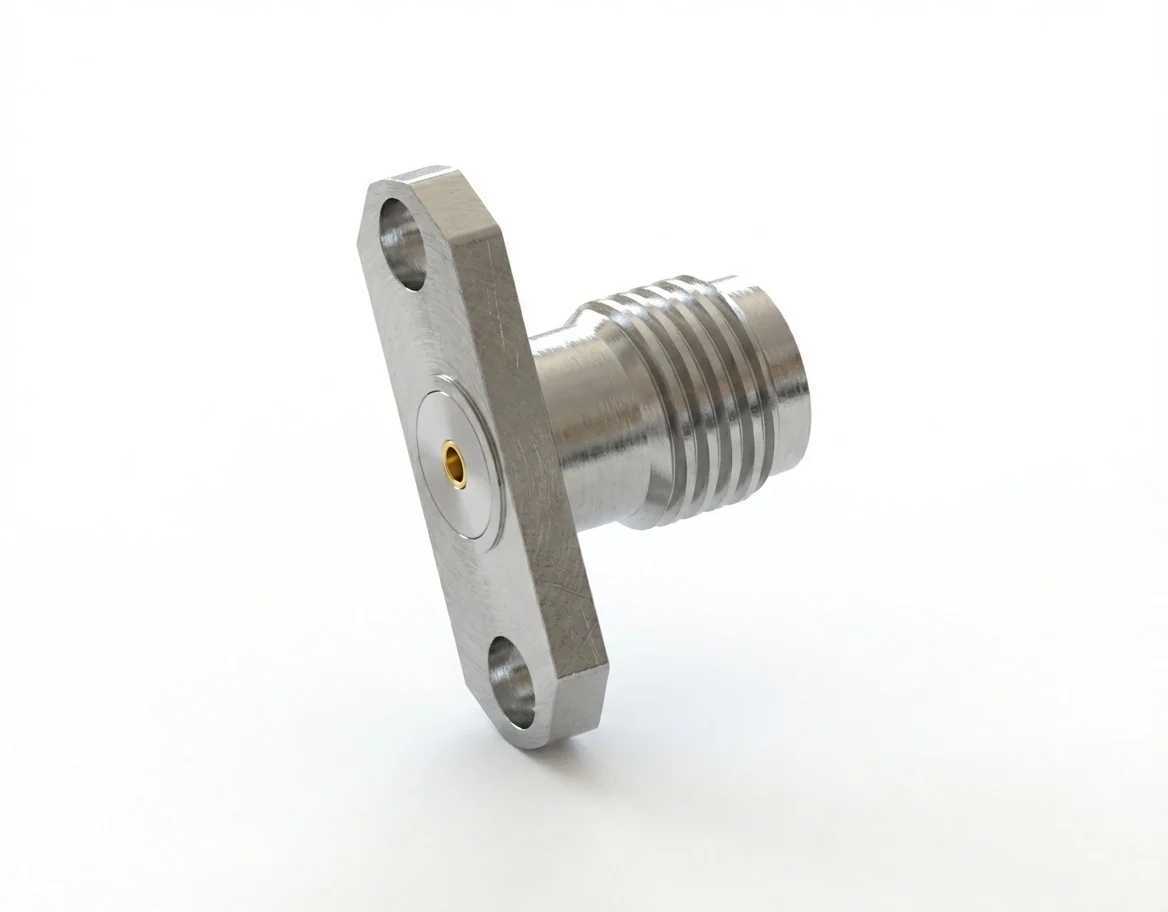

SMA Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model SMA-KFD24

The SMA female 2-hole flange mount RF connector with a 0.9 mm pin and 12.22 mm hole spacing is built for calibration equipment, test fixtures, and communication systems that require broadband accuracy and robust mechanical reliability. The field-replaceable design offers fast servicing while maintaining impedance precision.

Electrical Characteristics and Frequency Range

Featuring 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-KFD24 connector provides consistent, low-loss signal transmission up to 18 GHz. Its performance ensures accurate broadband testing and measurement. See other configurations in our SMA connector series.

Material Construction and Compliance Standards

Made from passivated stainless steel with gold-plated beryllium copper contacts, this connector guarantees long operational life and excellent electrical contact stability. It fully complies with REACH and RoHS standards for environmental safety. Browse related models under flange-mount connectors.

Mechanical Design and Mounting Features

The 2-hole flange mount structure (12.22 mm spacing) ensures secure fastening and accurate alignment in laboratory or modular environments. Its compact footprint supports vibration-resistant performance. Visit our RF connector catalog for compatible SMA models.

Matching Male Connector

Combine the SMA-KFD24 with the SMA male 2-hole flange mount RF connector – Model SMA-JFD24 to achieve reliable gender pairing and phase-consistent broadband connectivity.
