| Quantity | Price |
| 1 - 99 | 22,00 $ |
| 100 - 199 | 21,56 $ |
| 200 - 499 | 21,34 $ |
* All Prices are in US Dollars and do not include duties
Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

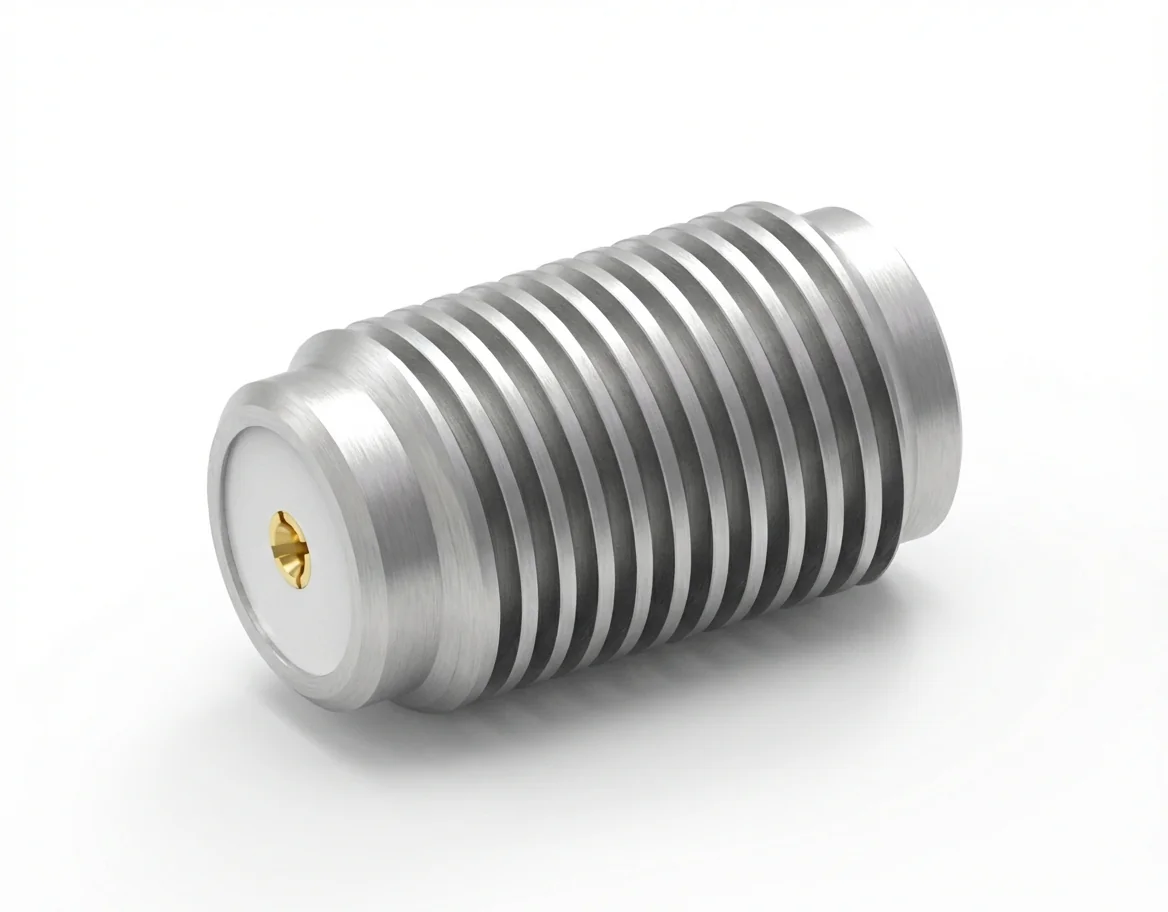

The SMA female field replaceable RF connector with a 0.5 mm pin diameter and threaded mount design provides a highly stable connection solution for RF test and measurement systems. With a 50 Ω impedance and frequency range from DC to 18 GHz, the SMA-KYD1 offers exceptional repeatability and electrical consistency for laboratory and production environments.
Designed for superior signal integrity, the SMA-KYD1 connector delivers VSWR ≤ 1.08 and insertion loss ≤ 0.06 √F(GHz) dB, ensuring low reflection and minimal attenuation across the working band. Its precision-machined interface maintains excellent impedance matching, ideal for RF test setups and calibration systems.
Manufactured from passivated stainless steel with gold-plated beryllium copper contacts, the SMA-KYD1 RF connector offers outstanding mechanical strength and corrosion resistance. Fully RoHS and REACH compliant, it guarantees long-term reliability even after multiple mating cycles in harsh operating conditions.
The threaded mount configuration allows for secure panel or enclosure installation while ensuring easy replacement in the field. The field-replaceable design supports flexible integration into modular RF test systems, precision instruments, and communication devices.
Browse the complete SMA connector series from Mechanc, including flange-mount, press-in, and cable-mount versions. Visit the RF Connector Catalog for high-performance connectivity solutions tailored to your frequency and application requirements.
