| Quantity | Price |
| 1 - 99 | 22,00 $ |
| 100 - 199 | 21,56 $ |
| 200 - 499 | 21,34 $ |
* All Prices are in US Dollars and do not include duties
Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

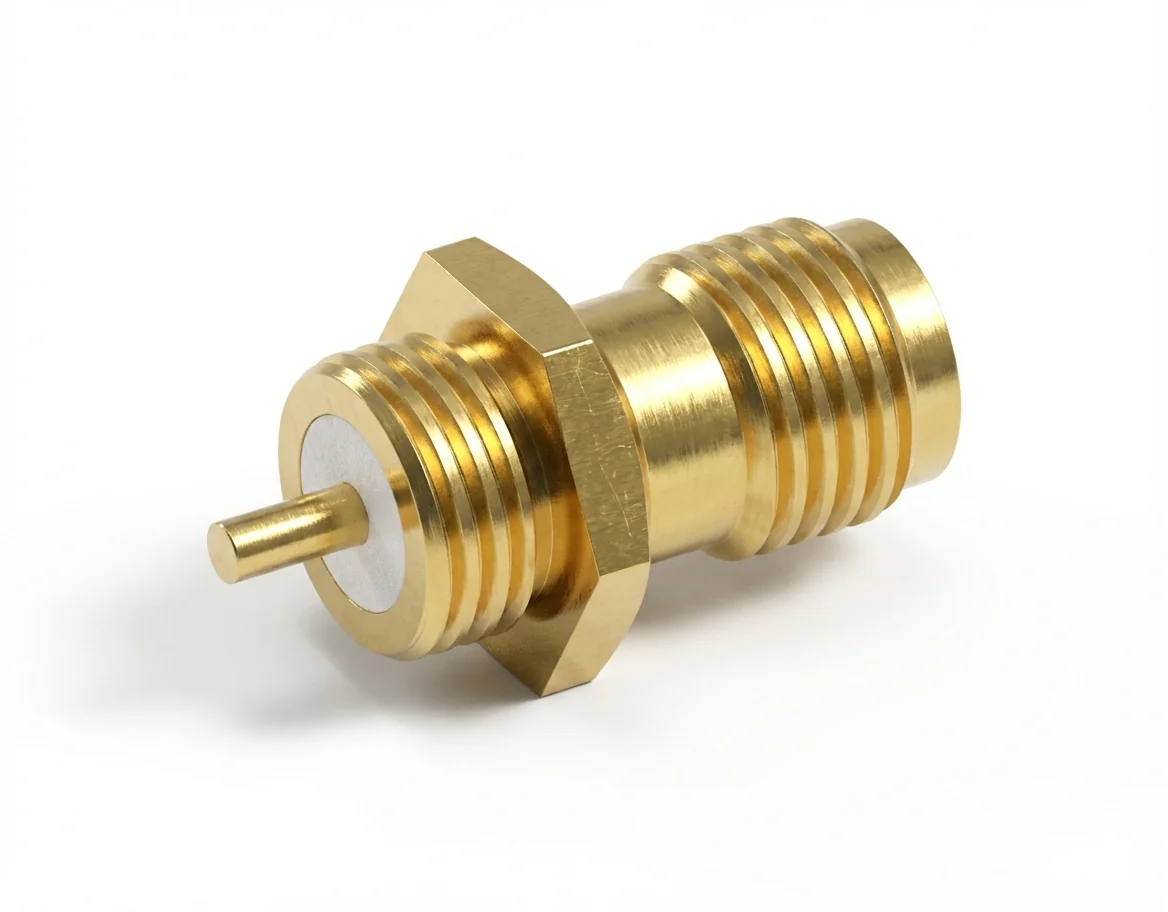

The SMA female bulkhead RF connector with 1.28 mm pin diameter and solder attachment design ensures a reliable, low-loss connection for high-frequency RF applications. The SMA-KSS6 operates from DC to 18 GHz with 50 Ω impedance, offering excellent electrical stability and mechanical durability for use in test systems, communication modules, and precision instrumentation.
With VSWR ≤ 1.08 and insertion loss ≤ 0.06 √F(GHz) dB, the SMA-KSS6 connector guarantees superior signal integrity and minimal reflection across the operating band. Its precisely machined stub terminal and gold-plated contact ensure low contact resistance and consistent RF performance under demanding test conditions.
Built from passivated stainless steel with gold-plated beryllium copper inner contacts, the SMA-KSS6 RF connector combines excellent conductivity with corrosion resistance and mechanical strength. All materials comply with RoHS and REACH regulations, supporting long-term stability and environmental safety.
The bulkhead mount design allows the SMA-KSS6 to pass through panels and housings for secure installation and grounding. Its solder attachment interface ensures strong mechanical fixation, making it ideal for test fixtures, RF enclosures, and communication networks.
Mechanc provides a complete selection of SMA connectors including flange-mount, press-in, and cable-mount types. Visit the RF Connector Catalog to discover additional precision-engineered solutions for high-frequency systems.
