| Quantity | Price |
| 1 - 99 | 22,00 $ |
| 100 - 199 | 21,56 $ |
| 200 - 499 | 21,34 $ |
* All Prices are in US Dollars and do not include duties
Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

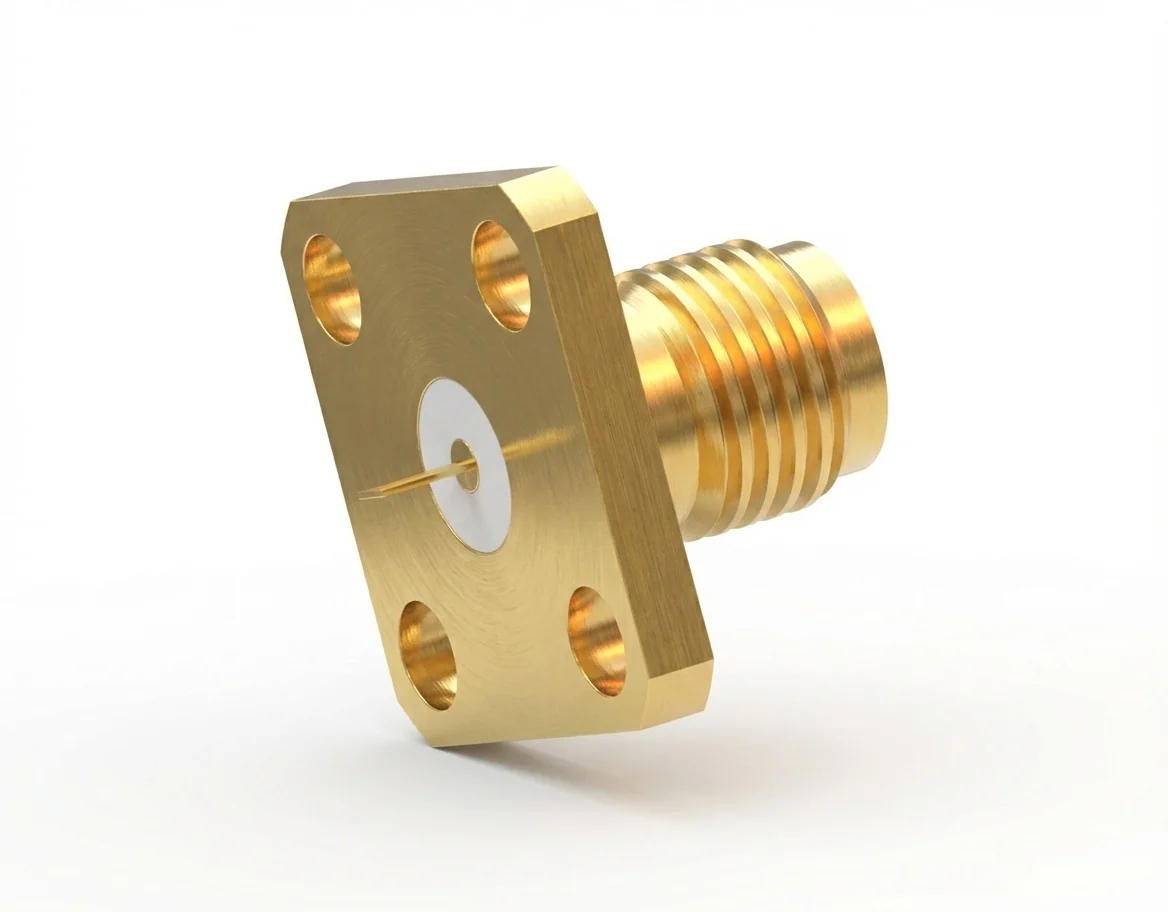

The SMA female 4-hole flange mount RF connector with 1.23 mm pin and 8.65 mm hole spacing is engineered for solder attachment in high-frequency assemblies requiring excellent repeatability and robust mechanical support. Designed for 50 Ω impedance operation from DC to 18 GHz, the SMA-KSS3 connector ensures high signal integrity and low reflection across broadband applications.
With VSWR ≤ 1.08 and insertion loss ≤ 0.06 √F(GHz) dB, the SMA-KSS3 RF connector provides efficient power transmission and minimal signal degradation. Its precision-machined 1.23 mm center pin guarantees stable mating and excellent contact reliability, even under repeated connection cycles.
Manufactured from passivated stainless steel with gold-plated beryllium copper contacts, the SMA-KSS3 connector offers exceptional corrosion resistance, electrical conductivity, and long-term durability. All materials conform to RoHS and REACH environmental compliance standards.
The 4-hole flange mount configuration ensures precise alignment and firm attachment in RF enclosures, filters, and amplifiers. Its solder interface simplifies assembly, providing reliable strain relief for applications exposed to vibration or temperature variation.
Mechanc offers an extensive line of SMA connectors for laboratory, aerospace, and communication systems. For additional high-frequency solutions, visit the RF Connector Catalog to find compatible flange-mount and cable-mount designs.
