| Quantity | Price |
| 1 - 99 | 22,00 $ |
| 100 - 199 | 21,56 $ |
| 200 - 499 | 21,34 $ |
* All Prices are in US Dollars and do not include duties
Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

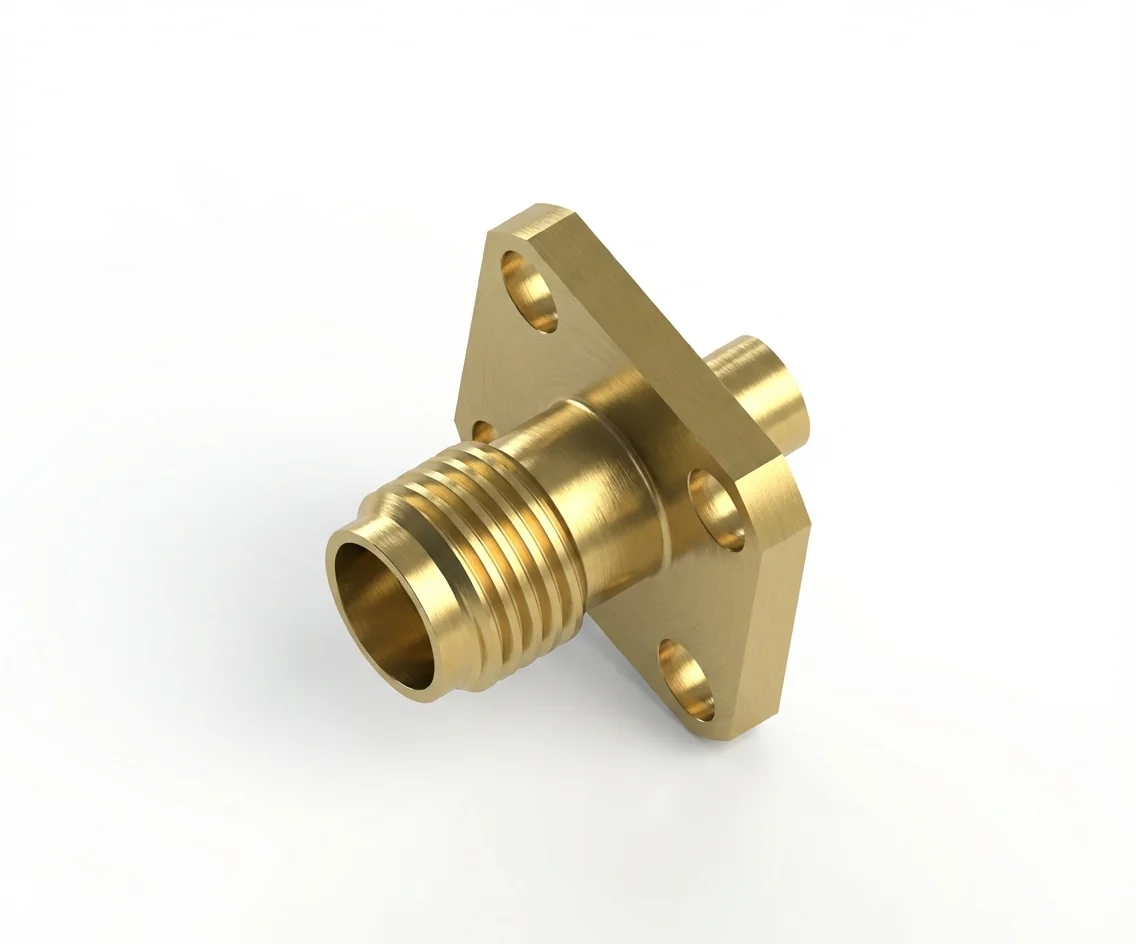

The SMA female straight 4-hole flange-mount RF connector, model SMA-KFCFS220-1, is designed for rugged panel-mount applications requiring phase-stable, low-loss interconnects with the CFS220 ultra-low-loss, phase-stable coaxial cable. Operating from DC to 18 GHz with 50 Ω impedance, VSWR ≤ 1.12, and insertion loss ≤ 0.06 √f dB, it provides stable broadband performance and excellent electrical reliability. Explore related configurations within the SMA connector family.
The SMA-KFCFS220-1 connector ensures precise impedance control and low reflection through its 4-hole flange-mount design, providing mechanical robustness and superior grounding performance. This structure supports stable phase response under vibration and mechanical stress, ideal for panel-mounted RF systems and test enclosures.
Manufactured from passivated stainless steel and fitted with a gold-plated beryllium-copper contact, the SMA-KFCFS220-1 delivers excellent conductivity, wear resistance, and corrosion protection. Its precision machining ensures tight impedance matching and repeatable RF performance across multiple installations. Explore additional high-frequency solutions in RF connectors.
The 4-hole flange-mount geometry supports direct chassis integration with consistent grounding continuity and reduced insertion loss. The secure solder-mount cable termination preserves dielectric alignment for enhanced signal stability. Find more flange and termination types within cable-mount connectors.
For precision RF assemblies requiring secure mounting and minimal insertion loss, pair the SMA-KFCFS220-1 connector with the CFS220 ultra-low-loss, phase-stable coaxial cable to achieve consistent broadband performance and high mechanical integrity.
