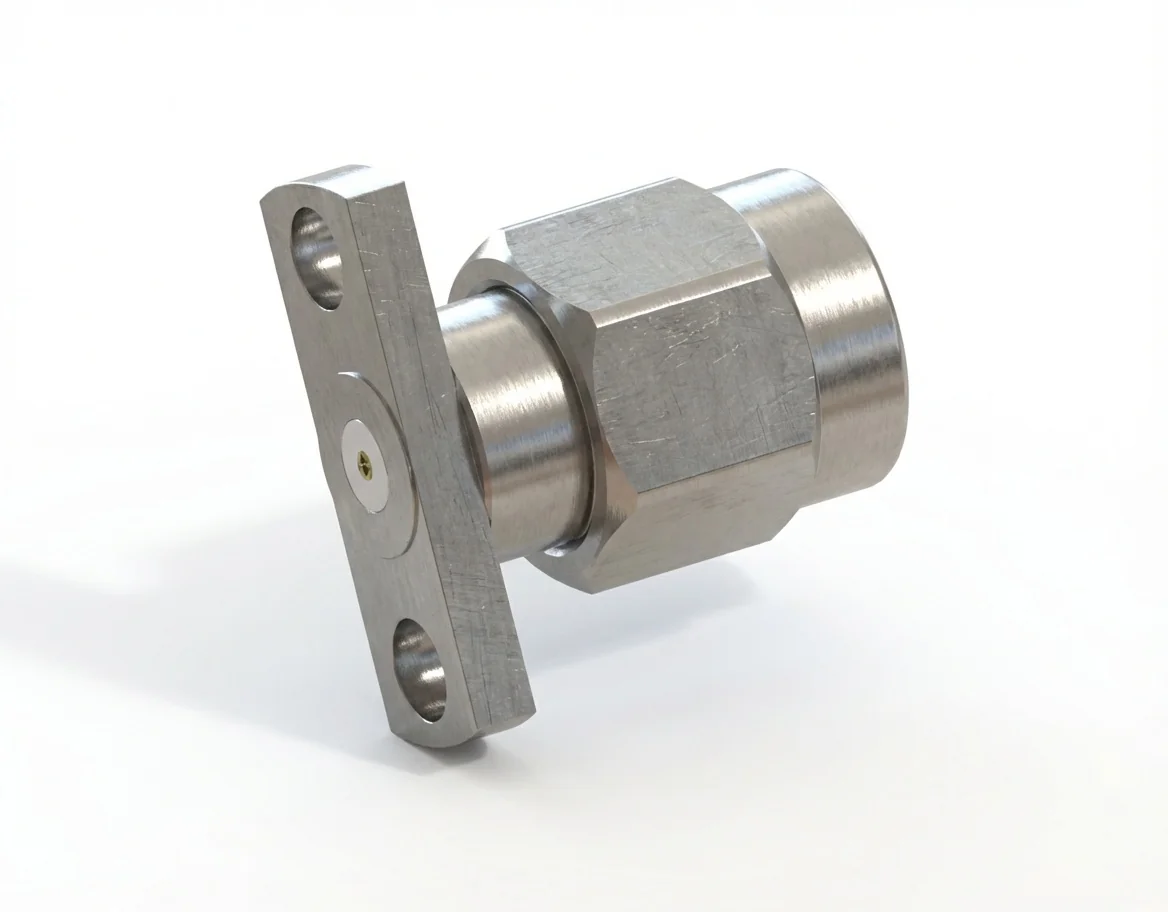

SMA Male 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.23mm Pin Diameter

SMA Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model SMA-JFD25

The SMA male 2-hole flange mount RF connector with a 0.23 mm pin and 10.2 mm hole spacing is ideal for compact broadband systems and calibration modules. Its field-replaceable configuration allows quick servicing and ensures repeatable impedance alignment in high-frequency setups.

Electrical Specifications and Signal Accuracy

Operating at 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-JFD25 connector delivers stable transmission up to 18 GHz. Explore similar precision interfaces in our SMA connector series.

Material Composition and Compliance

Constructed from passivated stainless steel with gold-plated beryllium copper contacts, this connector combines mechanical strength with excellent electrical performance. Fully REACH and RoHS compliant. See our flange-mount connector catalog for more details.

Mechanical Mounting and Compact Design

The 2-hole flange mount layout (10.2 mm spacing) ensures tight mechanical fit and vibration resistance, suitable for small test enclosures and portable analyzers. Visit the RF connector catalog for related SMA models.

Mirror Female Connector

Pair with the SMA female 2-hole flange mount RF connector – Model SMA-KFD25 to achieve matched broadband impedance and consistent signal stability.
