SMA Male 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.3mm Pin Diameter

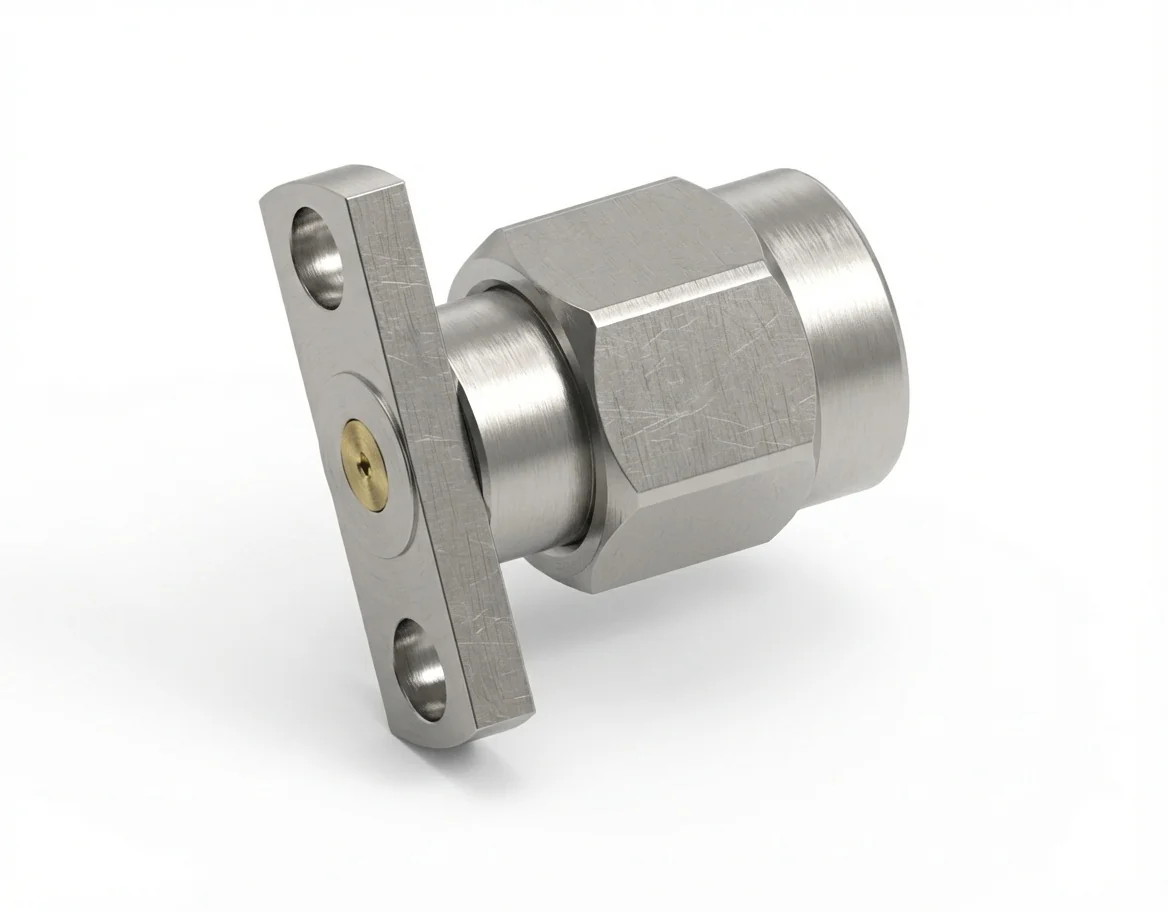

SMA Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model SMA-JFD26

The SMA male 2-hole flange mount RF connector with a 0.3 mm pin and 10.2 mm hole spacing delivers precision broadband performance and robust mechanical integrity. Its field-replaceable structure supports efficient reassembly for test systems requiring repeatable impedance accuracy.

Electrical Behavior and Frequency Range

Rated at 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-JFD26 connector ensures low-loss transmission and minimal reflection up to 18 GHz. Learn more through our SMA connector catalog.

Material Durability and Compliance Standards

Made from stainless steel with gold-plated beryllium copper contacts, this connector guarantees high conductivity and corrosion resistance. Fully REACH and RoHS compliant. Check additional models in our flange-mount connector series.

Mechanical Structure and Mounting Strength

The 2-hole flange mount pattern (10.2 mm spacing) ensures secure attachment and precise alignment in space-constrained devices. Visit the RF connector catalog for compatible SMA designs.

Mirror Female Connector

Use alongside the SMA female 2-hole flange mount RF connector – Model SMA-KFD26 to achieve broadband matching and phase stability.
