| Quantity | Price |
| 1 - 99 | 22,00 $ |
| 100 - 199 | 21,56 $ |
| 200 - 499 | 21,34 $ |
* All Prices are in US Dollars and do not include duties
Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

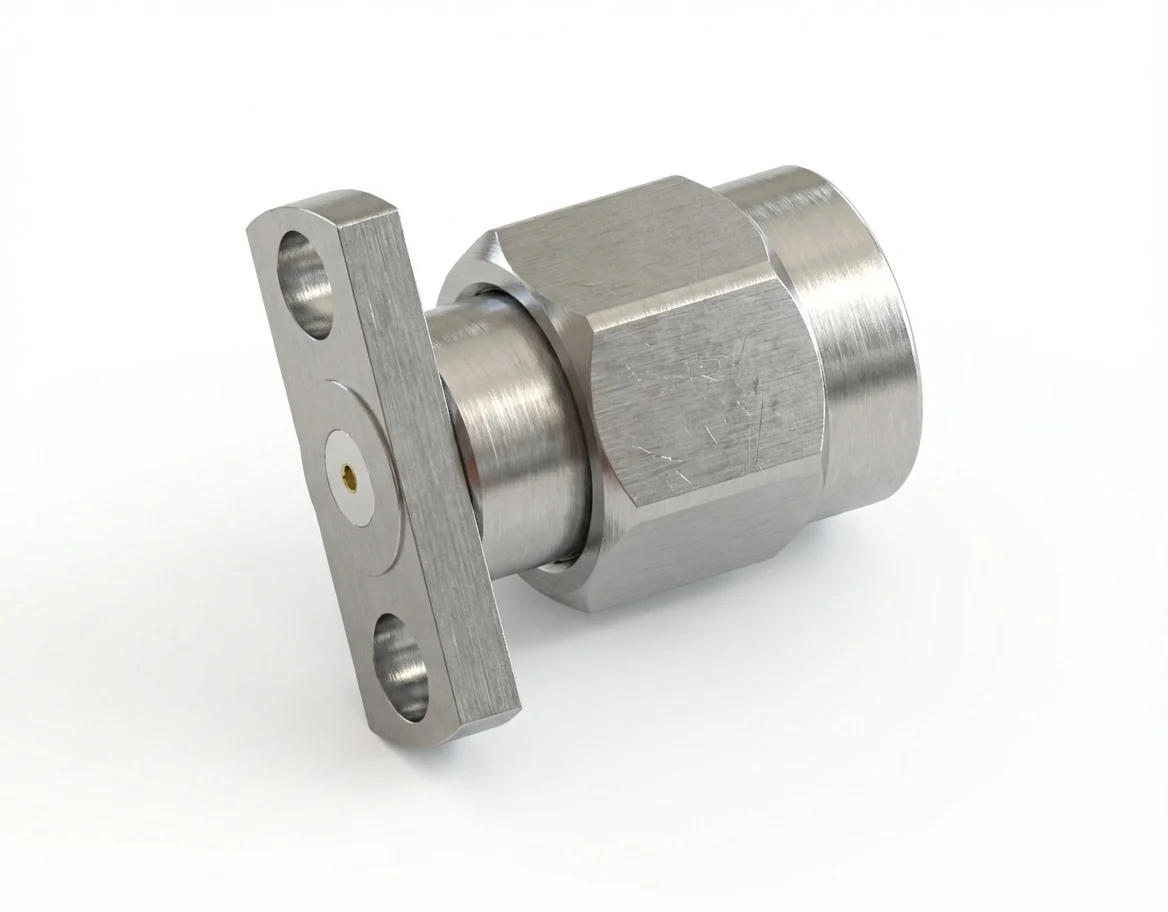

The SMA male 2-hole flange mount RF connector with a 0.3 mm pin and 9 mm hole spacing provides stable RF performance for high-density analyzers and test platforms. Its field-replaceable structure supports quick maintenance and long-term electrical repeatability.
Operating at 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-JFD32 connector ensures consistent broadband operation up to 18 GHz. See the full range in our SMA connector catalog.
Made from stainless steel with gold-plated beryllium copper contacts, this connector offers excellent durability and corrosion resistance. Fully REACH and RoHS compliant. Explore similar interfaces in our flange-mount connector section.
The 2-hole flange mount layout (9 mm spacing) enables compact mounting and reliable mechanical stability in portable test devices. Find additional precision connectors in our RF connector catalog.
Pair with the SMA female 2-hole flange mount RF connector – Model SMA-KFD32 to achieve broadband impedance balance and consistent electrical performance.
