SMA Male 2-Hole Flange Mount RF Connector – Field Replaceable, 12.22mm Hole Spacing, 0.46mm Pin Diameter

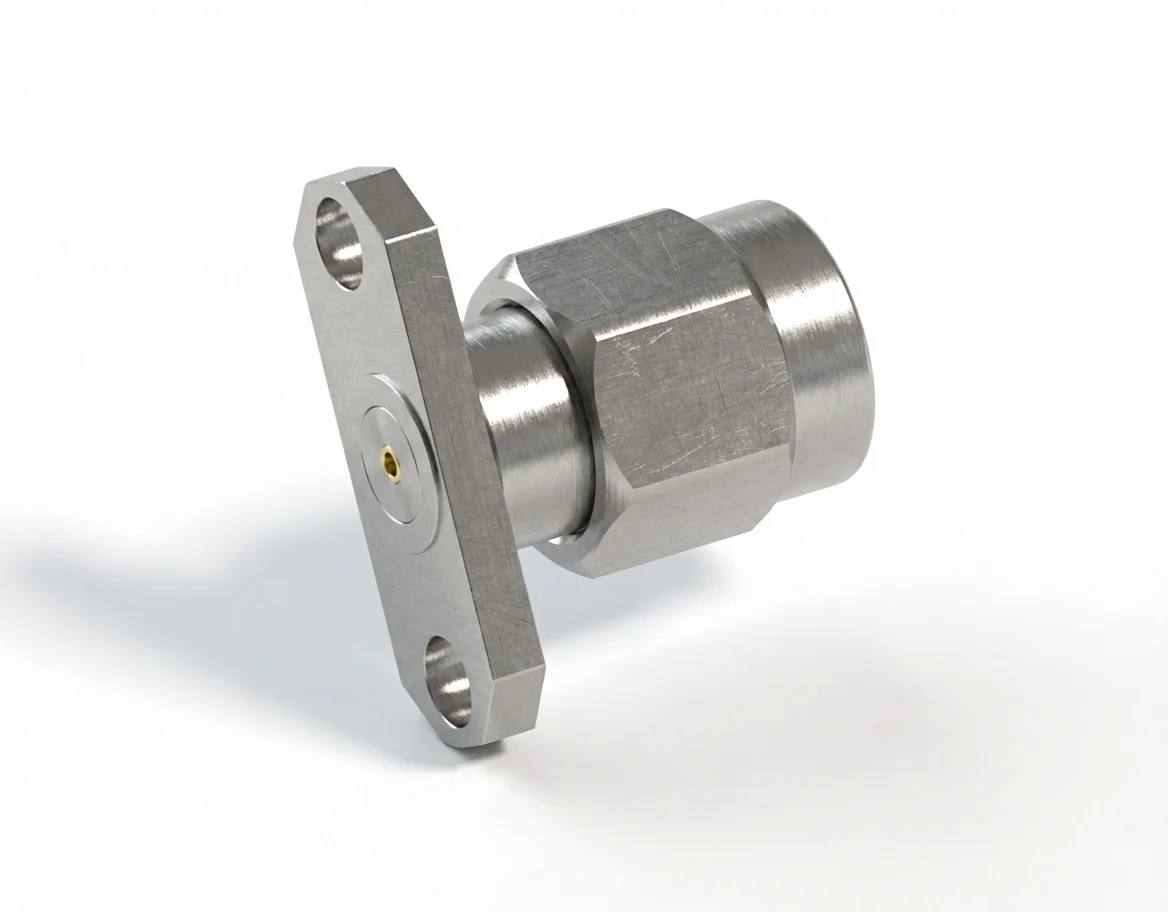

SMA Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model SMA-JFD22

The SMA male 2-hole flange mount RF connector with a 0.46 mm pin and 12.22 mm hole spacing delivers robust mechanical reliability and electrical accuracy for analyzer and test system integration. The field-replaceable configuration ensures stable impedance across multiple connection cycles.

Electrical Parameters and Broadband Performance

Operating at 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-JFD22 connector offers consistent broadband behavior up to 18 GHz. Explore additional components in the SMA connector catalog.

Material Durability and Compliance

Constructed from passivated stainless steel and equipped with gold-plated beryllium copper contacts, this connector ensures long-lasting durability and electrical performance. Fully REACH and RoHS compliant. Browse the flange-mount connector range for matching items.

Mechanical Design and Mount Stability

The 2-hole flange mount structure (12.22 mm spacing) ensures secure positioning and easy integration into compact broadband devices. Visit the RF connector catalog for more SMA-compatible configurations.

Mirror Female Connector

Combine with the SMA female 2-hole flange mount RF connector – Model SMA-KFD22 for matched impedance and high-frequency stability.
