SMA Male 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.46mm Pin Diameter

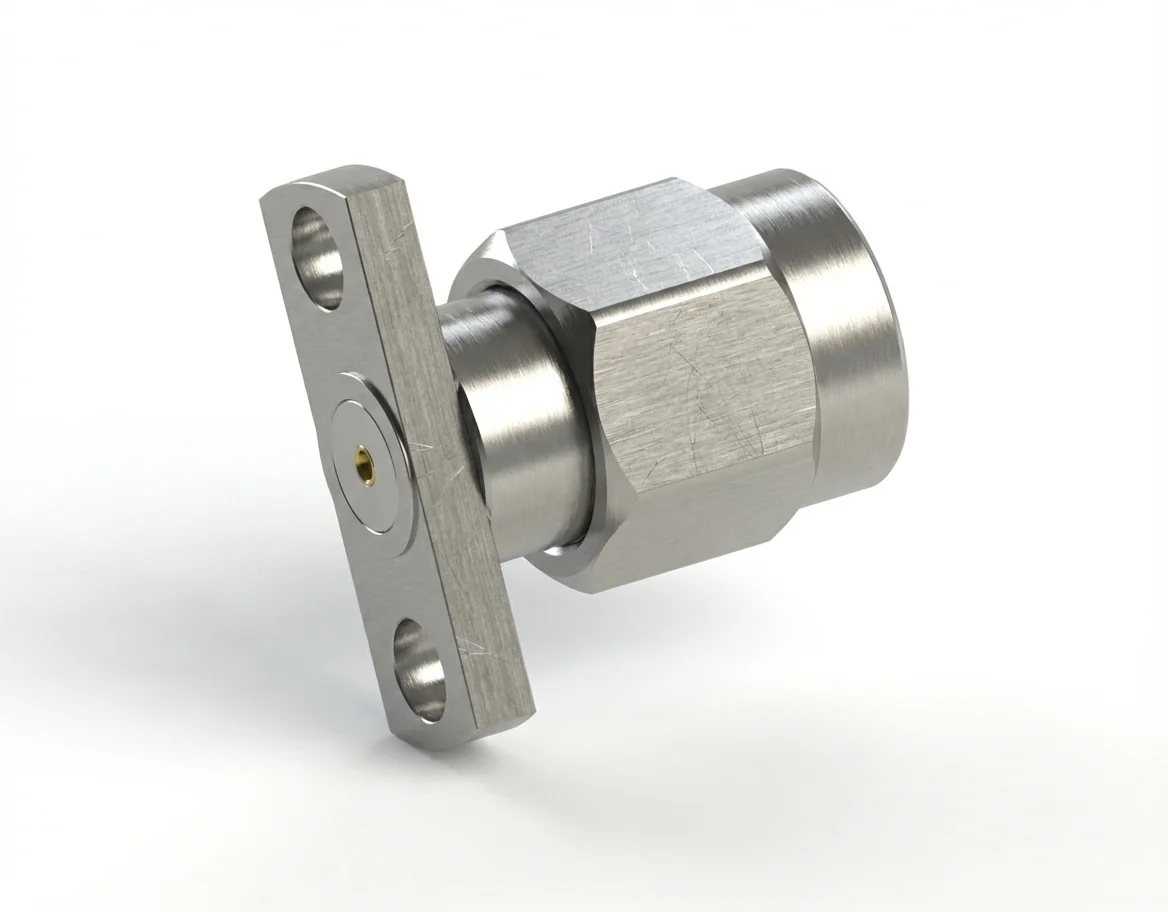

SMA Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model SMA-JFD28

The SMA male 2-hole flange mount RF connector with a 0.46 mm pin and 10.2 mm hole spacing combines compact design with precision performance for modular analyzers and calibration benches. Its field-replaceable design ensures reusability and consistent RF alignment.

Electrical Specifications and Signal Fidelity

Delivering 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-JFD28 connector maintains broadband performance up to 18 GHz. Visit our SMA connector catalog for complementary products.

Material Quality and Standards Compliance

Built from corrosion-resistant stainless steel and gold-plated beryllium copper, this connector ensures long-term stability and consistent contact reliability. Fully REACH and RoHS compliant. Browse additional options in our flange-mount connector section.

Mechanical Form and Mounting Design

The 2-hole flange mount geometry (10.2 mm spacing) offers compact integration and precise alignment. Explore the RF connector catalog for matching SMA series items.

Mirror Female Connector

Combine with the SMA female 2-hole flange mount RF connector – Model SMA-KFD28 for broadband impedance matching and stable performance.
