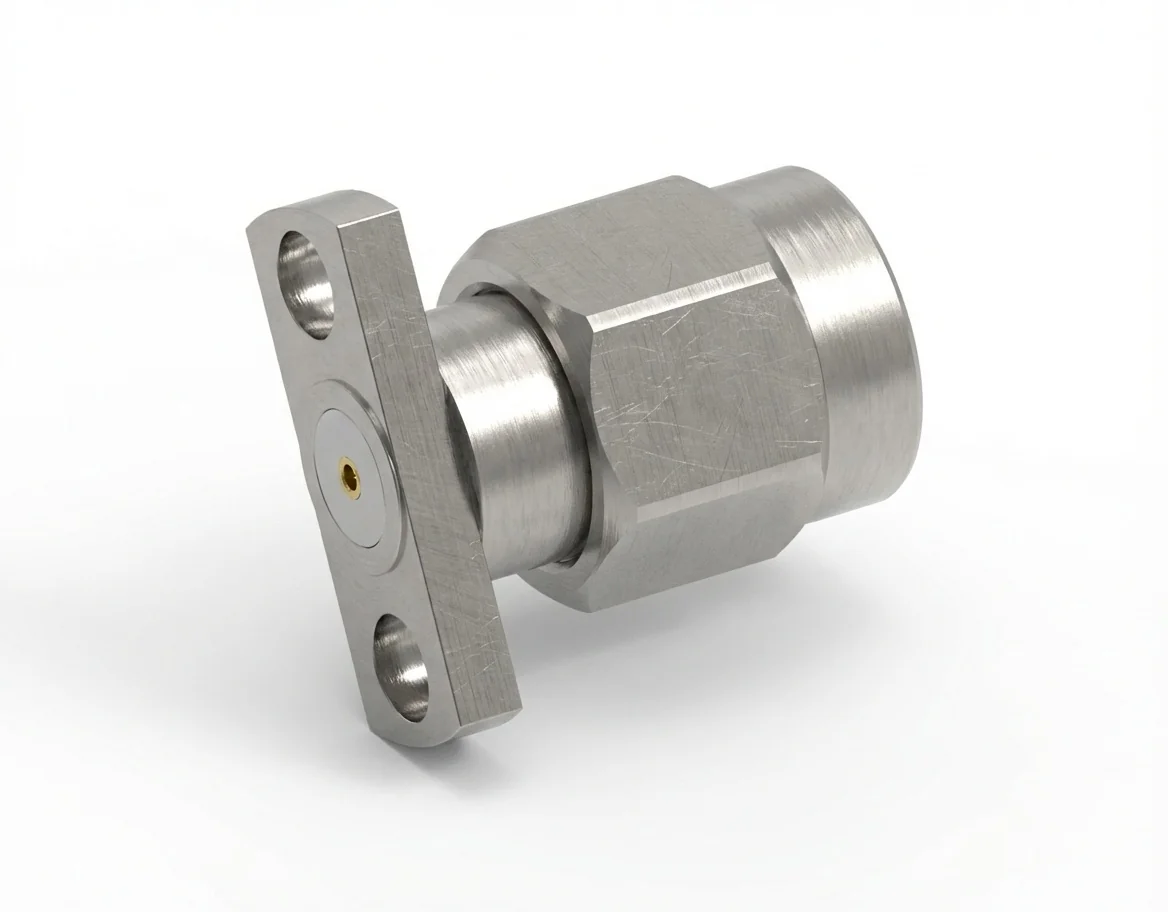

SMA Male 2-Hole Flange Mount RF Connector – Field Replaceable, 9mm Hole Spacing, 0.46mm Pin Diameter

SMA Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model SMA-JFD34

The SMA male 2-hole flange mount RF connector with a 0.46 mm pin and 9 mm hole spacing is optimized for compact RF calibration setups and portable analyzer systems. Its field-replaceable configuration enables fast reinstallation without signal degradation.

Electrical Performance and Frequency Precision

Featuring 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-JFD34 connector ensures broadband stability up to 18 GHz. Discover more in our SMA connector catalog.

Material Structure and Compliance Standards

Crafted from stainless steel with gold-plated beryllium copper contacts, this connector offers corrosion protection and long-lasting performance. Fully REACH and RoHS compliant. Review similar interfaces in our flange-mount connector section.

Mechanical Integration and Mounting Alignment

The 2-hole flange mount geometry (9 mm spacing) provides secure coupling and accurate positioning for miniaturized RF instruments. Explore additional SMA options in our RF connector catalog.

Mirror Female Connector

Combine with the SMA female 2-hole flange mount RF connector – Model SMA-KFD34 for broadband impedance control and precise electrical compatibility.
