SMA Male 2-Hole Flange Mount RF Connector – Field Replaceable, 12.22mm Hole Spacing, 0.51mm Pin Diameter

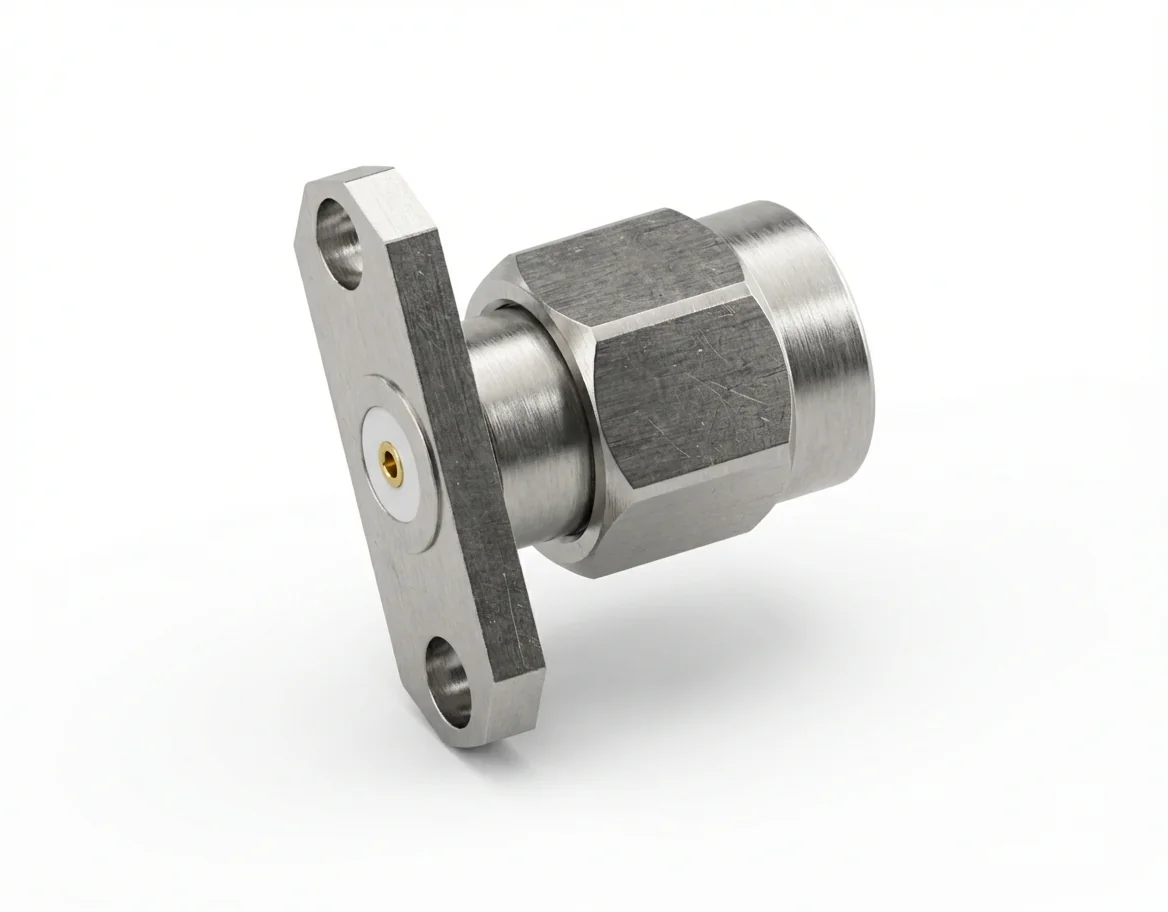

SMA Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model SMA-JFD23

The SMA male 2-hole flange mount RF connector with a 0.51 mm pin and 12.22 mm hole spacing is engineered for test setups requiring repeatable broadband precision. Its field-replaceable assembly supports long service life with consistent mechanical and electrical alignment.

Electrical Performance and Signal Accuracy

Providing 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-JFD23 connector maintains low return loss and stable signal integrity up to 18 GHz. Discover more in our SMA connector catalog.

Material Quality and Compliance Assurance

Manufactured from stainless steel with gold-plated beryllium copper contacts, this connector ensures corrosion resistance, mechanical endurance, and high conductivity. Fully REACH and RoHS compliant. Explore similar options in the flange-mount connector collection.

Mechanical Design and Alignment

The 2-hole flange mount geometry (12.22 mm spacing) guarantees stable mechanical coupling and accurate alignment in compact analyzer designs. See our RF connector catalog for compatible types.

Mirror Female Connector

Use alongside the SMA female 2-hole flange mount RF connector – Model SMA-KFD23 for stable broadband connectivity and minimal insertion loss.
