SMA Male 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.51mm Pin Diameter

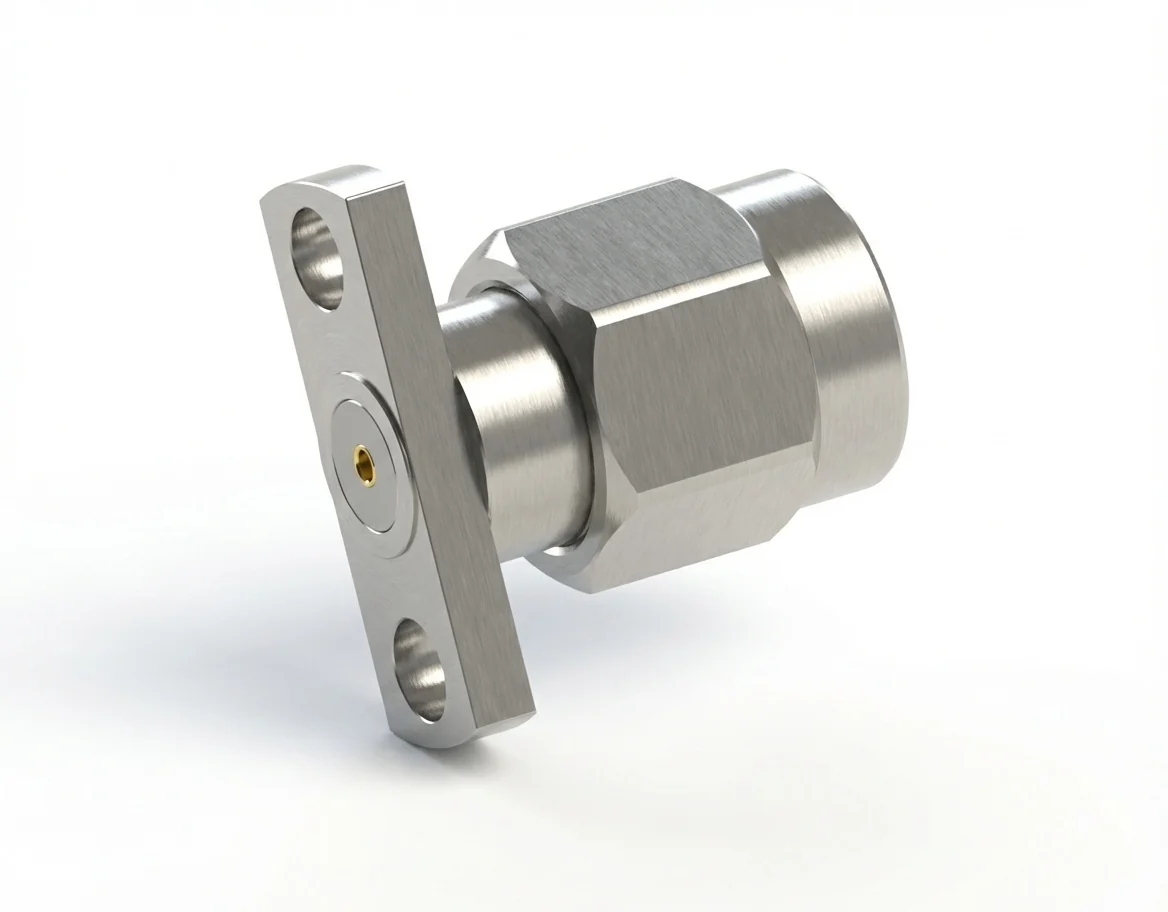

SMA Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model SMA-JFD29

The SMA male 2-hole flange mount RF connector with a 0.51 mm pin and 10.2 mm hole spacing is designed for precision RF assemblies and testing systems. Its field-replaceable structure ensures repeatable impedance characteristics and mechanical longevity.

Electrical Characteristics and Broadband Range

Offering 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-JFD29 connector guarantees reliable performance up to 18 GHz. Explore related models in the SMA connector catalog.

Material Integrity and Compliance

Manufactured from stainless steel and gold-plated beryllium copper, this connector delivers superior conductivity and corrosion resistance. Fully REACH and RoHS compliant. See our flange-mount connector catalog for similar components.

Mechanical Construction and Mount Fit

The 2-hole flange mount design (10.2 mm spacing) provides tight mounting and dimensional accuracy for RF analyzer integration. View additional types in the RF connector catalog.

Mirror Female Connector

Use with the SMA female 2-hole flange mount RF connector – Model SMA-KFD29 for impedance-matched broadband coupling.
