SMA Male 2-Hole Flange Mount RF Connector – Field Replaceable, 12.22mm Hole Spacing, 0.9mm Pin Diameter

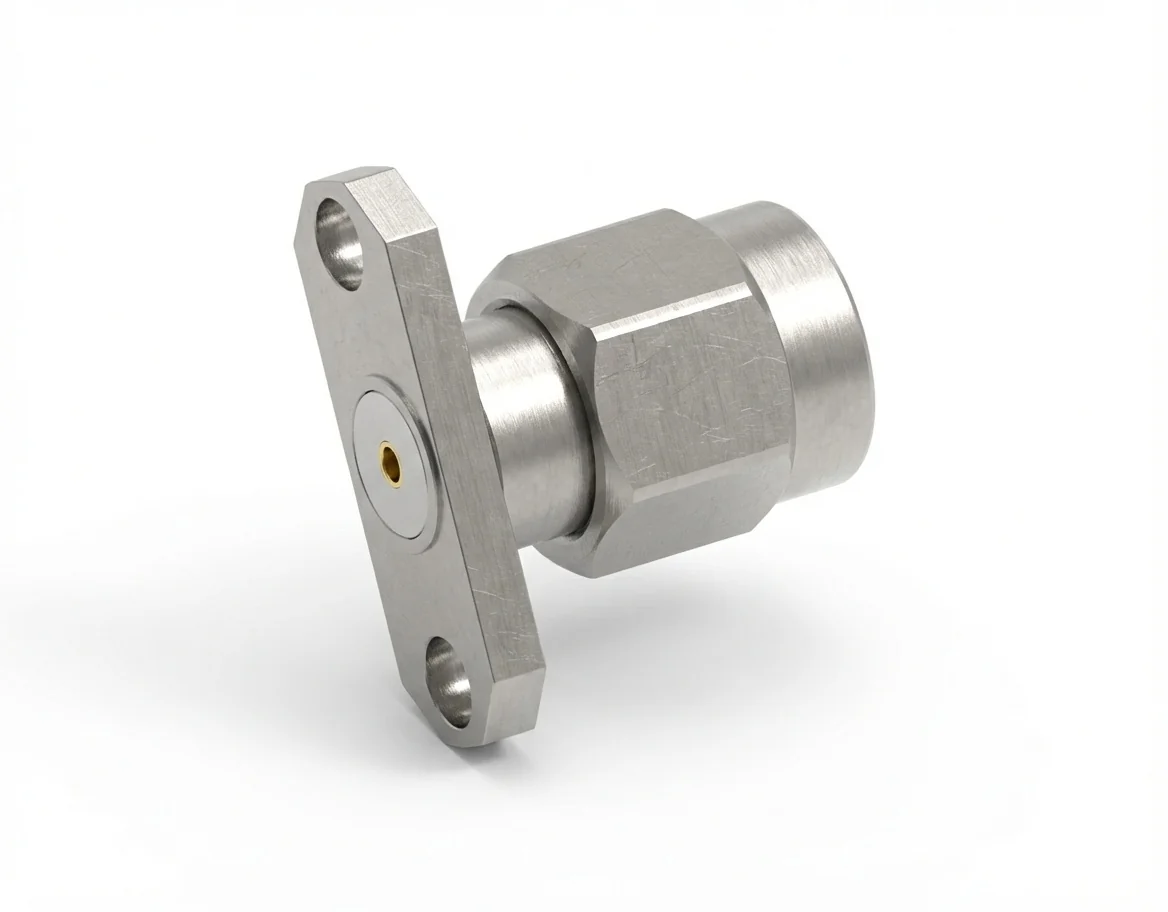

SMA Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model SMA-JFD24

The SMA male 2-hole flange mount RF connector with a 0.9 mm pin and 12.22 mm hole spacing provides broadband precision and mechanical stability for analyzers and calibration modules. Its field-replaceable mechanism enables repeated use without compromising signal performance.

Electrical Response and Frequency Range

Offering 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-JFD24 connector guarantees broadband accuracy and low signal distortion up to 18 GHz. Explore more in our SMA connector series.

Material Durability and Compliance

Crafted from stainless steel with gold-plated beryllium copper contacts, this connector provides corrosion protection and high electrical reliability. Fully REACH and RoHS compliant. Check related designs in the flange-mount connector range.

Mechanical Mounting and Integration

The 2-hole flange mount structure (12.22 mm spacing) ensures compact integration and repeatable mechanical alignment. See our RF connector catalog for more compatible models.

Mirror Female Connector

Use with the SMA female 2-hole flange mount RF connector – Model SMA-KFD24 for balanced impedance and low-loss broadband performance.
