SMA Male 2-Hole Flange Mount RF Connector – Field Replaceable, 9mm Hole Spacing, 0.9mm Pin Diameter

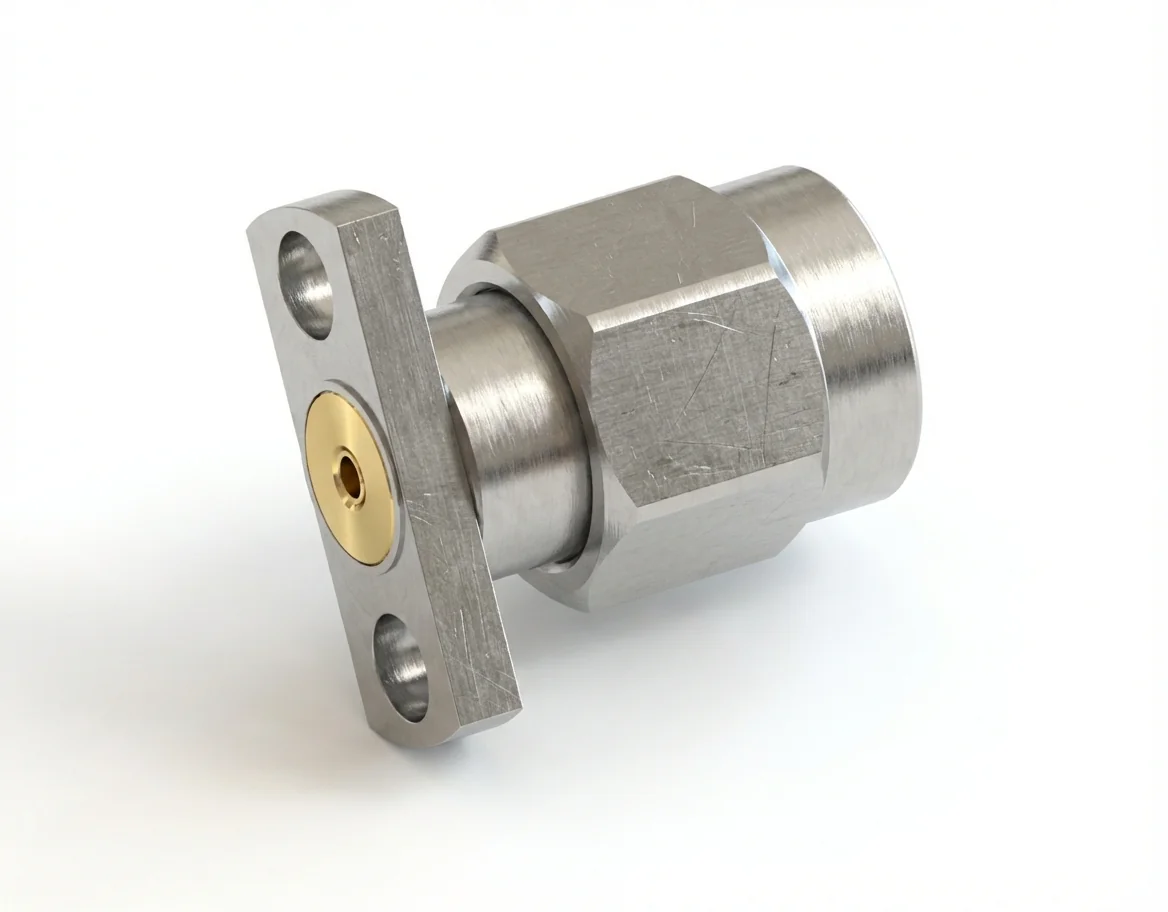

SMA Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model SMA-JFD36

The SMA male 2-hole flange mount RF connector with a 0.9 mm pin and 9 mm hole spacing combines high-frequency stability with mechanical accuracy for portable test systems and calibration modules. The field-replaceable configuration ensures serviceability without loss of electrical performance.

Electrical Response and Frequency Control

Operating at 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-JFD36 connector delivers accurate broadband response up to 18 GHz. See related precision parts in our SMA connector catalog.

Material Composition and Environmental Compliance

Constructed from corrosion-resistant stainless steel and gold-plated beryllium copper contacts, this connector provides excellent signal integrity and mechanical strength. Fully REACH and RoHS compliant. View related designs in our flange-mount connector section.

Mechanical Integration and Mount Geometry

The 2-hole flange mount spacing (9 mm) enables secure alignment in compact RF test assemblies. Browse additional SMA connectors in our RF connector catalog.

Mirror Female Connector

Use alongside the SMA female 2-hole flange mount RF connector – Model SMA-KFD36 to ensure precise broadband impedance and stable connectivity.
