SMA Male 4-Hole Flange Mount RF Connector – Field Replaceable, 5.64mm Hole Spacing, 0.23mm Pin Diameter

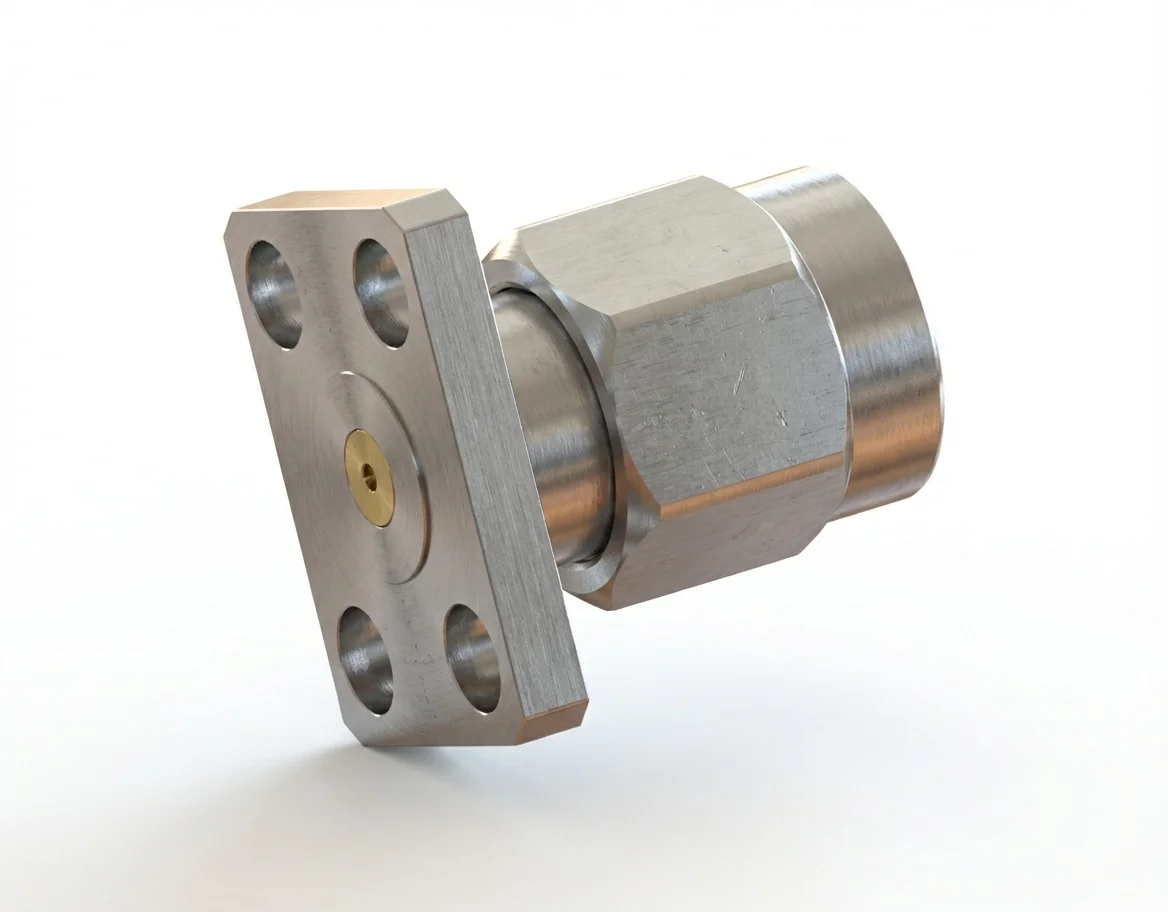

SMA Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model SMA-JFD13

The SMA male 4-hole flange mount RF connector with a 0.23 mm pin and 5.64 mm hole spacing is precision-engineered for broadband measurement modules and RF analyzers. Its field-replaceable configuration ensures repeatable impedance accuracy and easy maintenance for long-term test reliability.

Electrical Specifications and Broadband Efficiency

Operating at 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-JFD13 connector delivers stable broadband transmission up to 18 GHz with low reflection and precise signal alignment. Explore more in our SMA connector catalog.

Material Quality and Global Compliance

Manufactured from corrosion-resistant stainless steel with gold-plated beryllium copper contacts, this connector offers excellent durability and electrical conductivity. It is fully REACH and RoHS compliant. Find related solutions in our flange-mount connector range.

Mechanical Design and Mounting Precision

The 4-hole flange mount geometry (5.64 mm spacing) provides precise alignment and firm mechanical stability in dense modular test assemblies. View compatible products in our RF connector catalog.

Mirror Female Connector

Use alongside the SMA female 4-hole flange mount RF connector – Model SMA-KFD13 for balanced broadband coupling and repeatable impedance performance.
