SMA Male 4-Hole Flange Mount RF Connector – Field Replaceable, 5.64mm Hole Spacing, 0.38mm Pin Diameter

SMA Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model SMA-JFD15

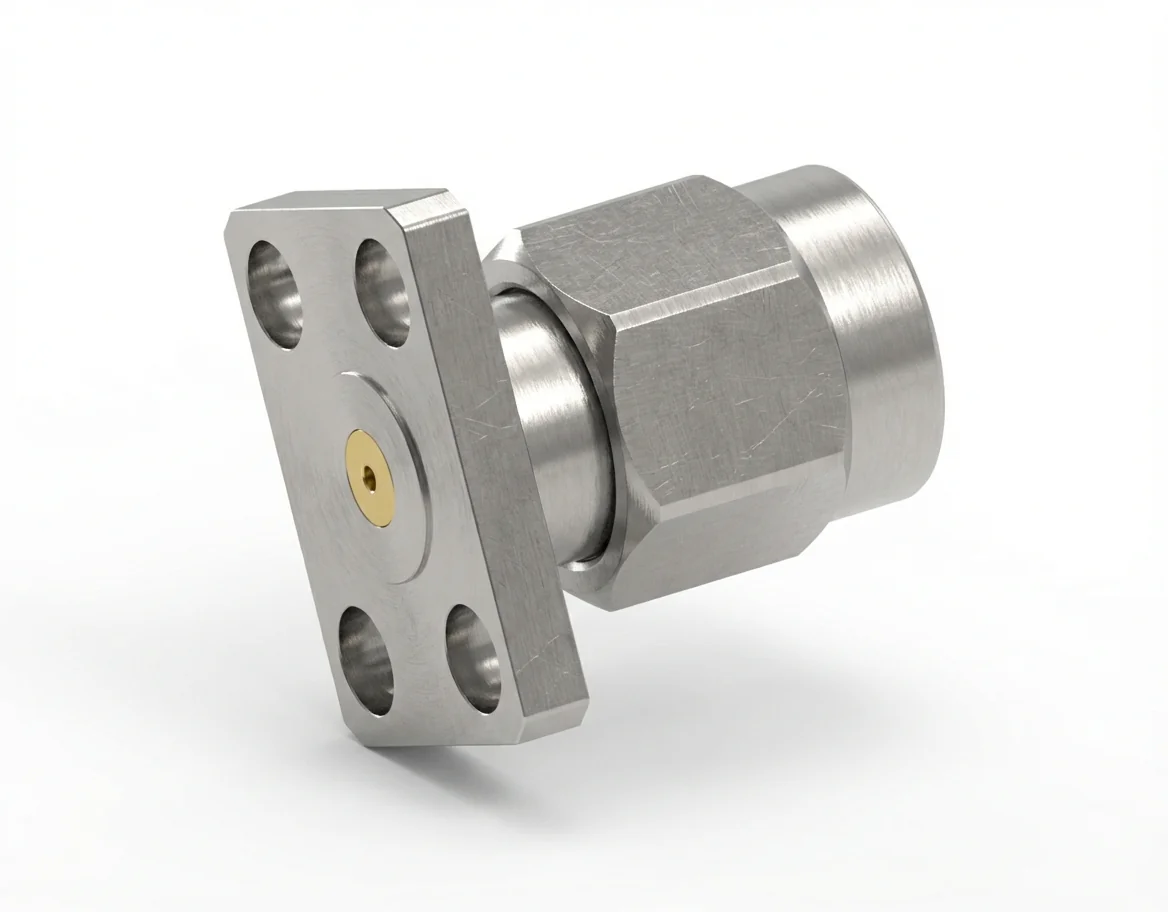

The SMA male 4-hole flange mount RF connector with a 0.38 mm pin and 5.64 mm hole spacing is designed for high-density broadband assemblies and RF calibration instruments. Its field-replaceable design supports frequent disconnection without compromising electrical performance.

Electrical Characteristics and Frequency Control

Rated at 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-JFD15 connector ensures reliable low-loss performance up to 18 GHz with excellent return-loss behavior. Discover more in our SMA connector catalog.

Material Structure and Environmental Compliance

Made from stainless steel with gold-plated beryllium copper contacts, this connector provides superior mechanical strength and conductivity. It complies with REACH and RoHS standards. See our flange-mount connector range for matching items.

Mechanical Design and Mount Geometry

The 4-hole flange mount configuration (5.64 mm spacing) offers precise mounting and solid stability for test and measurement platforms. Check out more SMA designs in our RF connector catalog.

Mirror Female Connector

Use with the SMA female 4-hole flange mount RF connector – Model SMA-KFD15 to maintain impedance integrity and broadband reliability.
