SMA Male 4-Hole Flange Mount RF Connector – Field Replaceable, 8.64mm Hole Spacing, 0.51mm Pin Diameter

SMA Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model SMA-JFD5

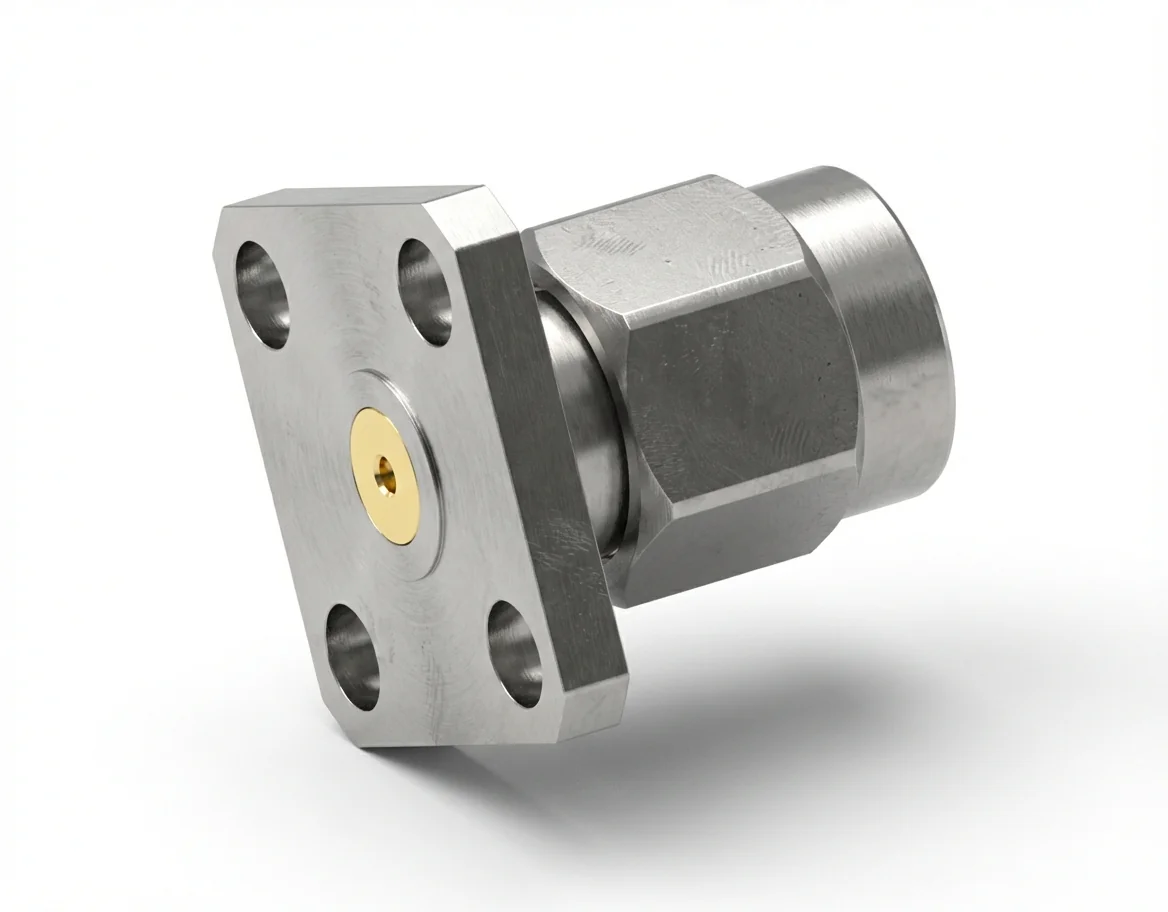

The SMA male 4-hole flange mount RF connector with a 0.51 mm pin and 8.64 mm hole spacing ensures broadband reliability for calibration instruments, analyzers, and high-frequency modules. Its field-replaceable assembly facilitates easy reconfiguration and consistent impedance control.

Electrical Specifications and Signal Integrity

Delivering 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-JFD5 connector offers stable performance up to 18 GHz, minimizing signal distortion and reflection. Check similar precision components in our SMA connector series.

Material Quality and Compliance Standards

Made of stainless steel with gold-plated beryllium copper contacts, this connector delivers excellent durability, low contact resistance, and corrosion resistance. Fully REACH and RoHS compliant, it meets global industry standards. Browse additional flange-mount connectors for matching configurations.

Mechanical Design and Mounting Geometry

The 4-hole flange mount structure (8.64 mm spacing) ensures precise alignment and strong attachment for repeatable use in compact RF modules. Discover our RF connector catalog for compatible field-replaceable models.

Mirror Female Connector

Use alongside the SMA female 4-hole flange mount RF connector – Model SMA-KFD5 to achieve balanced impedance and repeatable broadband connection accuracy.
