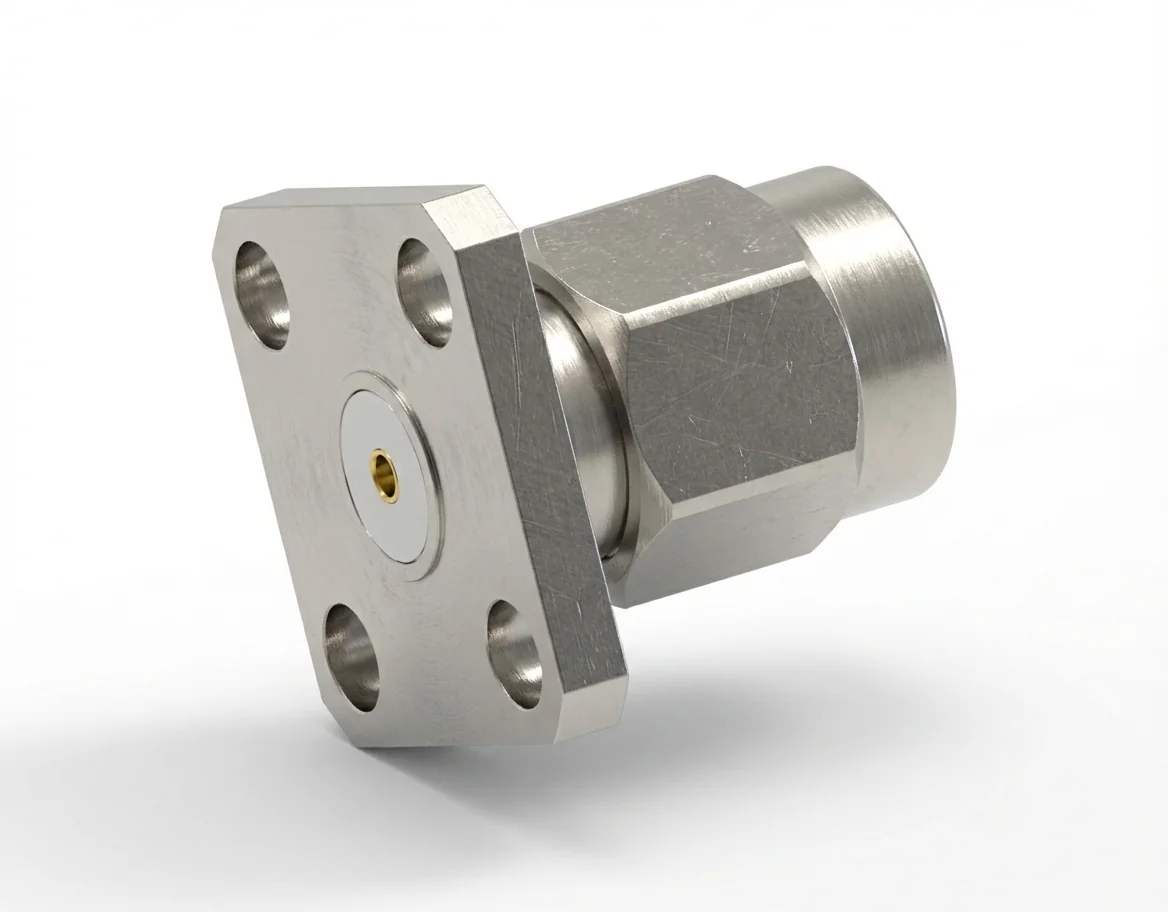

SMA Male 4-Hole Flange Mount RF Connector – Field Replaceable, 8.64mm Hole Spacing, 0.9mm Pin Diameter

SMA Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model SMA-JFD6

The SMA male 4-hole flange mount RF connector with a 0.9 mm pin and 8.64 mm hole spacing ensures stable high-frequency performance for broadband calibration systems, analyzers, and instrumentation. Its field-replaceable mechanism simplifies maintenance and guarantees repeatable impedance matching for precision test environments.

Electrical Performance and Signal Consistency

With 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-JFD6 connector delivers superior return loss and broadband stability up to 18 GHz. It is ideal for network analyzers and test-grade assemblies. Learn more in our SMA connector series.

Material Construction and Compliance

Manufactured from stainless steel with gold-plated beryllium copper contacts, this connector ensures high conductivity, corrosion resistance, and durability. All components are REACH and RoHS compliant. See the flange-mount connector lineup for compatible parts.

Mechanical Stability and Mounting Geometry

The 4-hole flange mount layout (8.64 mm spacing) guarantees accurate alignment and robust mechanical retention during repeated connections. Explore our RF connector catalog for related models.

Mirror Female Connector

Use with the SMA female 4-hole flange mount RF connector – Model SMA-KFD6 for consistent impedance and broadband coupling.
