SMA Male Straight RF Connector – Fits CFP520 Coaxial Cable

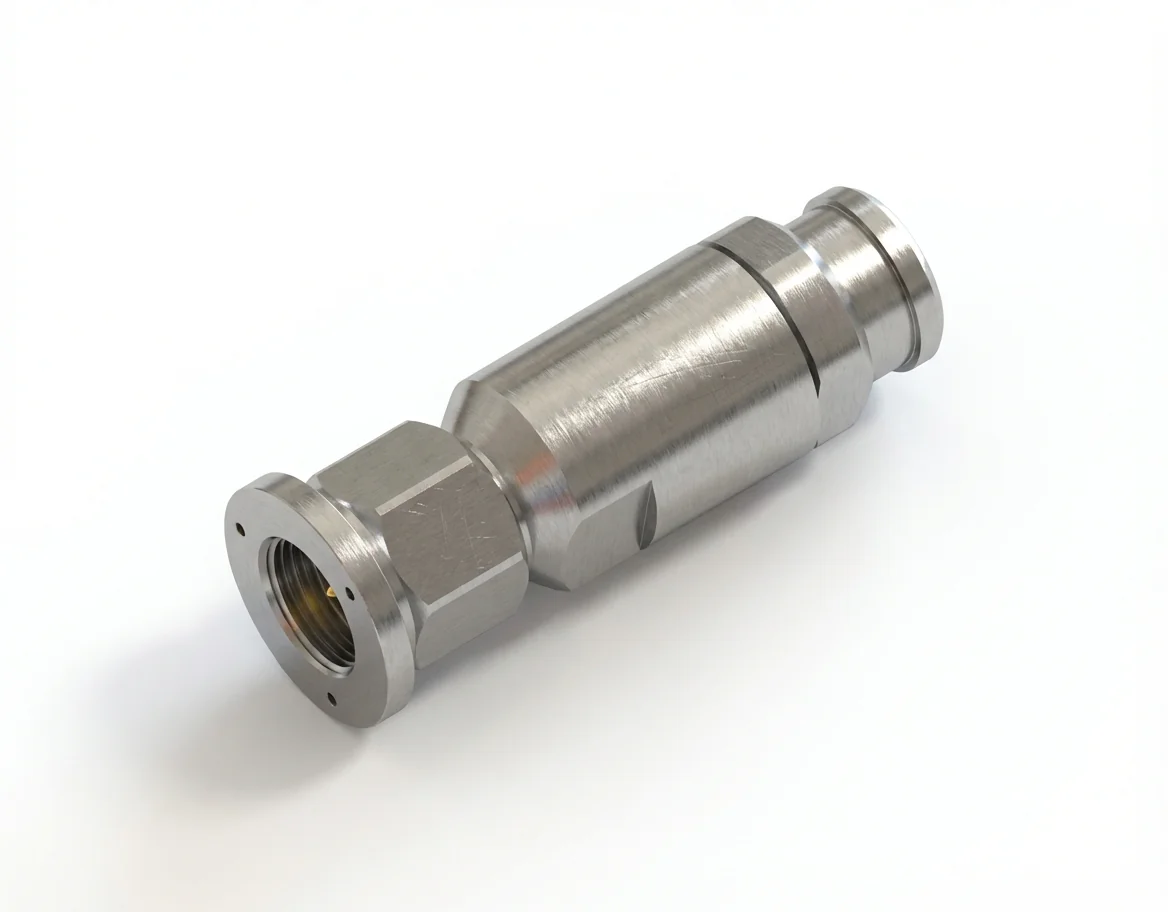

SMA Male Straight RF Connector for CFP520 Cable – Model SMA-JCFP520-2

The SMA male straight cable-mount RF connector, model SMA-JCFP520-2, is optimized for broadband power handling and phase stability when paired with the CFP520 low-loss coaxial cable. Operating from DC to 18 GHz with a 50 Ω impedance, VSWR ≤ 1.12, and insertion loss ≤ 0.06 √f dB, it ensures reliable amplitude and phase linearity for production test and industrial RF applications. Explore compatible interfaces in the SMA connector family.

Stable Broadband Transmission and Low Reflection

The SMA-JCFP520-2 connector provides consistent impedance control, low reflection, and repeatable return-loss behavior, making it ideal for broadband microwave systems and industrial test assemblies.

Durable Construction and Electrical Precision

Precision-machined from passivated stainless steel and featuring a gold-plated beryllium-copper (BeCu) center contact, the connector offers mechanical robustness, stable conductivity, and long operational life under repeated mating cycles. Additional high-performance connectors can be found in RF connectors.

Reliable Termination and Environmental Compliance

The solder-mount termination ensures secure outer-conductor bonding and accurate dielectric alignment, minimizing signal drift and maintaining phase stability during mechanical or thermal variation. Fully RoHS and REACH compliant, the SMA-JCFP520-2 meets the highest standards for reliability and environmental safety. Related termination styles are available in cable-mount connectors.

Optimized Integration with CFP520 Coaxial Cable

Pair the SMA-JCFP520-2 connector with the CFP520 low-loss coaxial cable to achieve stable phase response, low attenuation, and consistent impedance matching across broadband microwave test environments.
