SMA Male Straight RF Connector – Fits CFT360 Coaxial Cable

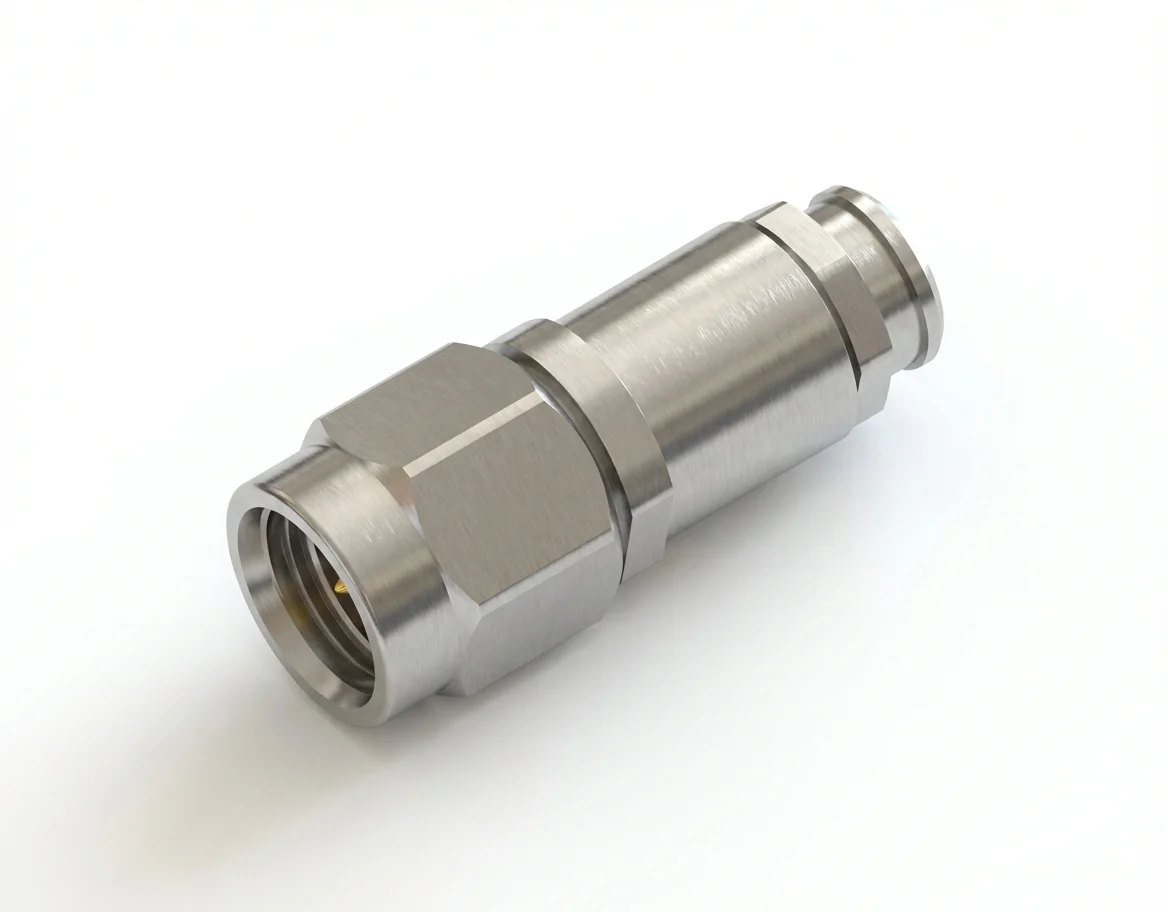

SMA Male Straight RF Connector for CFT360 Cable – Model SMA-JCFT360-1

The SMA male straight cable-mount RF connector, model SMA-JCFT360-1, is designed for low-loss, phase-stable signal transmission when paired with the CFT360 coaxial cable. Operating from DC to 18 GHz with a 50 Ω impedance, VSWR ≤ 1.12, and insertion loss ≤ 0.06 √f dB, it provides broadband linearity and precise impedance control for laboratory test benches and calibration systems. Explore compatible models in the SMA connector family.

Broadband Linearity and Electrical Accuracy

The SMA-JCFT360-1 offers excellent impedance matching and low reflection across broadband frequencies, making it ideal for metrology-grade testing, VNA calibration, and precision measurement applications.

High-Quality Materials and Long-Term Reliability

Machined from passivated stainless steel and fitted with a gold-plated beryllium-copper (BeCu) center contact, the SMA-JCFT360-1 connector ensures mechanical durability, corrosion resistance, and consistent electrical contact integrity over repeated mating cycles. See additional high-frequency connectors in RF connectors.

Stable Solder Termination and Mechanical Support

The solder-type cable-mount termination provides secure strain-relief and precise dielectric centering, maintaining phase accuracy and amplitude consistency during repeated use. Explore more robust configurations under cable-mount connectors.

Optimized for CFT360 Coaxial Cable Integration

For repeatable impedance matching and superior broadband performance, pair the SMA-JCFT360-1 connector with the CFT360 low-loss, phase-stable coaxial cable to achieve high accuracy in metrology and instrumentation systems.
