SMA Male Straight RF Connector – Fits CFT410S Coaxial Cable

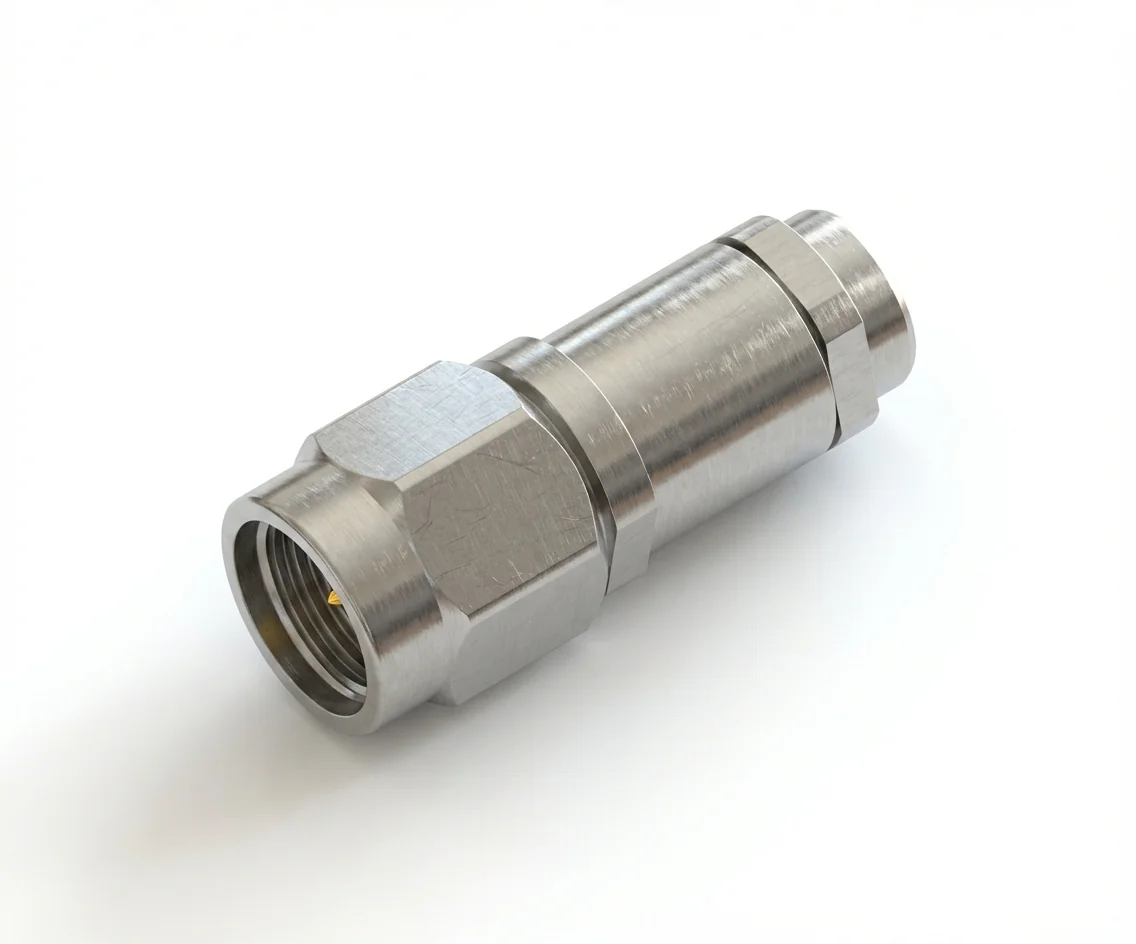

SMA Male Straight RF Connector for CFT410S Cable – Model SMA-JCFT410S-1

The SMA male straight cable-mount RF connector, model SMA-JCFT410S-1, is precision-machined for microwave interconnects using the CFT410S low-loss, phase-stable coaxial cable. With a 50 Ω impedance, DC–18 GHz frequency range, VSWR ≤ 1.12, and insertion loss ≤ 0.06 √f dB, it guarantees repeatable broadband performance and accurate impedance matching for test and measurement systems. Discover compatible designs in the SMA connector family.

High-Frequency Accuracy and Stable Impedance Control

The SMA-JCFT410S-1 connector provides low reflection, consistent phase linearity, and excellent return-loss behavior, ensuring reliable signal integrity across broadband microwave applications and calibration environments.

Durable Construction and Corrosion-Resistant Materials

Manufactured from passivated stainless steel with a gold-plated beryllium-copper (BeCu) center contact, the connector offers corrosion resistance, low contact resistance, and mechanical durability across repeated mating cycles. Additional precision RF connectors can be explored under RF connectors.

Secure Solder Termination and Environmental Compliance

The solder-mount configuration ensures precise dielectric centering and strong strain-relief, maintaining low insertion-loss deviation under vibration or thermal cycling. Fully RoHS and REACH compliant, the SMA-JCFT410S-1 guarantees both electrical reliability and environmental safety. Related mounting designs are available in cable-mount connectors.

Optimized Integration with CFT410S Coaxial Cable

When paired with the CFT410S low-loss, phase-stable coaxial cable, the SMA-JCFT410S-1 connector delivers minimal reflection, stable attenuation, and superior broadband repeatability in laboratory-grade RF measurement setups.
